The assembly profiles for the cylinder rosette are screwed in place on both
sides of the door with two short screws each.
The lock cylinder should be inserted in order to simplify the alignment.

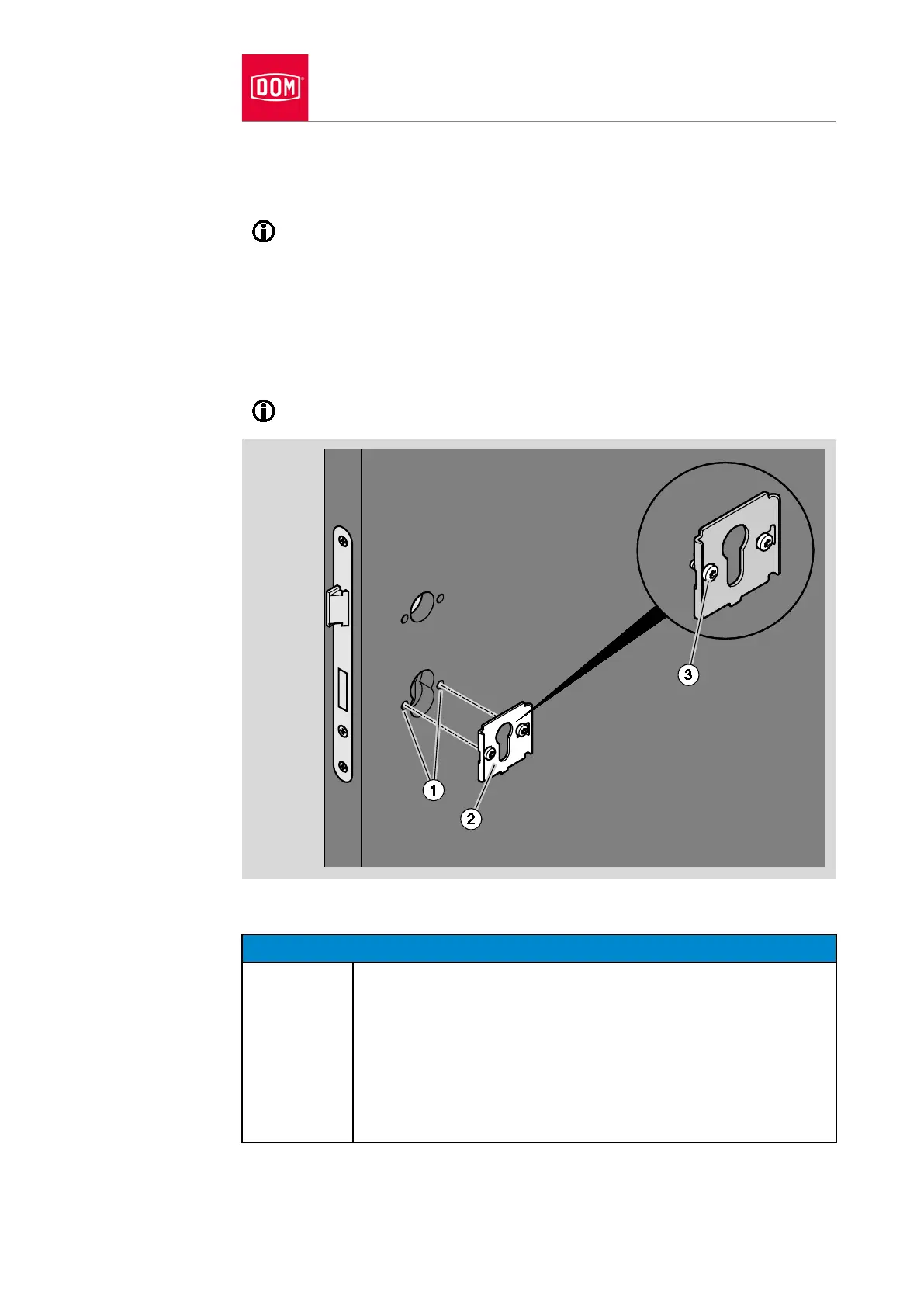

Screw the assembly profile (2) on the outside onto the door leaf with two
short screws (3) on the screw attachment points (1).
Tighten the short screws so they are hand tight.
Fit the assembly profile for the cylinder rosette on the inside in the same
way.
The lever handle rosette is not shown in the section which follows.
It is possible to damage the surface of the lever handle when
fitting the cover.
Do not use any force when installing the covers of handles.
Twist the cover round the lever handle while fitting in order
to avoid contact.
Ensure that the cover and the lever handle do not touch
when fitting the cover.
