Attaching lev
er handle on the electronic handle
The alignment of the lever handle is dependent on the alignment of the door.
The lever handle must be aligned to the left or right in line with the door
situation. The end of the lever handle must point horizontally towards the door
hinges. You should proceed as follows for electronic handles:

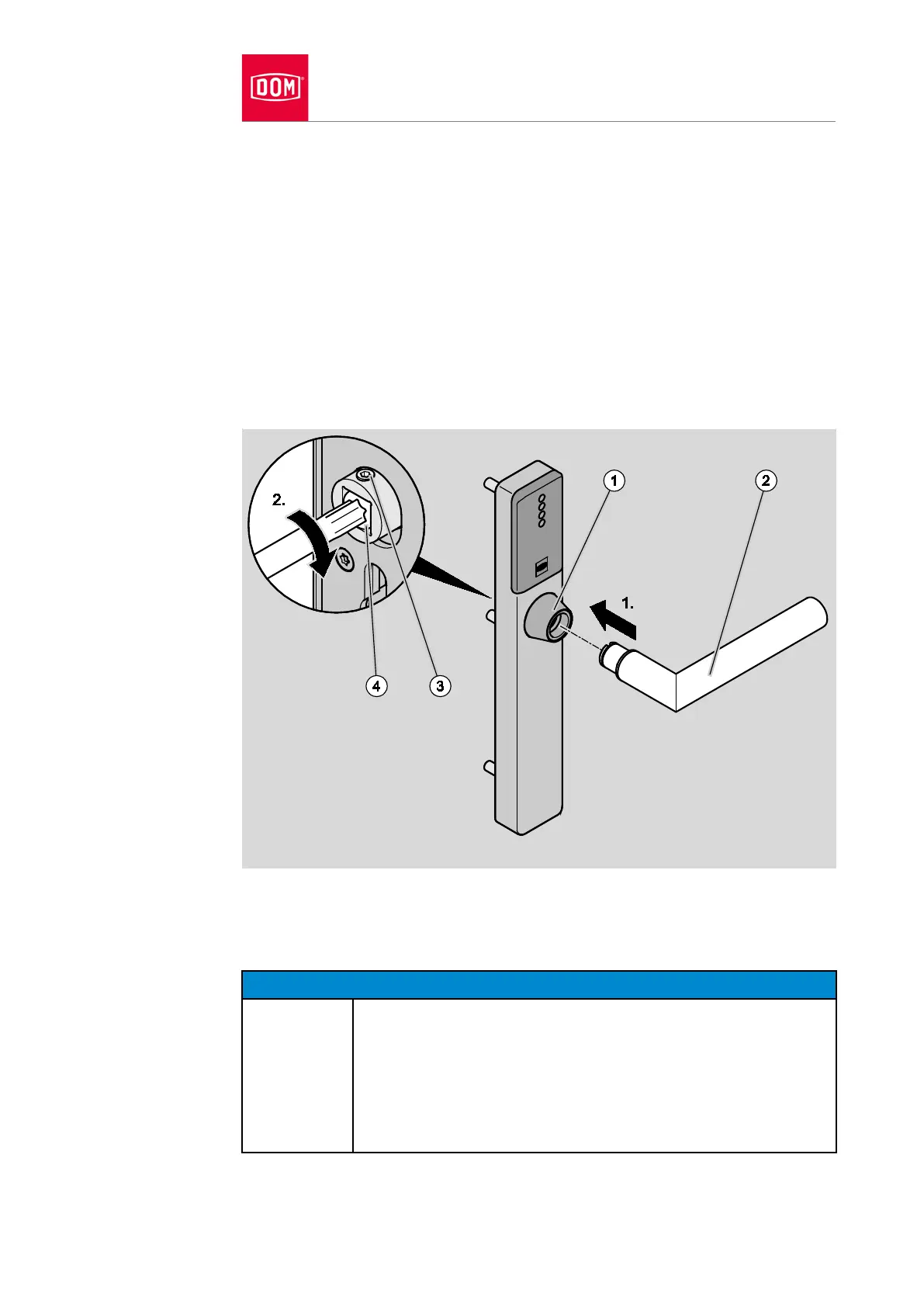

Ensure that the grub screw (3) is aligned as shown.
Insert the lever handle (2) into the lever handle bearing with the required
alignment from outside and on the outer spindle of the coupling (1).
Insert the TORX screw TX25 into the lever handle from the rear through the
coupling nut.
Tighten the TORX screw TX25 (4) on the inside of the coupling so it is
hand-tight (2.).
You can also set the horizontal alignment of the lever handle to change its
inclination. You must remove the cover of the handle for this purpose. The
removal of covers of electronic handles is described from page 237 onwards.
Malfunctions possible due to poorly aligned lever handles
Coupling can be affected if there is too great a difference
between the inclination of the outer lever handle and the
inner lever handle.
Match the inclination of the outer lever handle to the
inclination of the inner lever handle as much as possible.
