Loss of the grub screw
If you release the grub screw too much, it may fall out and get
lost.
Only release the grub screw as far as is necessary for
inserting the spindle into the coupling nut.
You require a 2 mm Allen key for loosening or tightening the grub screw.

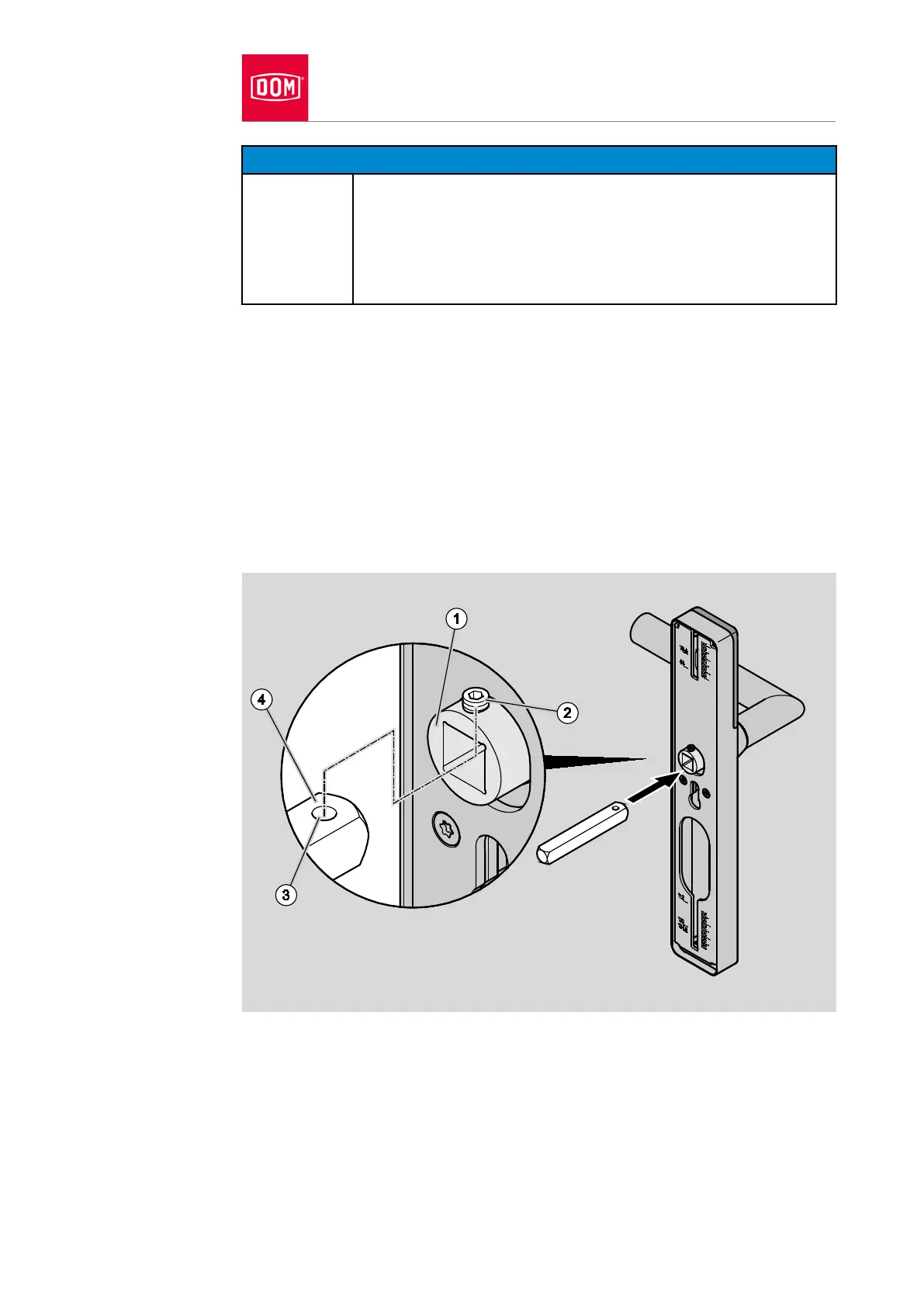

Align the spindle in such a way that the drill hole (3) is in alignment with the
grub screw (2).
Insert the spindle into the coupling nut (1).
Loosen the grub screw (2) a little if it is not possible to insert the spindle in
the coupling nut.
Push the spindle into the coupling nut until it comes to a stop.
Tighten the grub screw until it comes to a stop.
Loosen the grub screw half a turn.
Continue with the assembly of the handle as described from page 72
onwards.
