MOUNTING THE CONTROLLER

Gx-IC7

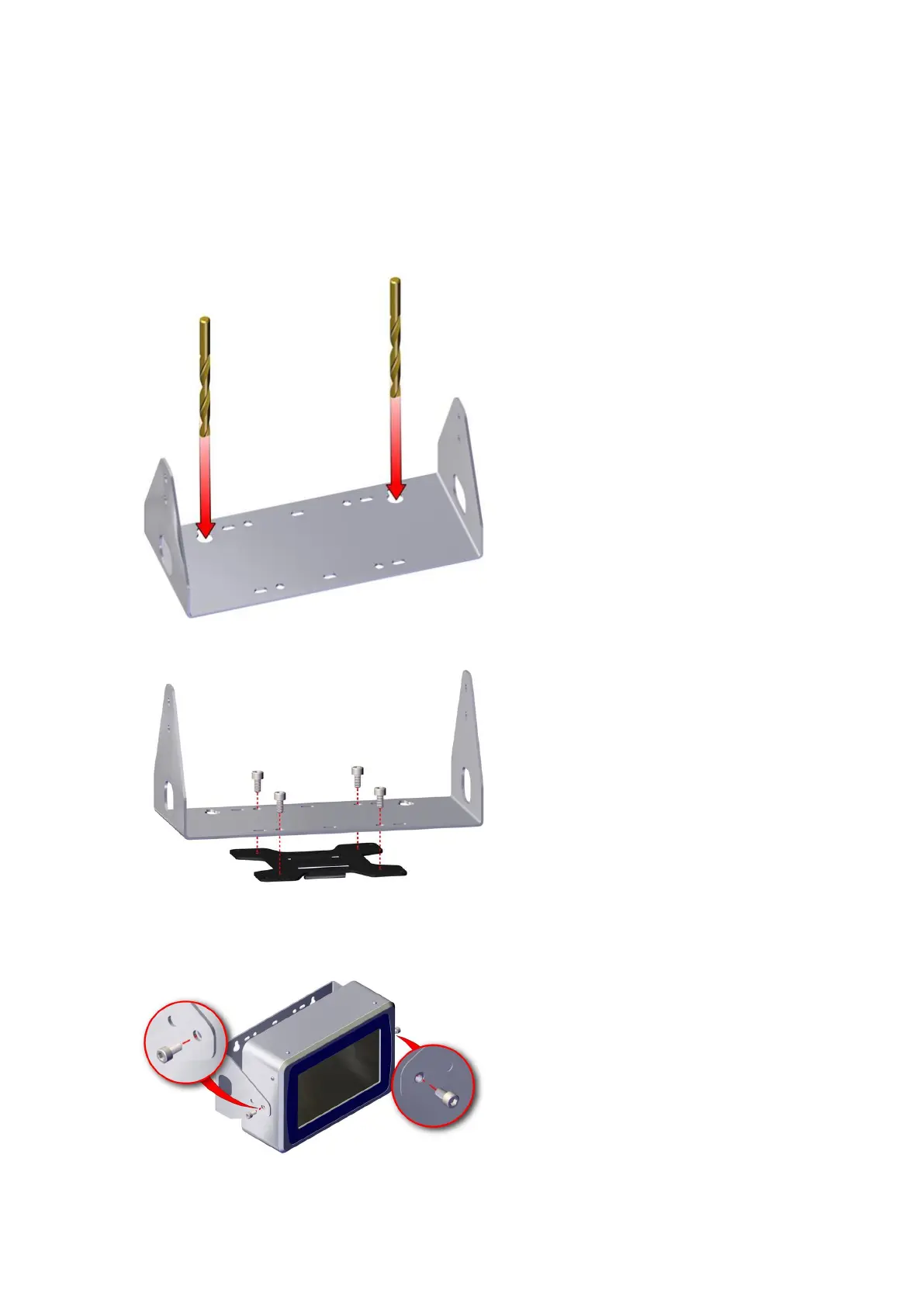

To mount the Gx-IC7 Controller:

Mount the bracket to a ﬁxed vertical or horizontal surface. The bracket can be mounted

directly to a ﬂat surface or installed on a VESA 75 mount.

Direct Installation

VESA 75 Installation

Mount the controller to the bracket.

INSTALLATION

23 EPT053091 - Issue 5 - 07 May 2021
