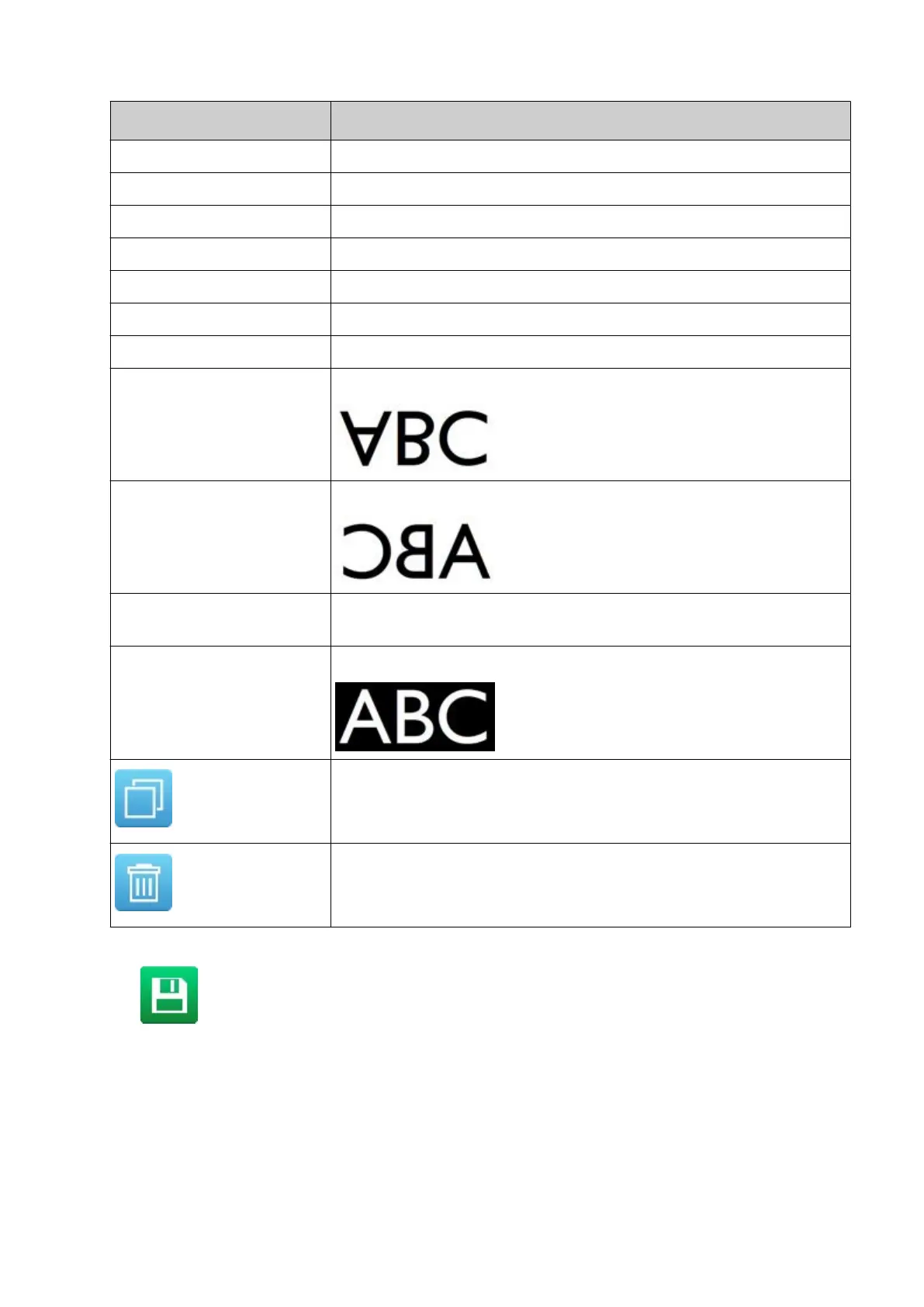

Setting Name Explanation
Name Edit the name of the element.
Source View the location of the graphic file in the controller.
Horizontal position (mm) Set the element's horizontal location in the label.
Vertical position (mm) Set the element's vertical location in the label.
Width (mm) Adjust the width of the graphic element.
Height (mm) Adjust the height of the graphic element.
Rotation Rotate the element by 0°, 90°, 180° or 270°.
Invert Flip the element vertically.
Reverse Flip the element horizontally.
Keep aspect ratio Keep the graphic element's aspect ratio when adjusting the
element's height or width.
Invert black/white Invert the printed and unprinted parts of the element.
Copy the element.
Delete the element.
9.
Select the Save icon to save the change.
End of procedure.
Variable Label Elements
Variable label elements are elements that contain variable data such as clocks, counters and
shift codes. Variable elements can be made as human readable text, or embedded within
barcodes.
