PRINT HEAD SETUP
Multi Print Head Socket Relocation
CAUTION Electrostatic sensitive components. Risk of damage to equipment.
Follow electrostatic discharge precautions when performing the following
procedure.
Wear an ESD wristband connected to ground.
Avoid wearing clothing that can build up electrostatic voltages.
There are two dierent print head types available:
• The standard print head has a socket for connection to the controller at the top.
• The multi print head has a socket connection to the controller at the front.
On a multi print head, the socket connector can be moved to the rear. This allows the print head
to be installed in areas with dierent space restrictions.
Required tools: 17mm spanner, 4mm hex key, and 2mm hex key.
To move the socket connector:

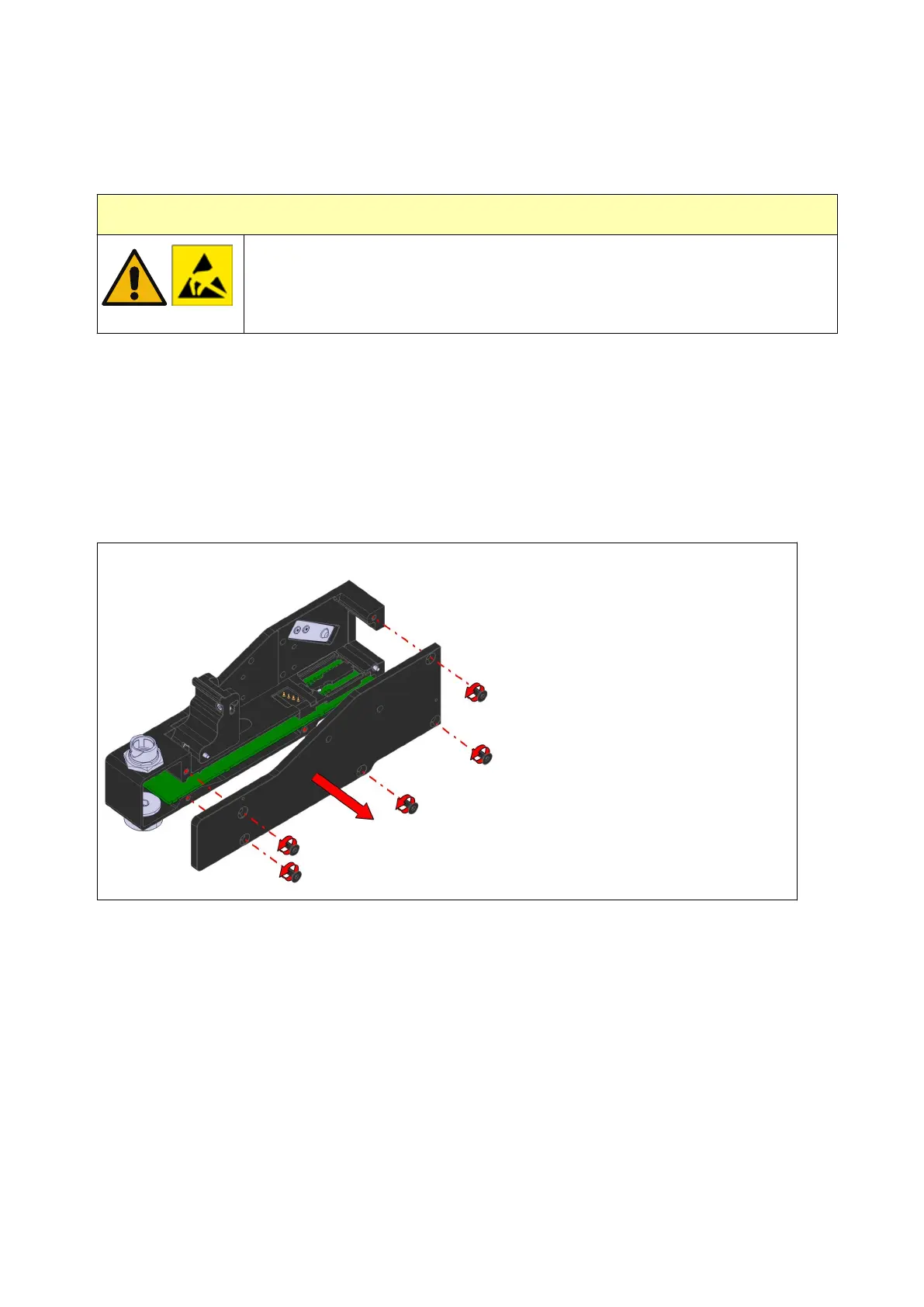

1) Remove screws and side plate.
INSTALLATION
53 EPT053091 - Issue 5 - 07 May 2021
