To define output functions, see Outputs.
Gx-IC10/Gx-OEM Output (0 V When Active)
Beacon
8 outputs are available on I/O terminal block 1 and 4 outputs are available on I/O terminal block
2. The diagram below illustrates an example of a connection between I/O terminal block 1 and a
Domino beacon assembly. The other outputs are listed see I/O Terminal Block 1 Layout (Gx-
IC10/Gx-OEM) on page 44 and see I/O Terminal Block 2 Layout (Gx-IC10/Gx-OEM) on page 46.
To define the outputs that will trigger the beacon lights, see Outputs.

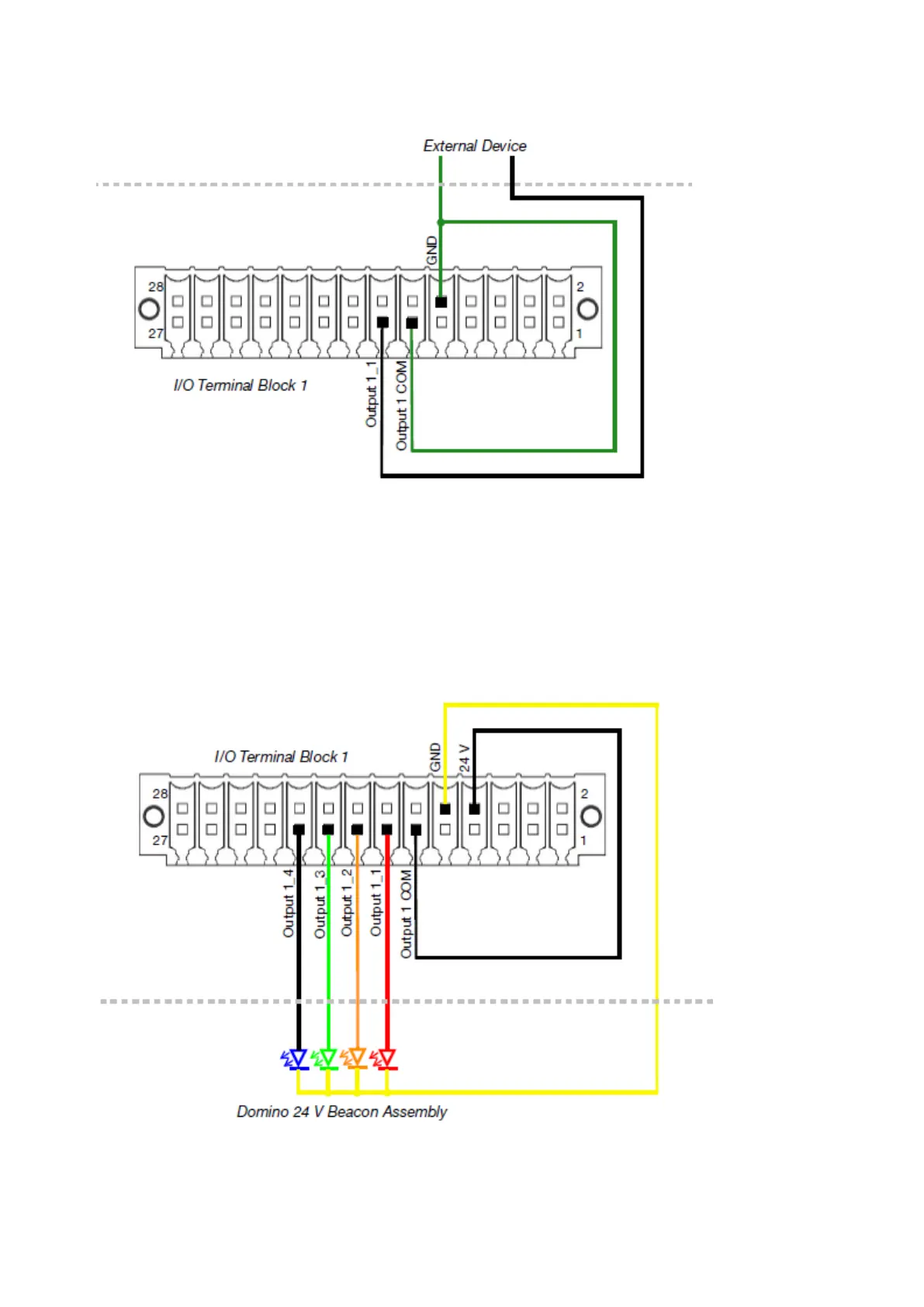

Gx-IC10/Gx-OEM Beacon Connection
INSTALLATION
EPT053091 - Issue 5 - 07 May 2021 52
