Domino Gx-Series User Manual

I/O Connection Examples (Gx-IC7)

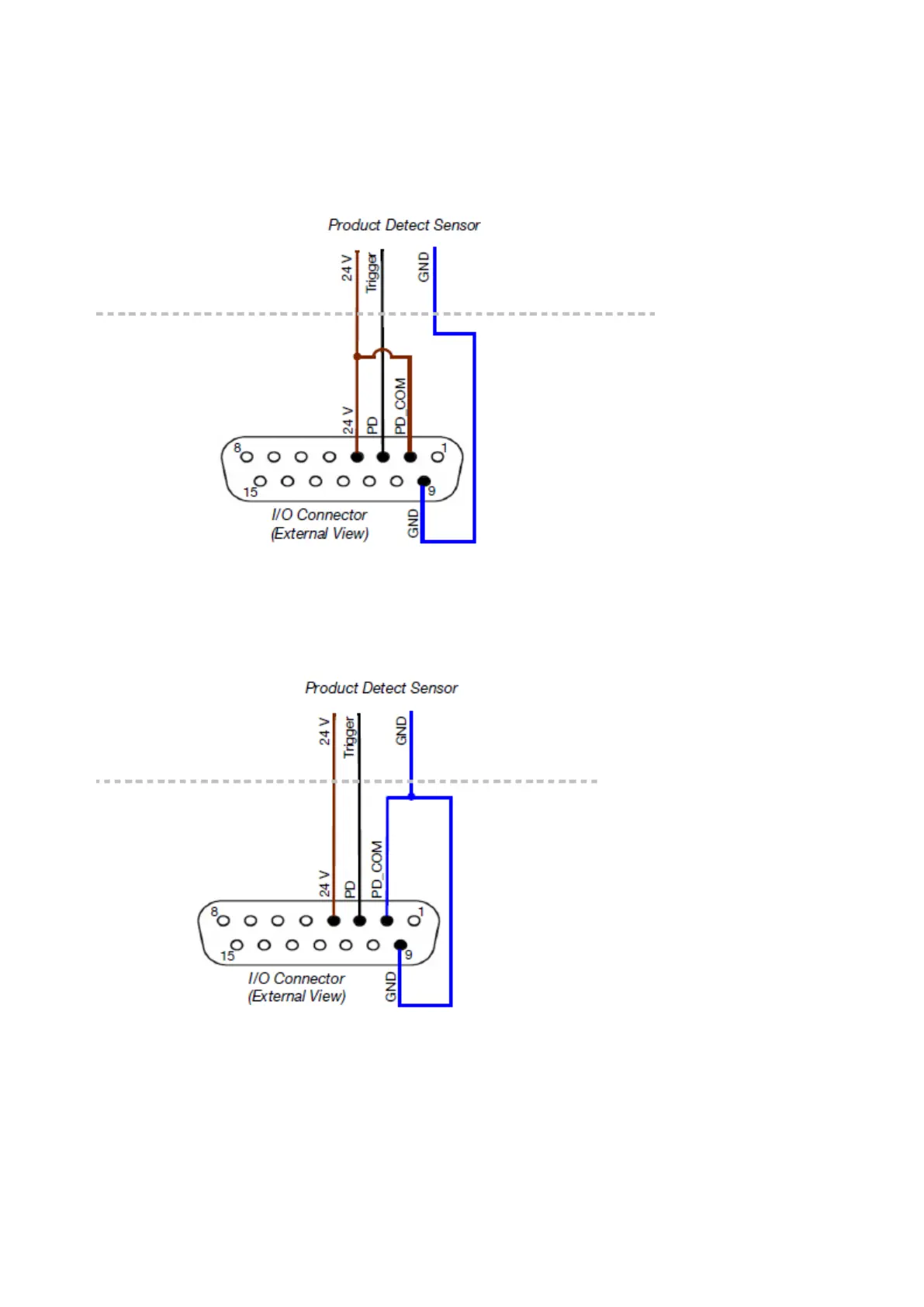

Product Detect Sensor NPN Connection
1 product detect sensor input is available on each of the I/O connectors.
Gx-IC7 Product Detect Sensor NPN Connection
Product Detect Sensor PNP Connection
1 product detect sensor input is available on each of the I/O connectors.
Gx-IC7 Product Detect Sensor PNP Connection
NPN Input
2 inputs are available on each of the I/O connectors. The diagram below illustrates the
connection to "Input 1" on one of the I/O connectors. The other inputs are listed see I/O
Connector Layout (Gx-IC7) on page 37.
INSTALLATION
39 EPT053091 - Issue 5 - 07 May 2021
