3.

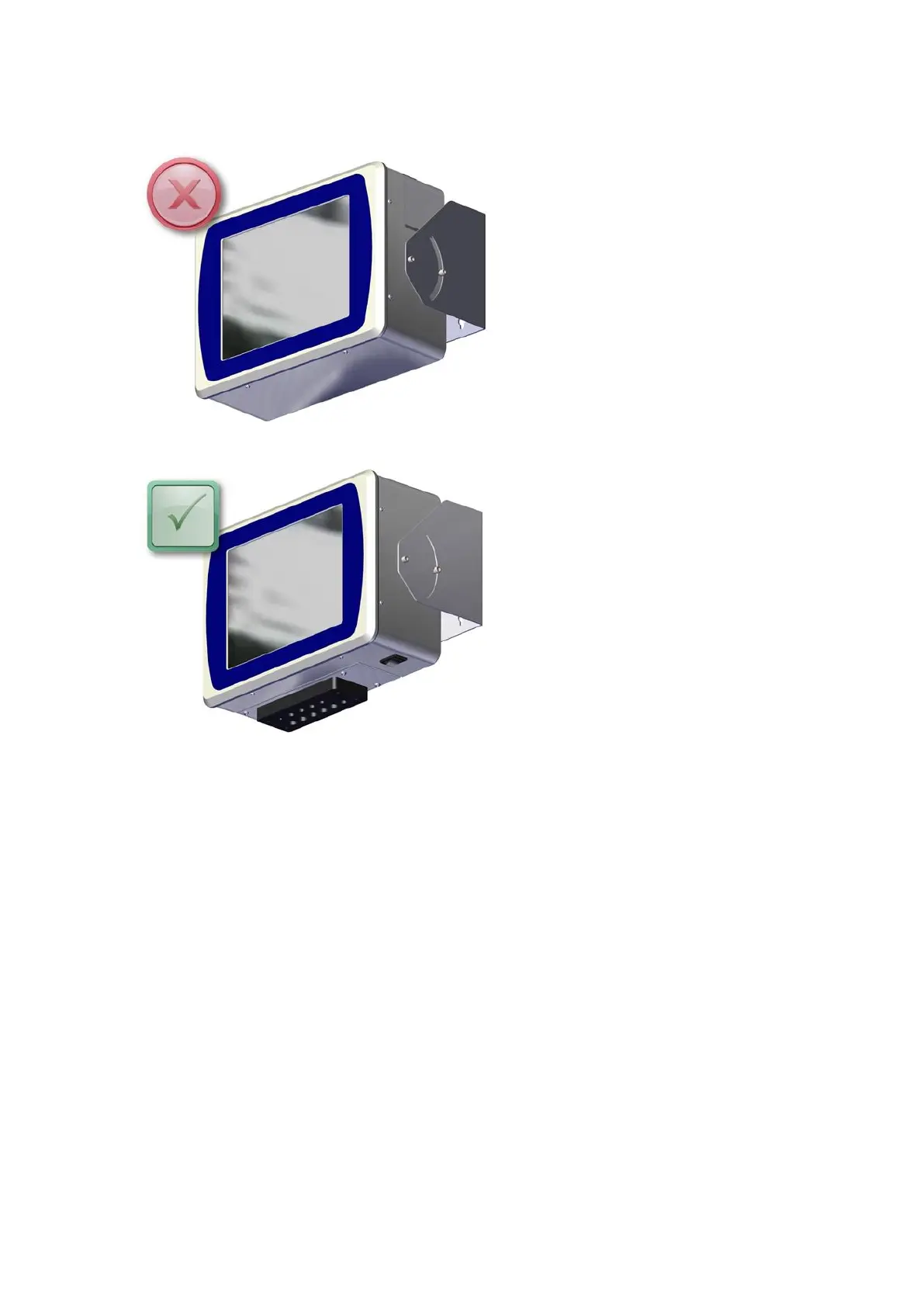

If mounting to a vertical surface, point the contr
oller's electrical connectors and power
switch downwards.
Incorrect
Correct
4.
If mounting to a horizontal surface, do not point the electr
onic connectors and power
switch upwards beyond 0°.
INST
ALLA
TION
EPT053091 - Issue 5 - 07 May 2021
28
32
34
Table of Contents
Preface to the Product Manual
3
FCC Notice
3
European EMC Statement
3
Software Licensing
4
Software Credits
4
Table of Contents
5
Part 1 System Description
15
Introduction
15
General
15
Description
15
Controllers
16
Gx-IC7 Controller
16
Gx-IC10 Controller
17
Gx-OEM Controller
17
Print Heads
18
Standard Print Head
18
Multi Print Head
18
Print Head Configurations
19
Print Head Status Light
20
Specification
22
Controllers
22
Controller External Connections
23
Controller Electrical Supply
24
Environment
24
Pre-Installed Fonts
24
Print Heads
25
User Interface
26
Part 2 Installation
27
Unpacking
27
Controller and Print Head Location
27
Mounting the Controller
28
Gx-IC7
28
Gx-IC10
31
Electrical Supply
34
Controller Electrical Connections
35
Gx-IC7
35
Gx-IC10
36
Gx-OEM
39
Connector Layouts
40
Power Supply Input Connector Layout (Gx-OEM)
41
Encoder Connector Layout
41
Print Head Connector Layout
42
I/O Connector Layout (Gx-IC7)
42
I/O Connection Examples (Gx-IC7)
44
I/O Terminal Block Wire Termination (Gx-Ic10/Gx-OEM)
49
I/O Terminal Block 1 Layout (Gx-Ic10/Gx-OEM)
49
I/O Terminal Block 2 Layout (Gx-Ic10/Gx-OEM)
51
I/O Connection Examples (Gx-Ic10/Gx-OEM)
52
Print Head Setup
58
Multi Print Head Socket Relocation
58
Combining Print Heads
62
Print Head Mounting
66
Print Head Orientation
67
Print Head Lever Kit Installation
68
Print Head Grounding
69
Print Head Group Assignment
69
Print Group Setup
70
Ink Type Restriction Setup
74
Ink Cartridge Installation
75
External Shaft Encoder Mode Setup
76
External Shaft Encoder Setup/Calibration
79
Internal Encoder Setup
80
Photocell Encoder Setup
81
Photocell Encoder Setup
82
Print Trigger Setup
84
External Print Trigger Setup
84
Internal Print Trigger Setup
86
I/O Function Assignment
87
Inputs
87
Outputs
89
External Label Selection
90
Enable External Label Selection
90
Setup Inputs for External Label Selection
90
Micro Purge Setup
91
Enable Cyclic Mode
91
Enable Intelligent Mode
92
Disable Micro Purge
92
Network Setup
93
Ethernet
93
PC to Controller Connection (Web Browser)
93
Wi-Fi
94
Protocol Settings
95
SMB (Server Message Block)
96
Simple EDC
98
Promotional Coding
100
Language and Keyboard Setup
104
Date and Time
104
Manual Setup
105
NTP Setup
105
Label Editor Default Setup
106
Element Property Defaults
106
Content Property Defaults
106
Label Defaults
106
Alert Configuration
109
General Settings
110
Configuration Code Activation
110
Spares and Accessories
111
Part 3 Operation
112
Start up
112
Assign Labels to Print Groups
114
From the Home Screen
115
From the Label Manager
115
Start Printing
116
Stop Printing
116
Shut down
117
Quickstep Interface
120
Home Screen
120
Setup Screen
121
Label Creator Screen
123
Printer Information Screens
124
Connections Screen
124
Consumables Screen
125
Overall Equipment Efficiency Screen
126
Live Status Screen
128
Ink Level Icons
128
Essential Security Mode
129
Enable Essential Security Mode
129
Log in
129
Log out
130
Remote Security Mode
131
Enable Remote Security Mode
131
Log in
131
Log out
132
Advanced Security
132
Enable Advanced Security Mode
132
Log in
132
Log out
133
Enable Auto Log-In
134
Disable Auto Log-In
134
Change Current User Password
134
Reset Forgotten Password
134
Set Password Policy
135
Add New User
135
Change User Settings
136
Delete User
137
Add New User Group
137
Delete User Group
138
Change User Group Settings Access
138
Audit Log
138
Enable Audit Log
138
Export Audit Log
139
Label Creator
139
Create New Label
139
Label Settings
139
Label Elements
142
Variable Label Elements
147
Example of Barcode/Mrc with Multiple Linked Elements
158
Manage Label Elements
161
Preview Label
162
Open and Edit a Label
162
Save Label
165
Reset Counters
166
Counter Settings
166
Counter Start Value
166
Counter Increment Types
167
Counter Reset Types
170
Counter Output Properties
171
Variable Text Settings
171
Update Using Variable Text Settings Menu
171
Update Using Prompt at Print
172
Label Store and File Management
172
Select Existing Label
172
File Manager
173
Import Label
173
Export Label
174
Delete Label
175
Import Image
175
Import Font
176
Printer Diagnostics
177
Statistics
177
Statuses, Alerts and Fault Finding
178
Statuses
178
Alerts
178
Print Quality Faults
190
Part 4 Maintenance & Troubleshooting
191
Ink Cartridge Replacement
191
Purge Blocked Ink Cartridge Nozzles
193
Clean Ink Cartridge Nozzles
193
Software Backup, Restore and Upgrade
194
Backup
194
Restore
195
Upgrade
196
