PLC Input (24 V from PLC)
11 inputs are available on I/O terminal block 1 and 4 inputs are available on I/O terminal block 2.

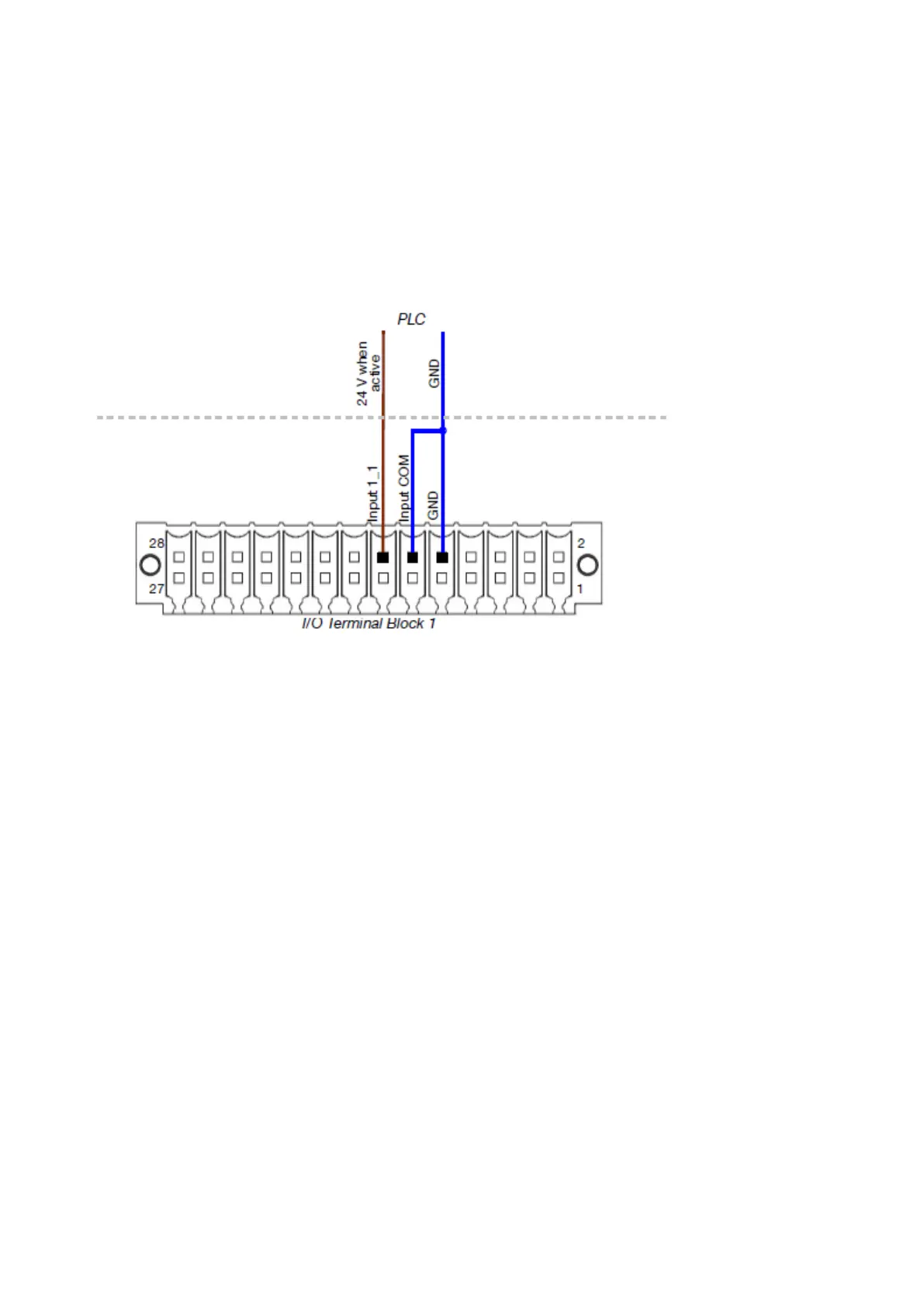

The diagram below illustrates the connection to "Input 1_1" on I/O terminal block 1. The other
inputs are listed see I/O Terminal Block 1 Layout (Gx-IC10/Gx-OEM) on page 44 and see I/O
Terminal Block 2 Layout (Gx-IC10/Gx-OEM) on page 46.
The connection depends on the PLC output type. The diagram below illustrates a 24 V input from
the PLC.
To define input functions, see I/O Function Assignment on page 82.
Gx-IC10/Gx-OEM PLC Input (24 V from PLC)
PLC Input (0 V from PLC)
11 inputs are available on I/O terminal block 1 and 4 inputs are available on I/O terminal block 2.
The diagram below illustrates the connection to "Input 1_1" on I/O terminal block 1. The other
inputs are listed on see I/O Terminal Block 1 Layout (Gx-IC10/Gx-OEM) on page 44 and see I/O
Terminal Block 2 Layout (Gx-IC10/Gx-OEM) on page 46.
The connection depends on the PLC's output type. The diagram below illustrates a 0 V input
from the PLC.
INSTALLATION
EPT053091 - Issue 5 - 07 May 2021 50
