Doosan DVF5000 - Preparation Before Machine Arrival

8
1. Preparation Before Machine Shipping
※ Main Values
Machine Weight 7.5 ton
Maximum weight of workpiece 0.4 ton
Bearing of soil 5 Ton/㎡
※ Tolerance
Flatness ±10mm
Pitch of Holes
Single ±10mm
Accumulated ±20mm
Dimension of Holes ±10mm
※ Foundation Material
Concrete
Strength 240kg/㎠
Quantity 1.44㎥ (3.5Ton)
※

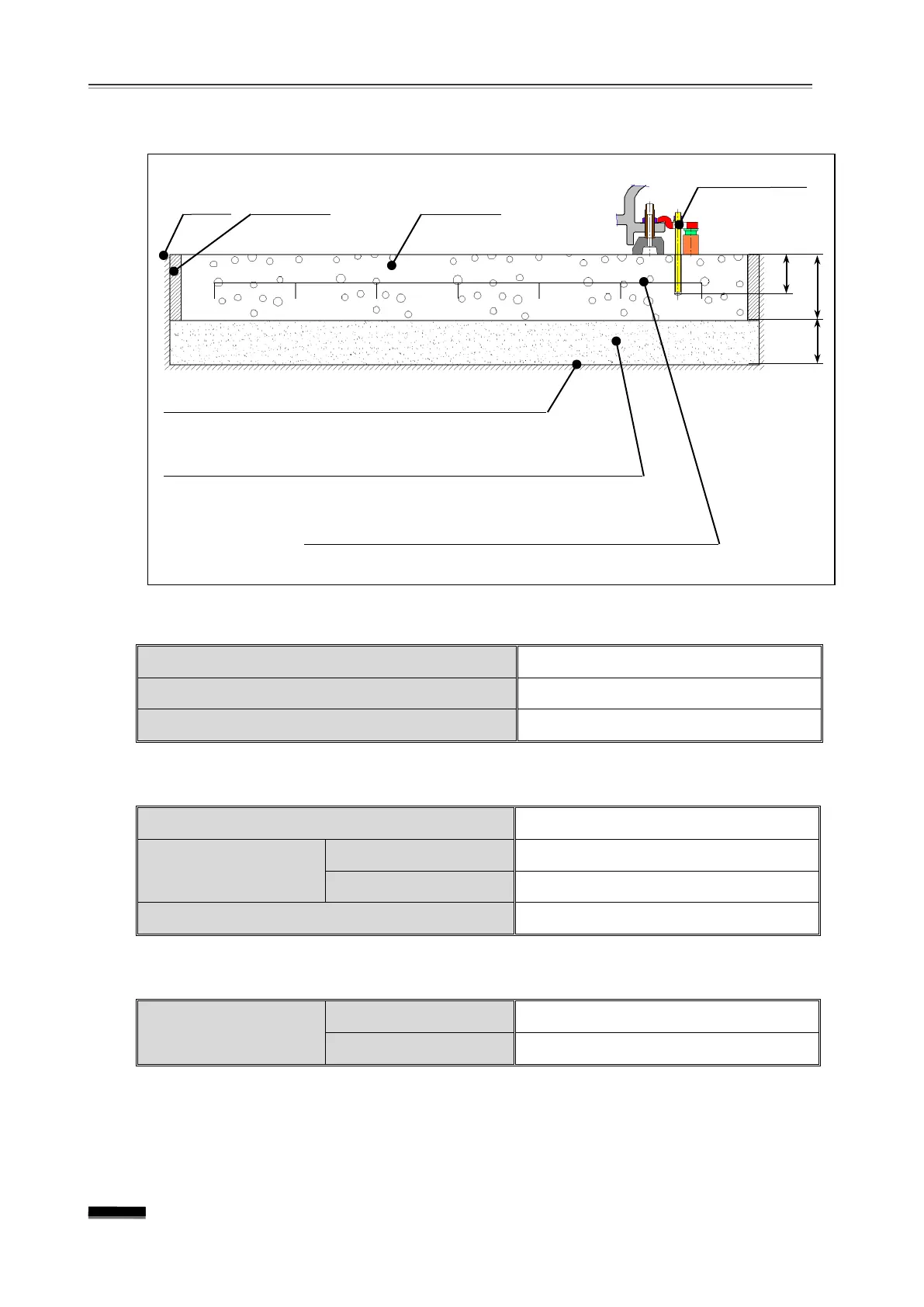

Detailed Drawings
FL=0
Styrofoam
Concrete
Side Anchor
150
200
300
Reinforces the ground by driving files if necessary
Filing with quality rubbles and gravels and fully tamped down
Reinforce concrete with diagonally placed steel bars
