Doosan DVF5000 - Machine Power-up; Oil Cooler Connection

22
3. Machine Anchoring Operation
6) Setting up
the chemical anchor

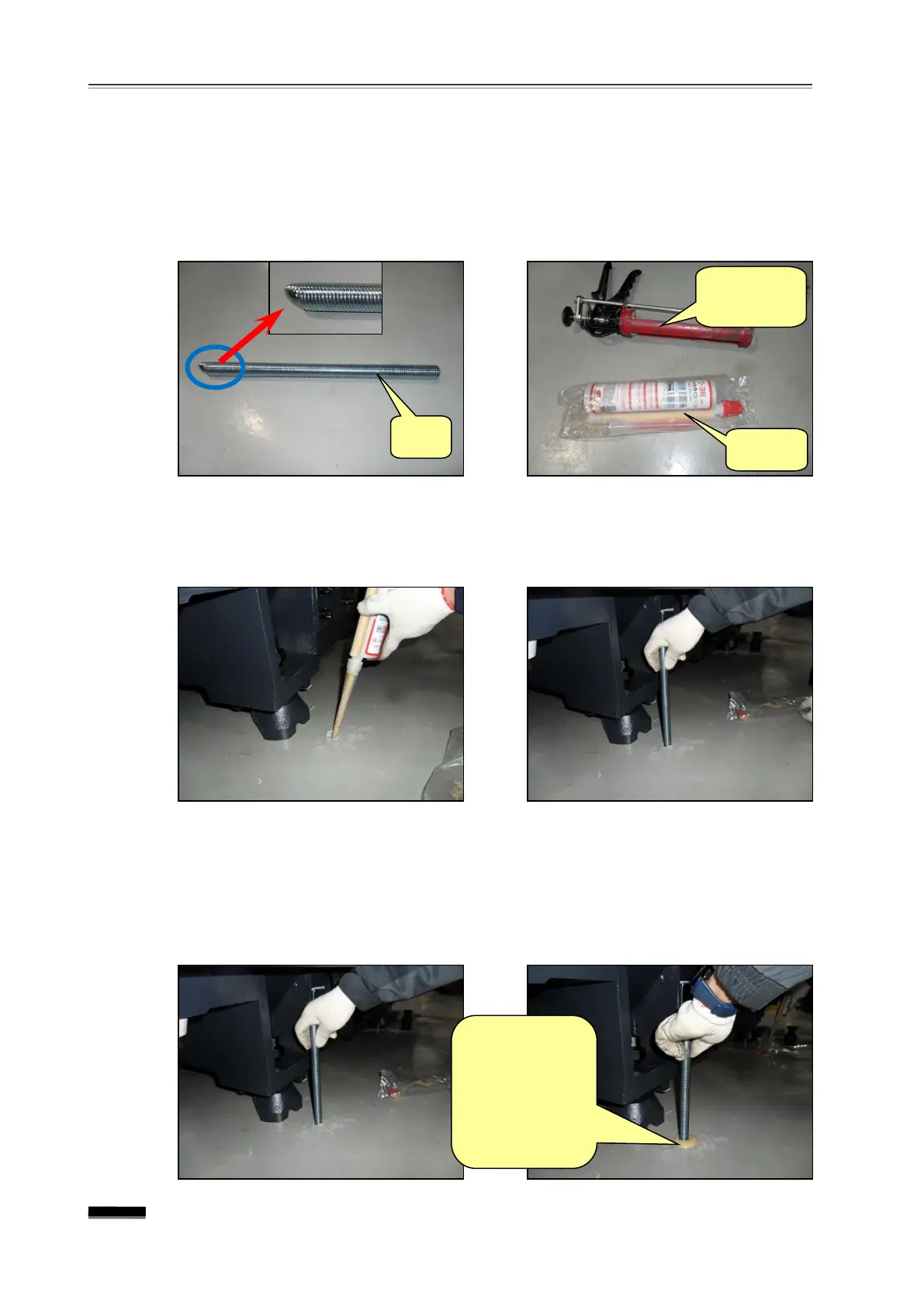

① Prepare the items required to set up the chemical anchor.
▪ Full Thread Clamp Bolt (HIT-C M20ⅹ320) with one end cut by 45°
▪ Chemical Anchor
▪ Manual Dispenser for Chemical Anchor
② Inject chemical into the clean hole.
▪ Equip the chemical manual dispenser with the chemical anchor, discard the first
2cc of
anchor to come out of the dispenser, and then fill the hole to about half its capacity.
③ Drive the clamp bolt’s end cut by 45° into the hole, half of which is filled with the
chemical, and keep rotating it in clockwise direction while pressing down until it
touches the floor and stops rotating.
☞ When a small amount of chemical overflows, it can be assumed that the overall
amount of the chemical is correct.
Manual
dispenser for
chemical
Chemical
anchor
Clamp
Bolt
When a small
amount of the
chemical
overflows, it
indicates that the
quantity of the
chemical used is
correct.
