Doosan DVF5000 - Main Power and Pneumatic Input

27

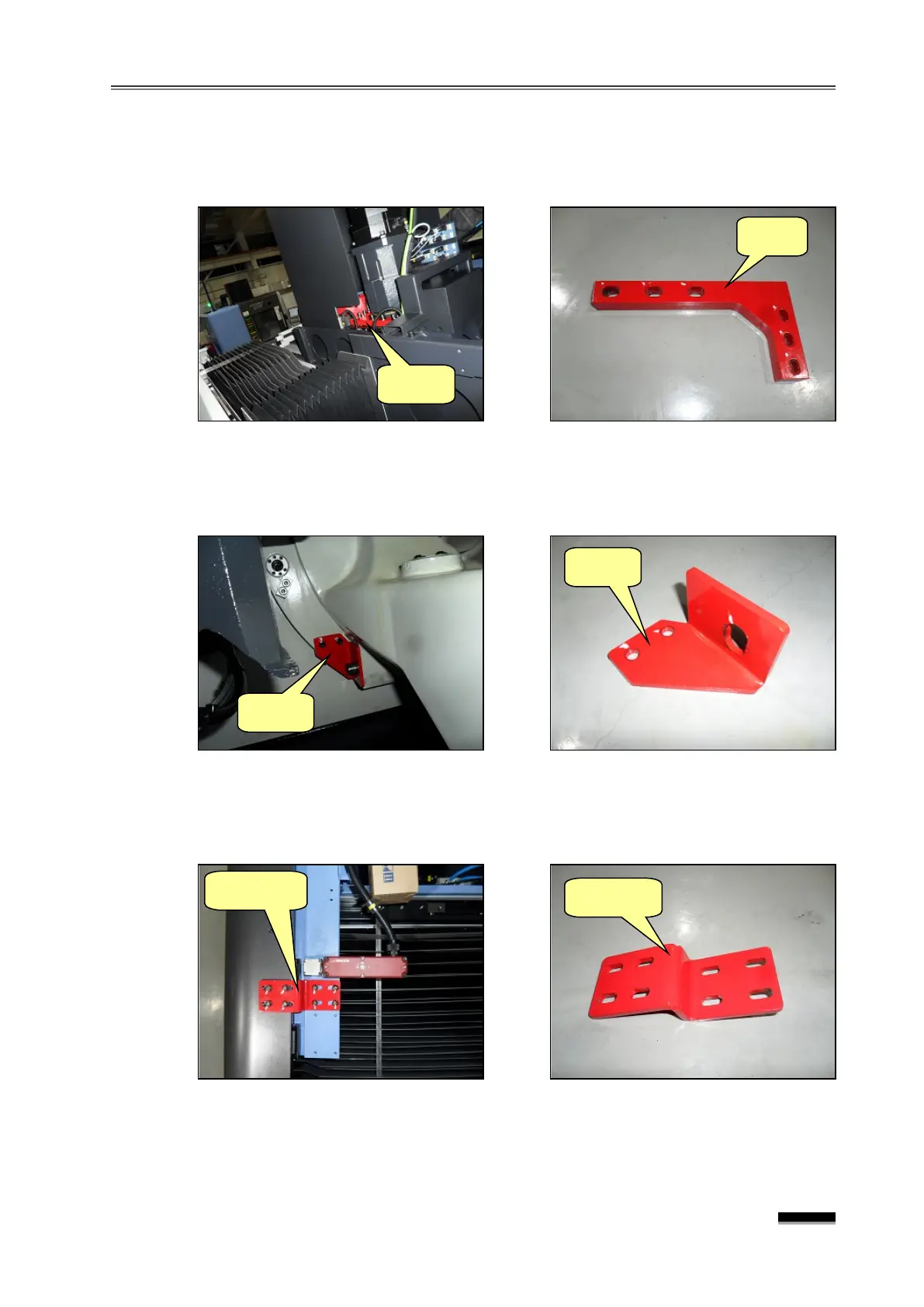

4. Machine Power-up
3) Removing
the Z-axis (Spindle Head) fixture
Disassemble and take out the Z-axis (spindle head) shipping fixture secured to the
column and spindle head.
4)
Disassembly of the B-axis (Tilting Table) fixing jig
Disassemble and take out B-axis (Tiling Table) shipping fixture which secures Tilting
Table
’s fixed part and rotation part.
5)
Removing the Front Door fixing jig
Disassemble and take out Front Door shipping fixture which secures upper part of Front
Door and Splash Guard.
Z-axis
fixture
Z-axis
fixture
B-axis
fixture
B-axis
fixture
Front Door
Fixing Jig
Front Door
Fixing Jig
