5. Machine Leveling

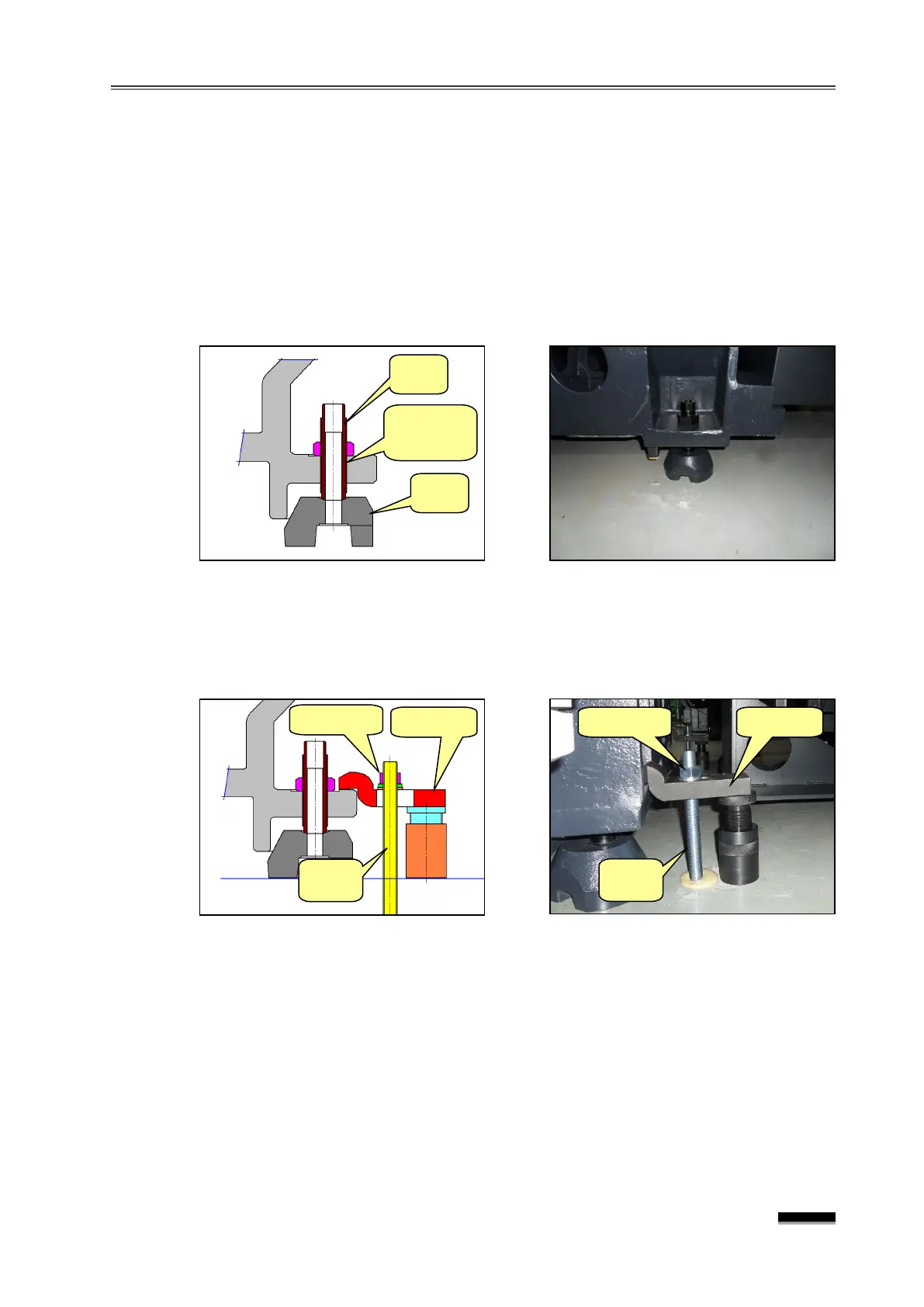

③ After accurately adjusting the absolute level by adjusting 4 level bolts, tighten the
remaining 2 bolts with optimum torque by letting them make contact with the leveling
block.
▪ Lastly, make a final adjustment to ensure accurate level with a torque as equal as
possible being applied to each of 6 level bolts.
④ If the result is satisfactory, lock the level bolt fastening nut tightly.
▪ If there is any change in the final level value when tightening the fastening nut,
loose all the fastening nuts and perform the leveling operation again.
4) Side Anchor(Option) installation equipment level
For the machine in which Optional Side Anchor is installed, after the operation for the
first 4 level bolts was finished, immediately lock the side anchor clamp nut (M20) which
was installed at the time of the machine installation.
