6. Machine Accuracy Measurement and Adjustment
Note) Spindle Housing Vertical Adjustment (12,000rpm spindle)
(1) By referring to “Spindle centerline and Z-axis feed parallelism” above,
measure the exact parallelism to calculate the amount of polishing on the
liner. (Measured amount and amount of polishing 1:1)
(2) Lower the spindle housing by about 30mm-35mm.

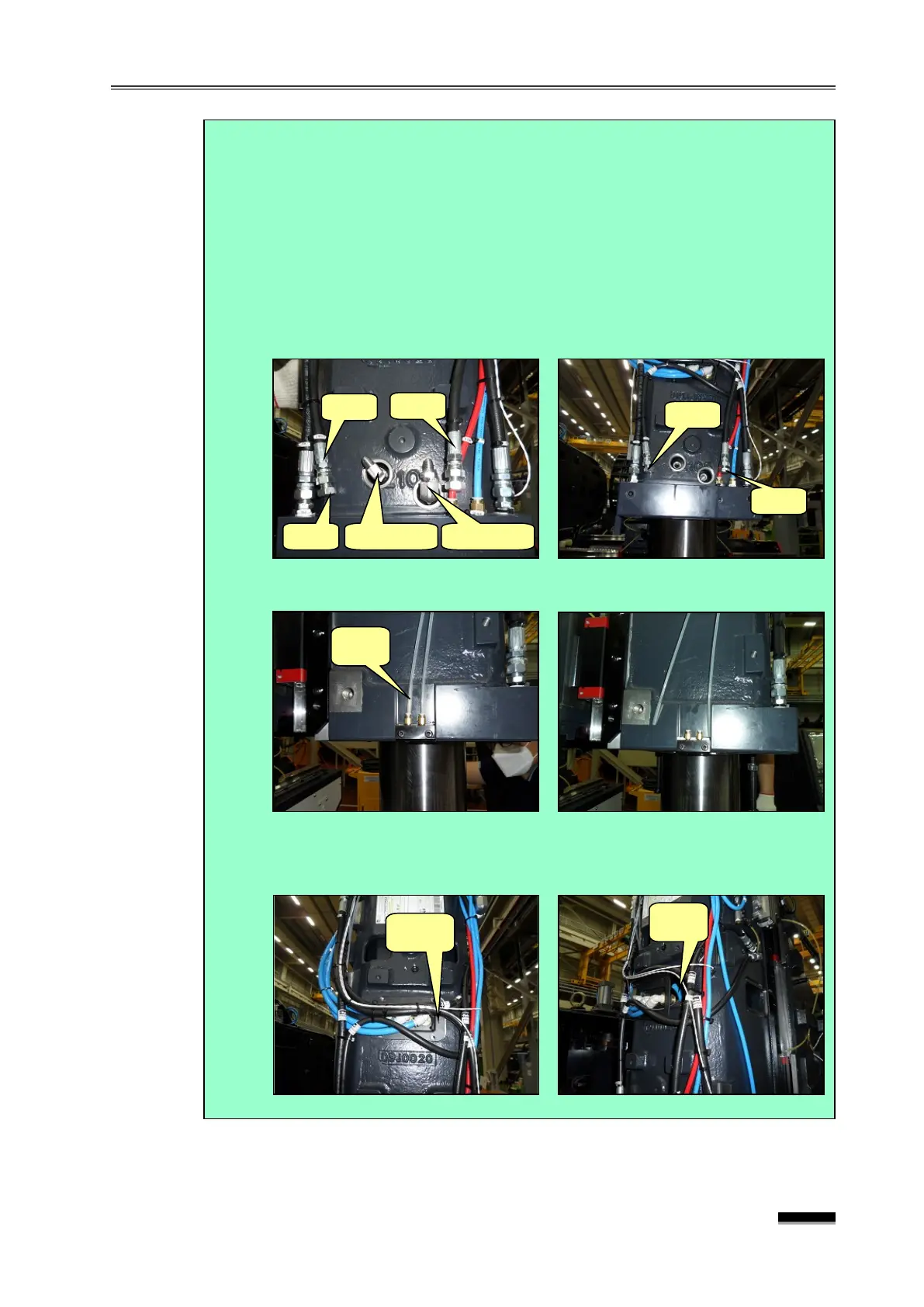

① Disassemble and take out the Spindle Head Cover, loosen the two
hoses that supply the spindle cooling oil, plug the end of the hoses to
prevent oil flow, and then loosen the Connector.
② Remove two 4mm vinyl tubes from left side of the spindle head.
③ Loosen Fitting Cover Fixing Bolt(4-BB6ⅹ12) in front of the spindle
head and remove one air tube on the far right from inside.
