Doosan DVF5000 - Coolant Tank Installation

94

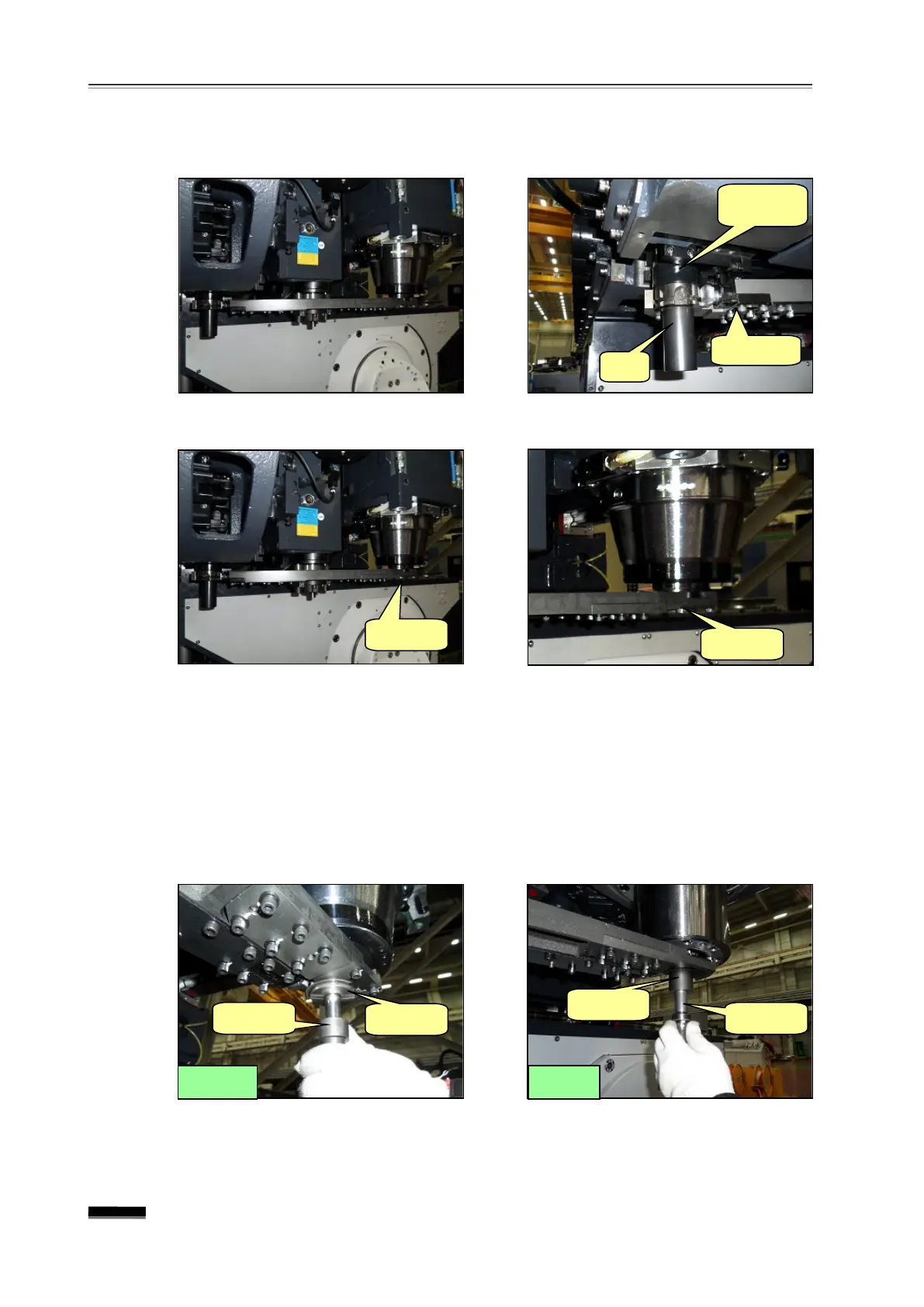

8. ATC Alignment and Finishing Operation
② Rotate the ATC Changer Arm by hand so that the Arm Gripper can fully grip the tool
inserted into the Waiting Pot.
③ Insert “Jig 1” into the Spindle-side Gripper.
④ Check the position of the X and Y axes
While gradually moving the X and Y axes using the “HANDLE”
, adjust them to
make
sure that “Jig 3” can smoothly enter the holes of “Jig 1” and “Jig 2” inserted in
to the
spindle.
▪ Look up while rotating “Jig 3
”
to find the direction of the area which the end of
taper machined on the end enters and to find the position which the whole thing
can enter smoothly while transferring the axis in the opposite direction.
Tool
ATC Arm
Waiting
Pot
“Jig 3”
“Jig 1”
“Jig 1”
“Jig 1”
BT40 HSK63
“Jig 1”
“Jig 3”
