Instructions for use | Atlan A300, A300 XL, A350, A350 XL SW 1.0n 143

Tests

8.4.4 Valves

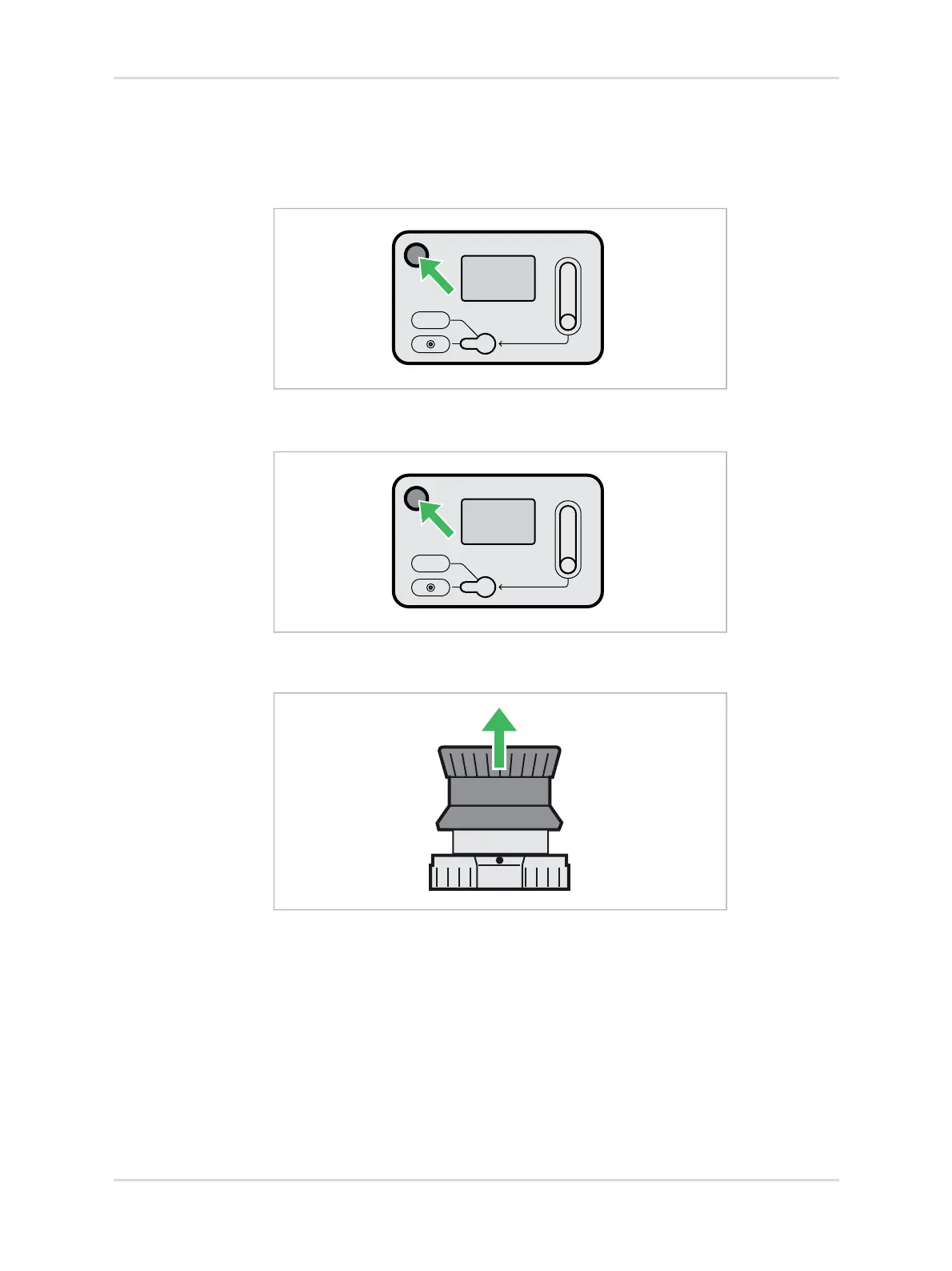

8.4.4.1 Checking the O2 flush

1. Press the O

2+ key and keep it pressed until the pressure stabilizes.

The pressure does not exceed 45 hPa (cmH

2O).

2. Release the O

2+ key again and wait until the pressure stabilizes.

The pressure does not fall below 15 hPa (cmH

2O).

3. Lift the APL valve.

The pressure is released.

351183511835120

20 4030

Default Chapter3
- Table of Contents3
