Overview
3 Overview
3.1 Hardware
3.1.1 Front
3.1.1.1 Large version

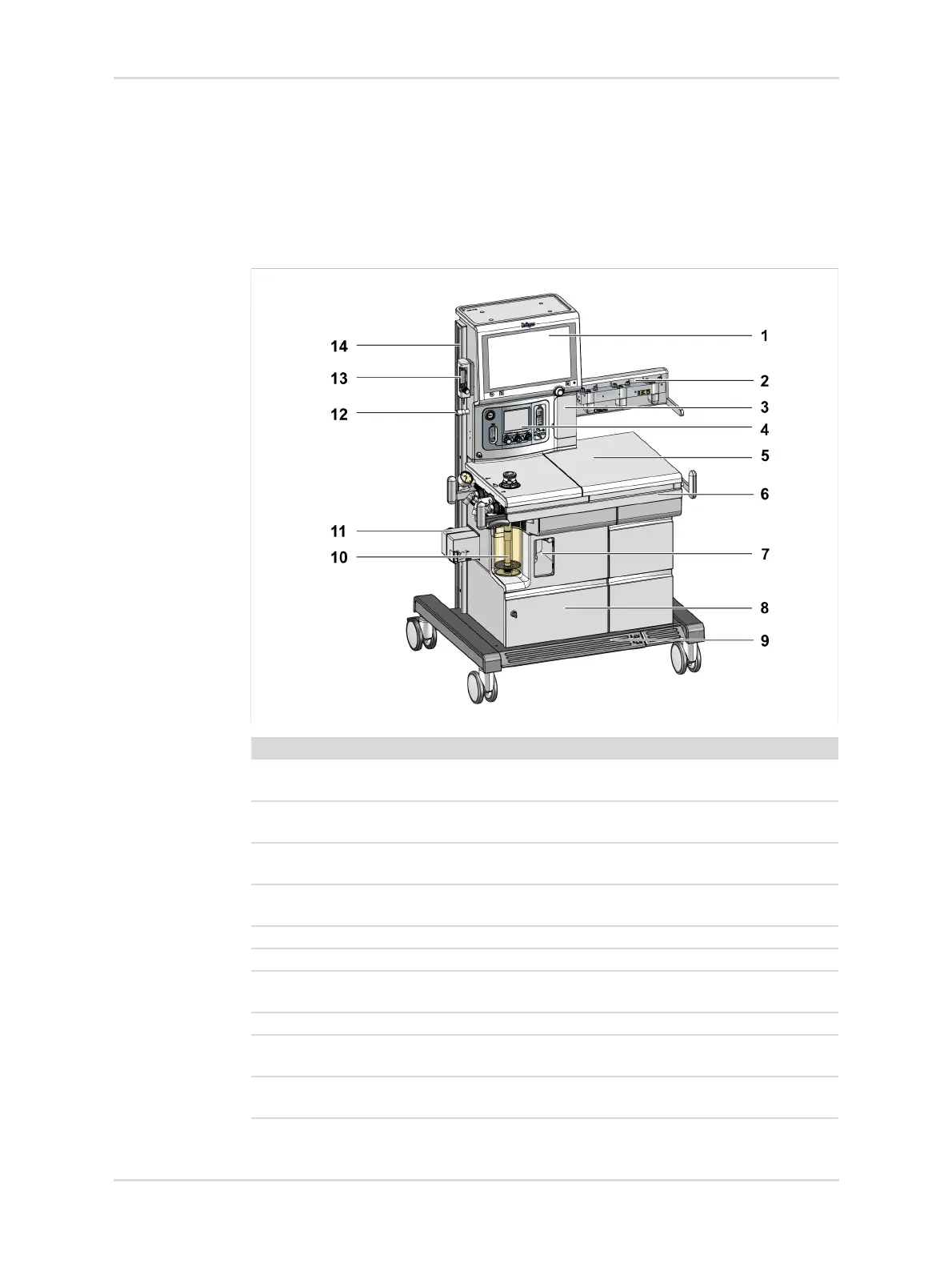

36437
No. Designation Description
1 Screen Enables user inputs by touchscreen and
rotary knob.
2 Plug-in connectors for vaporiz-
ers
Enable the connection of up to 3 vaporizers.
3 Backup manual switch (behind
the flap)
Used to switch to backup manual mode in
the event of malfunctions of the device.
4 Gas mixing unit Produces a gas mixture from the selected
gases (e.g., O
2 and Air).
5 Work surface Used for storing, e.g., documents.
6 Pull-out writing tray (option) Provides additional work surface.
7 Viewing window for piston ven-
tilator
Allows visual checking of the movement of
the piston ventilator.
8 Lockable drawer Provides additional storage space.
9 Trolley with footrest and cen-
tral brake
Used for moving the device. The central
brake locks the two front castors.
10 CO
2 absorber Absorbs CO2 from the patient’s breathing
gas.
