238 Instructions for use | Atlan A300, A300 XL, A350, A350 XL SW 1.0n
Reprocessing
13.9 Disassembling the breathing system
13.9.1 Overview

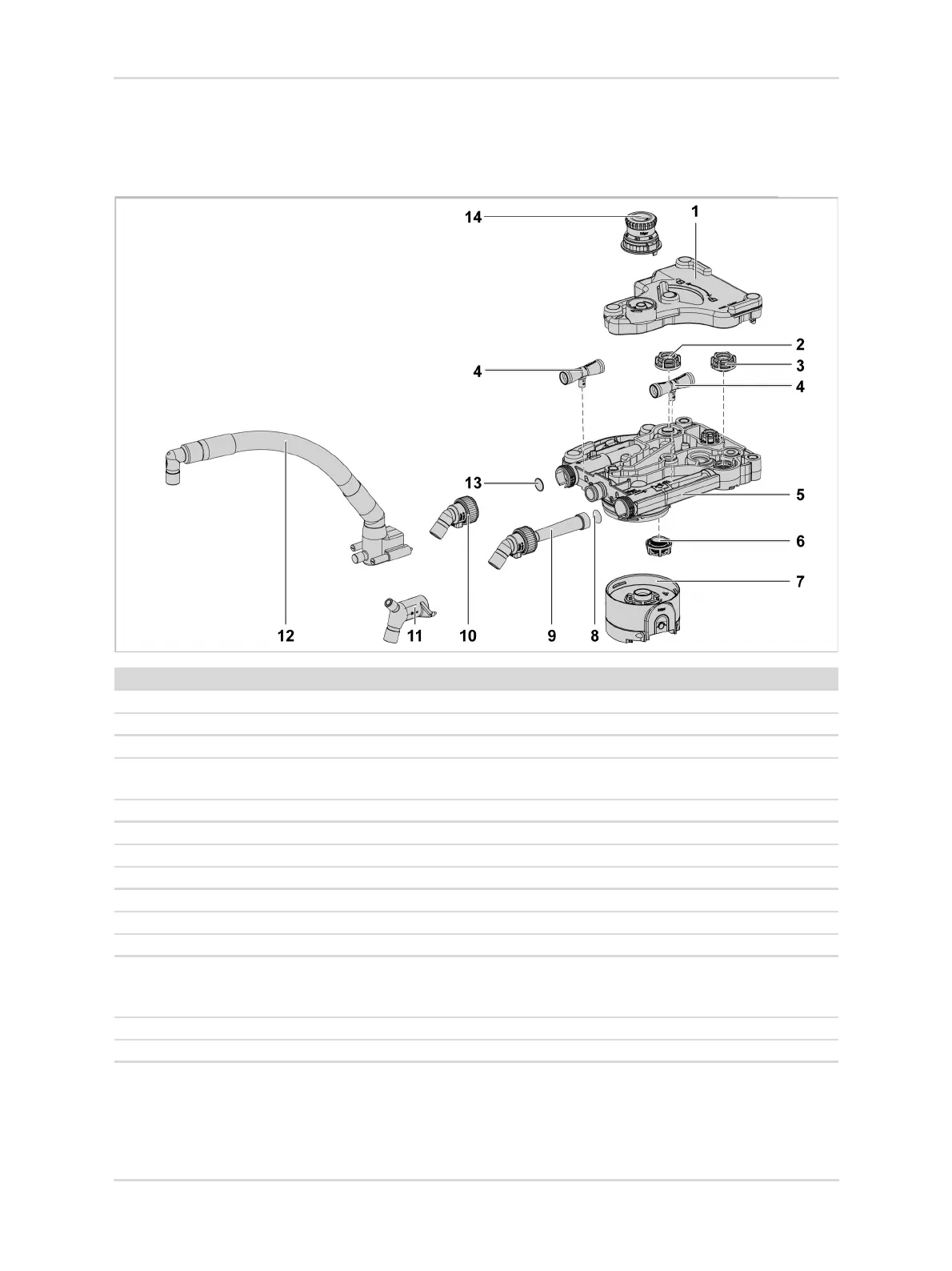

39538
No. Designation Remarks
1 Upper part of the breathing system
2 Non-return valve (yellow)
3 Non-return valve (blue)
4 Flow sensors Reprocessing is performed in accordance with
their own instructions for use.
5 Lower part of the breathing system
6 Non-return valve (black)
7 CLIC adapter (option)
8 Incident flow mesh, expiration Remains in the expiratory port.
9 Expiratory port
10 Inspiratory port
11 Bag elbow Remains at the lower part of the breathing system.
12 Breathing bag arm (option) When the breathing bag arm is used, there is no
bag elbow fitted to the lower part of the breathing
system.
13 Incident flow mesh, inspiration Remains in the lower part of the breathing system.
14 APL valve
