16 Instructions for use | Atlan A300, A300 XL, A350, A350 XL SW 1.0n
Overview

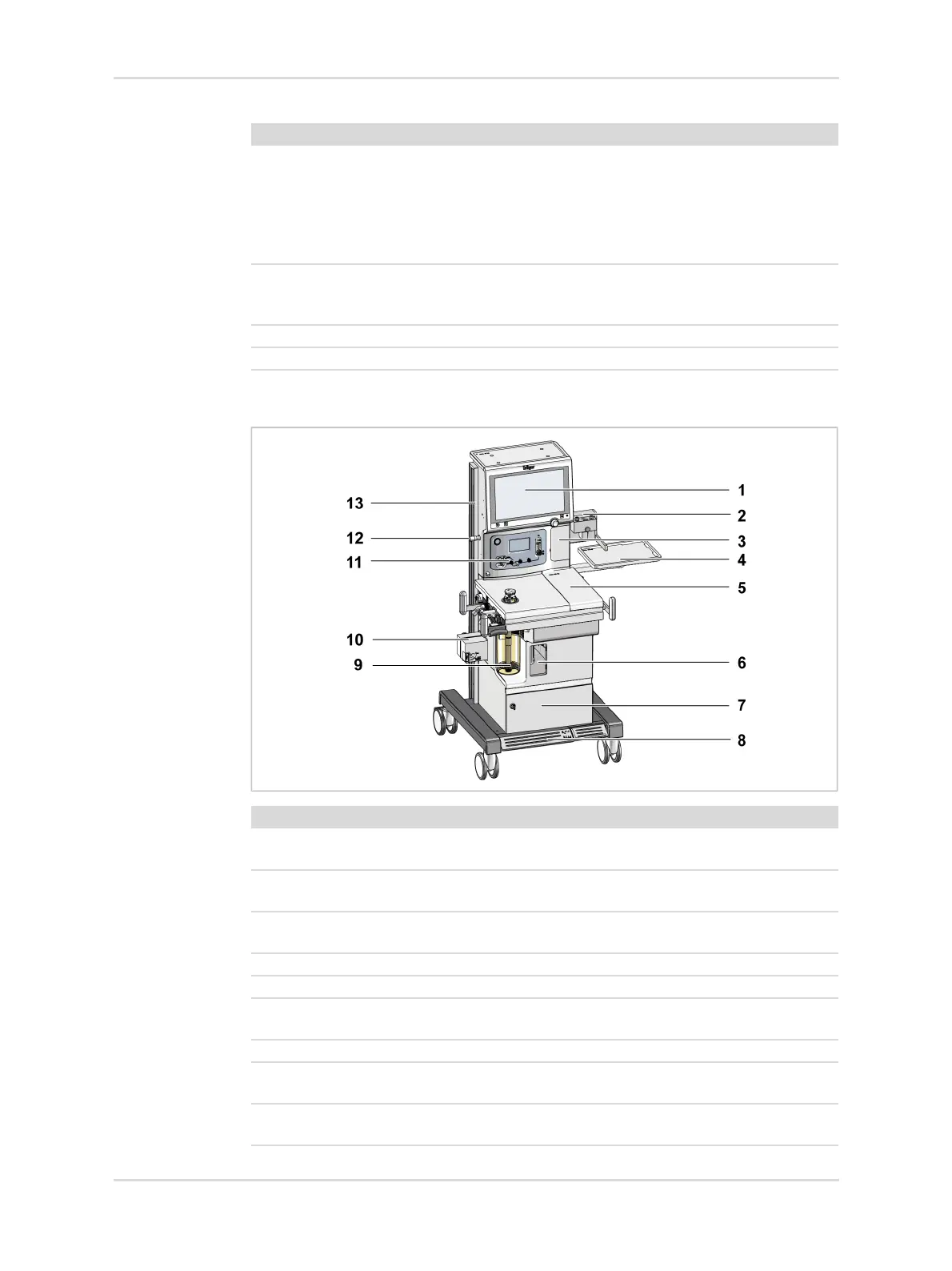

3.1.1.2 Compact version
11 Anesthetic gas receiving sys-
tem
Used for suctioning and scavenging excess
anesthetic gas and breathing gas. Used to
reduce the anesthetic gas concentration
released into the environment by the anes-
thesia machine, and to scavenge the sam-
ple gases from an anesthetic gas monitor.
12 External fresh-gas outlet Gas outlet for a mixture of fresh gas and
anesthetic gas which is fed to a non-
rebreathing system.
13 External O
2 flowmeter (option) Supplies pure oxygen for O2 insufflation.
14 Rail Used for fastening additional components.
No. Designation Description
36438
No. Designation Description
1 Screen Enables user inputs by touchscreen and
rotary knob.
2 Plug-in connectors for vaporiz-
ers
Enable the connection of up to 2 vaporizers.
3 Backup manual switch (behind
the flap)
Used to switch to backup manual mode in
the event of malfunctions of the device.
4 Swiveling shelf (option) Used for storage.
5 Work surface Used for storing, e.g., documents.
6 Viewing window for piston ven-
tilator
Allows visual checking of the movement of
the piston ventilator.
7 Lockable drawer Provides additional storage space.
8 Trolley with footrest and cen-
tral brake
Used for moving the device. The central
brake locks the two front castors.
9CO
2 absorber Absorbs CO2 from the patient’s breathing
gas.
