Instructions for use | Atlan A300, A300 XL, A350, A350 XL SW 1.0n 17
Overview

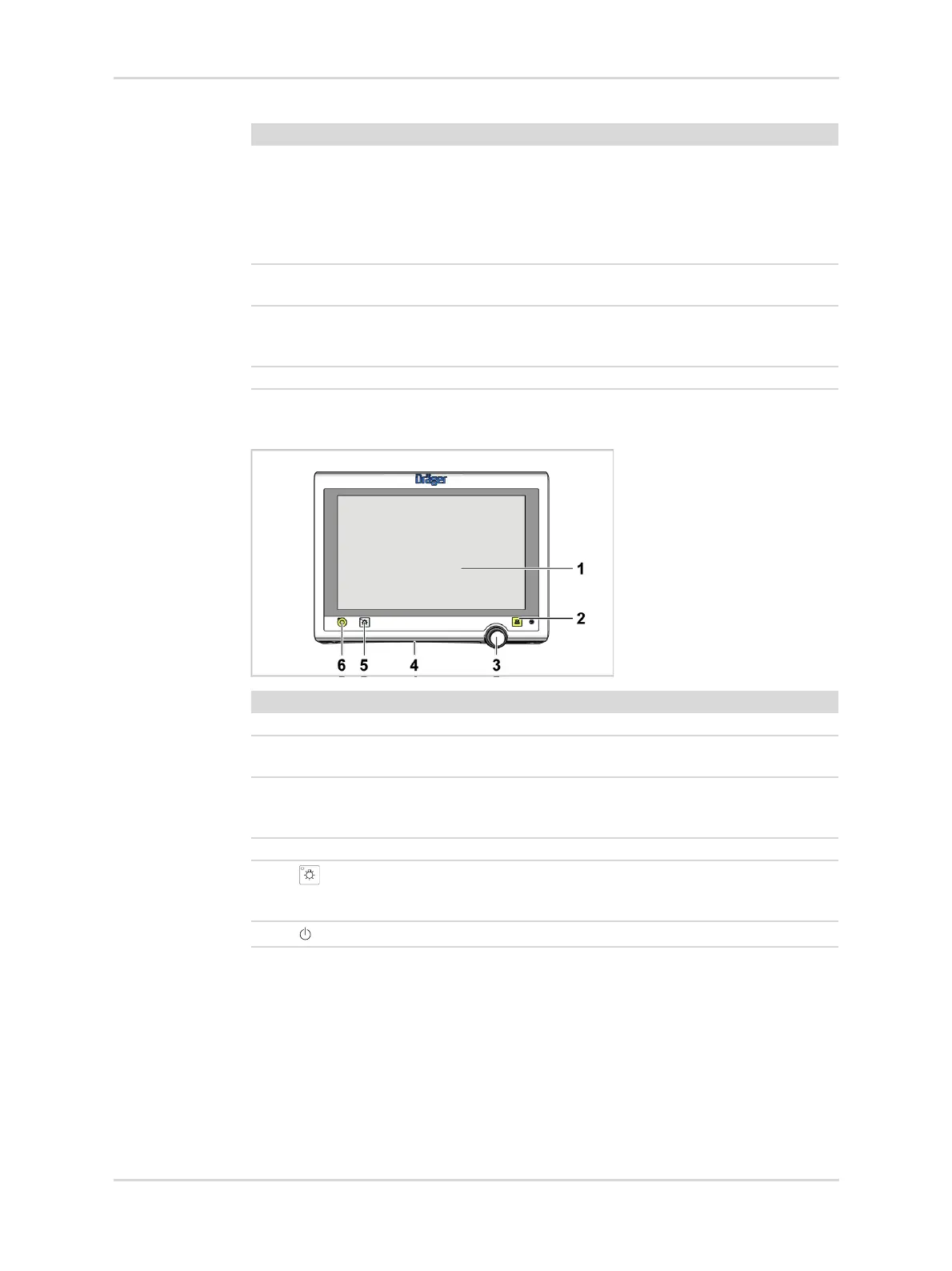

3.1.2 Screen
10 Anesthetic gas receiving sys-
tem
Used for suctioning and scavenging excess
anesthetic gas and breathing gas. Used to
reduce the anesthetic gas concentration
released into the environment by the anes-
thesia machine, and to scavenge the sam-
ple gases from an anesthetic gas monitor.
11 Gas mixing unit Produces a gas mixture from the selected
gases (e.g., O
2 and Air).
12 External fresh-gas outlet Gas outlet for a mixture of fresh gas and
anesthetic gas which is fed to a non-
rebreathing system.
13 Rail Used for fastening additional components.
No. Designation Description
36441
No. Designation Description
1 Touchscreen Calls up functions or dialogs when touched.
2 Alarm silence key Suppresses the alarm tones of all active
alarms for 2 minutes.
3 Rotary knob Used for selecting, adjusting, and confirm-
ing settings. Lights up in color in certain sit-
uations.
4 Working light Illuminates the work surface.
5
key
Turns the working light on or off. Dims the
illuminance in 3 steps (dark, medium, and
bright).
6
key
Turns the device on or off.
