Instructions for use | Atlan A300, A300 XL, A350, A350 XL SW 1.0n 19
Overview
3.1.3.2 Version with O2 sensor
The following illustration shows the device without its breathing system cover and
illustrates the position of the O
2 sensor.
11 Water trap with connection for
sample line
Collects condensed water which forms in
the sample line.
12 Patient-gas measurement
module
Measures and monitors various gas con-
centrations in the breathing gas (O
2, CO2,
N
2O, and anesthetic gases).
13 Guide clip Used to securely lay the O
2 insufflation
hose.
No. Designation Description
36447
No. Designation Description

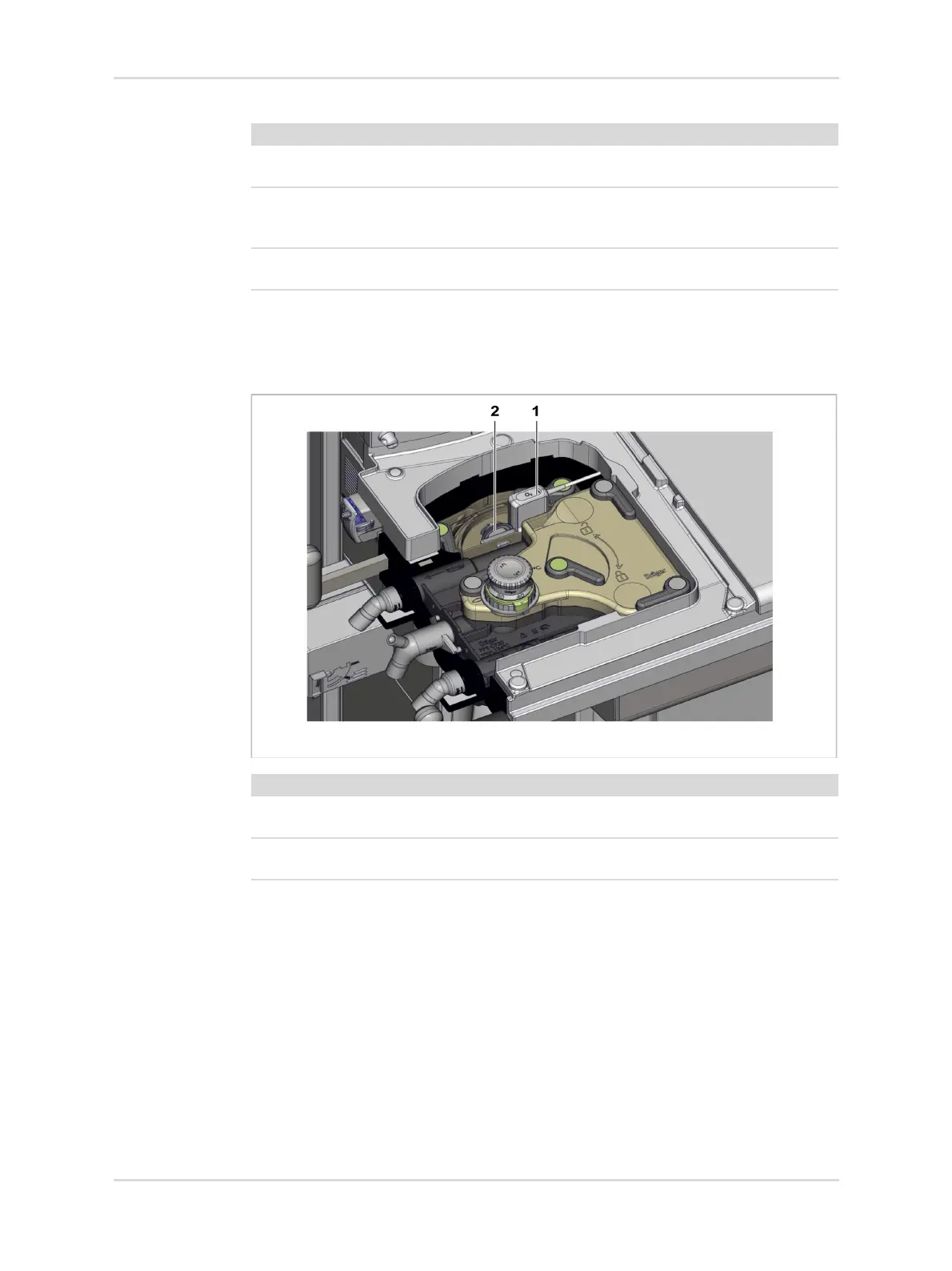

1O
2 sensor Measures the inspiratory O2 concentration
in the breathing gas.
2 Sealing cap Seals the O
2 sensor port during calibration
of the O
2 sensor.
