Instructions for use | Atlan A300, A300 XL, A350, A350 XL SW 1.0n 255
Reprocessing

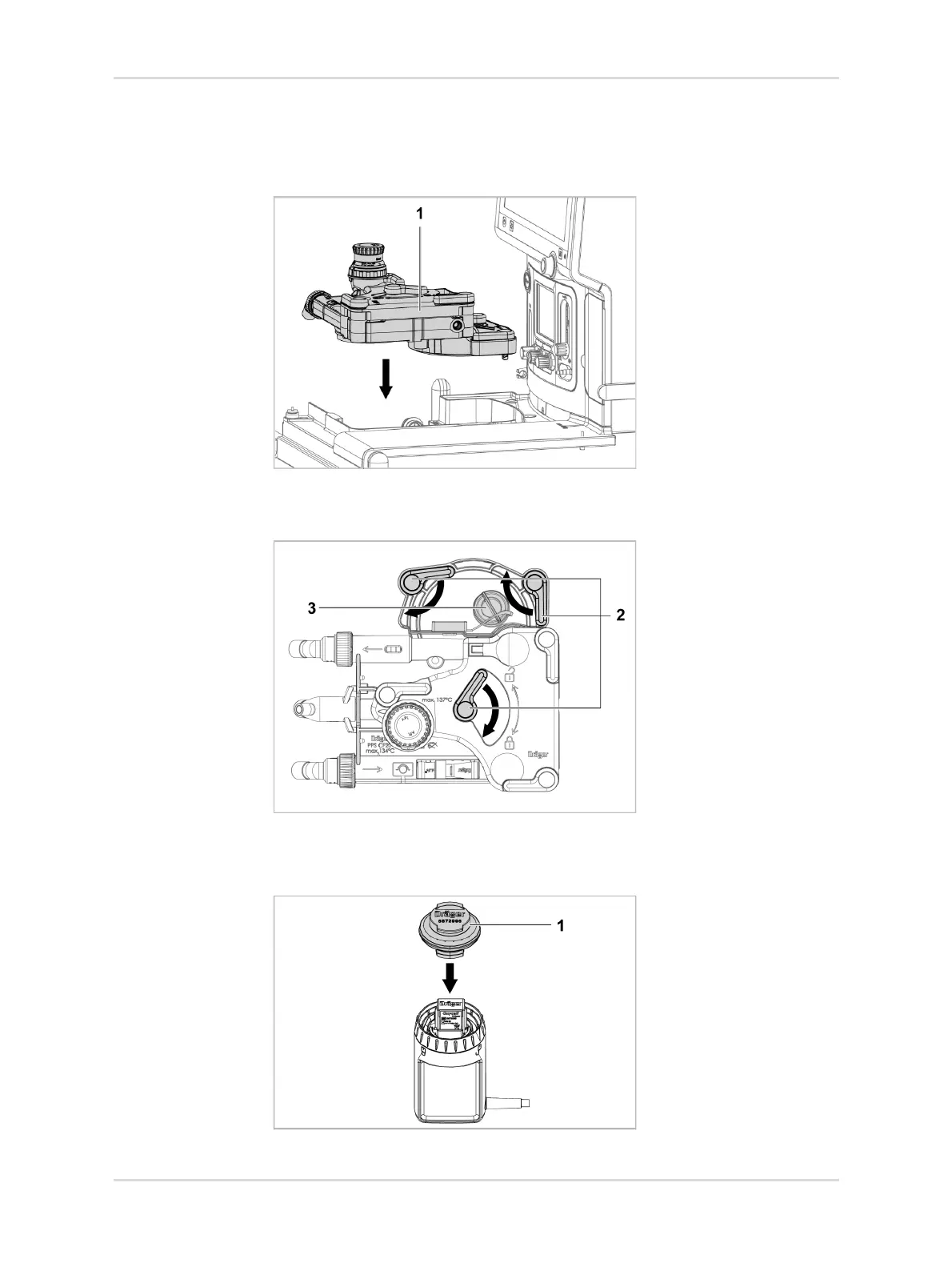

13.11.4 Inserting the breathing system
1. Insert the assembled breathing system (1) vertically into the breathing system
mount.
2. Turn the levers (2) by approximately 120° clockwise. The breathing system is
now locked. On the product variant with integrated patient-gas measurement
module, seal the O
2 sensor port with the sealing cap (3).
13.11.5 Assembling and inserting the O2 sensor
1. Place the sensor cap (1) on the O2 sensor.
365033650437178
