Instructions for use | Atlan A300, A300 XL, A350, A350 XL SW 1.0n 43

Overview

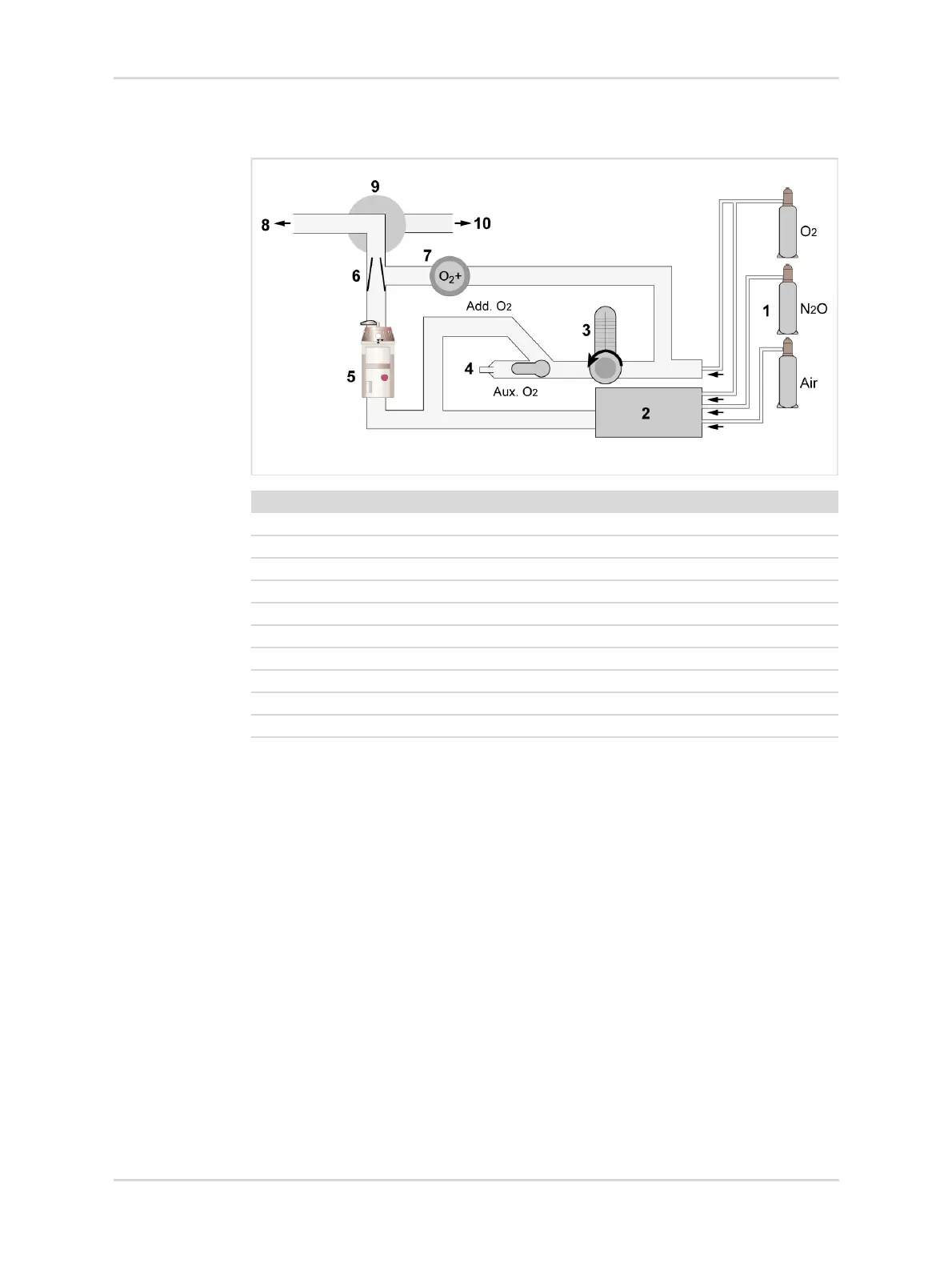

3.3.2 Gas supply (electronically controlled gas mixer)

36484

No. Designation

1 Gas supply (central supply or gas cylinders)

2Gas mixer

3O

2 flowmeter

4O

2 switch

5 Vaporizer

6Ejector

7O

2 flush

8 Breathing system

9 Switch-over valve

10 External fresh-gas outlet
