54 Instructions for use | Atlan A300, A300 XL, A350, A350 XL SW 1.0n
Assembly and preparation
4.2.3 Compact version with counterweight
There is a counterweight of 30 kg (66 lbs) fitted in the lower section of the trolley.
Thus the maximum total weight of the accessories rises to 45 kg (99 lbs).
The weight is distributed as follows:
Column cover
The column cover may be loaded with a maximum of 15 kg (33 lbs).

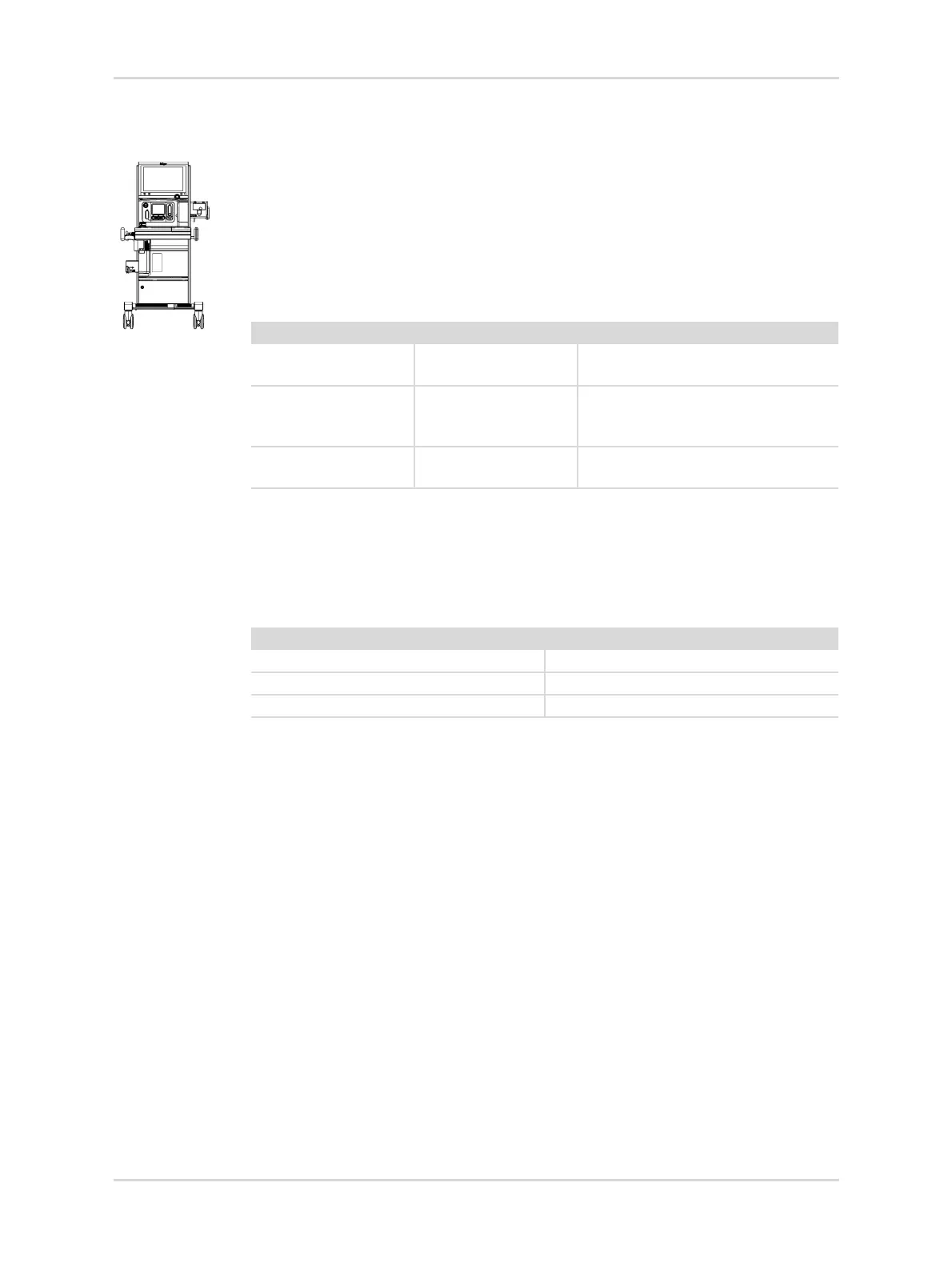

Left and right sides
Rear
The rear may be loaded with a maximum of 40 kg (88 lbs). In addition to the
accessories, this must also take account of the weight of gas cylinders including the
pressure reducers and the hanger yoke system.
Other components
Mounting position Maximum weight Additional restrictions
All accessories on a
single arm
20 kg (44 lbs) Maximum arm length: 75 cm (29 in)
Accessories distrib-
uted over several
arms on both sides
30 kg (66 lbs) Maximum arm length: 40 cm (16 in)
Accessories that are
not mounted on arms
See product label Maximum distance to the device:
10 cm (4 in)
Component Maximum weight
Writing tray 20 kg (44 lbs)
Standard rail 10 kg (22 lbs)
Large drawer 3 kg (6.6 lbs)
