Assembly and preparation
2. Turn the locking levers (1) clockwise. The vaporizers are locked when the levers
are pointing to the left.

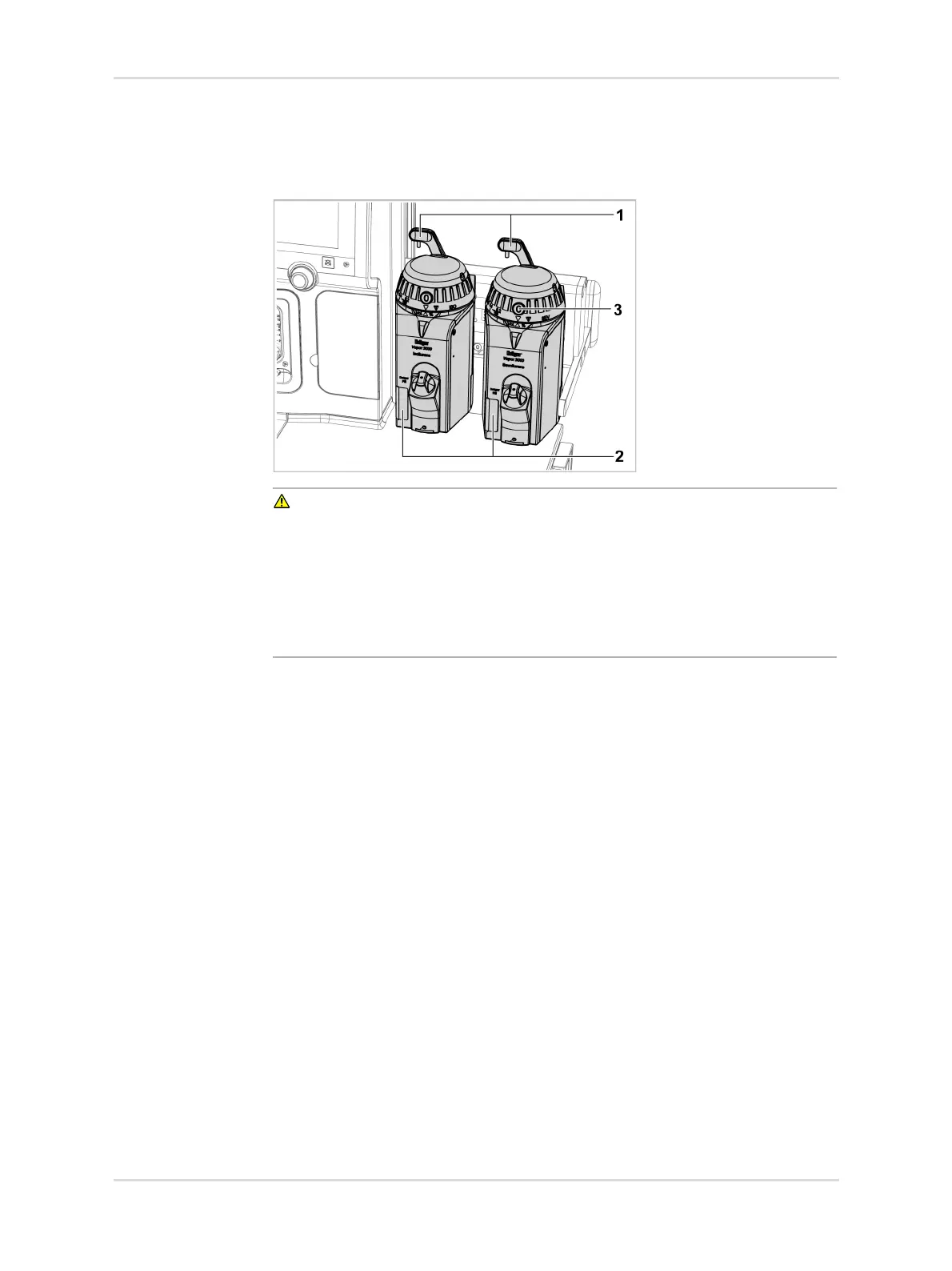

The illustration shows vaporizers of the type Dräger-Vapor 3000.
3. WARNING
Risk due to incorrect anesthetic agent delivery
If the vaporizer is filled with the wrong anesthetic agent or if it is not filled
sufficiently, incorrect anesthetic gas concentrations or concentrations that are
too low can occur as a result.
► Compare the color code and labeling on the vaporizer used with the
anesthetic agent bottle.
► Follow the instructions for use for the vaporizer.
Check the filling levels in the sight glasses (2). Fill the vaporizers if required.
4. Turn the control dial on each vaporizer to the 0 position. The key (3) engages.
Checking the metering interlock
The vaporizers have an interlock system which by means of a metering interlock
prevents the simultaneous opening of 2 vaporizers.
1. Turn the control dial on one of the vaporizers to a position other than 0.
2. Test the control dials of the other vaporizers to see if they can be turned. The
metering interlock is active if the control dial remains in the 0 position.
3. Turn the vaporizer opened in step 1 back to the 0 position.
4. Repeat this test for all the vaporizers.
Special characteristics of the D-Vapor
1. Connect the power cable to a power socket.
2. If required, establish a potential equalization connection.
3. Stow the cable in a cable duct if necessary.
