Instructions for use | Atlan A300, A300 XL, A350, A350 XL SW 1.0n 71
Assembly and preparation
4.8.2 Breathing bag
The breathing bag can be mounted either on the breathing bag arm or, using the
bag elbow and a breathing hose, mounted directly on the breathing system.
4.8.2.1 Attaching the breathing bag
1. Connect the breathing bag to the breathing bag hose using the connection
nozzle. Attach the breathing bag hose to the bag elbow.
2. WARNING
Risk due to pinched breathing bag
If the breathing bag is pinched, excessive airway pressures or a lack of fresh
gas may result.
► When attaching, ensure the following:
– The breathing bag is not pinched.
– The breathing bag can inflate freely.

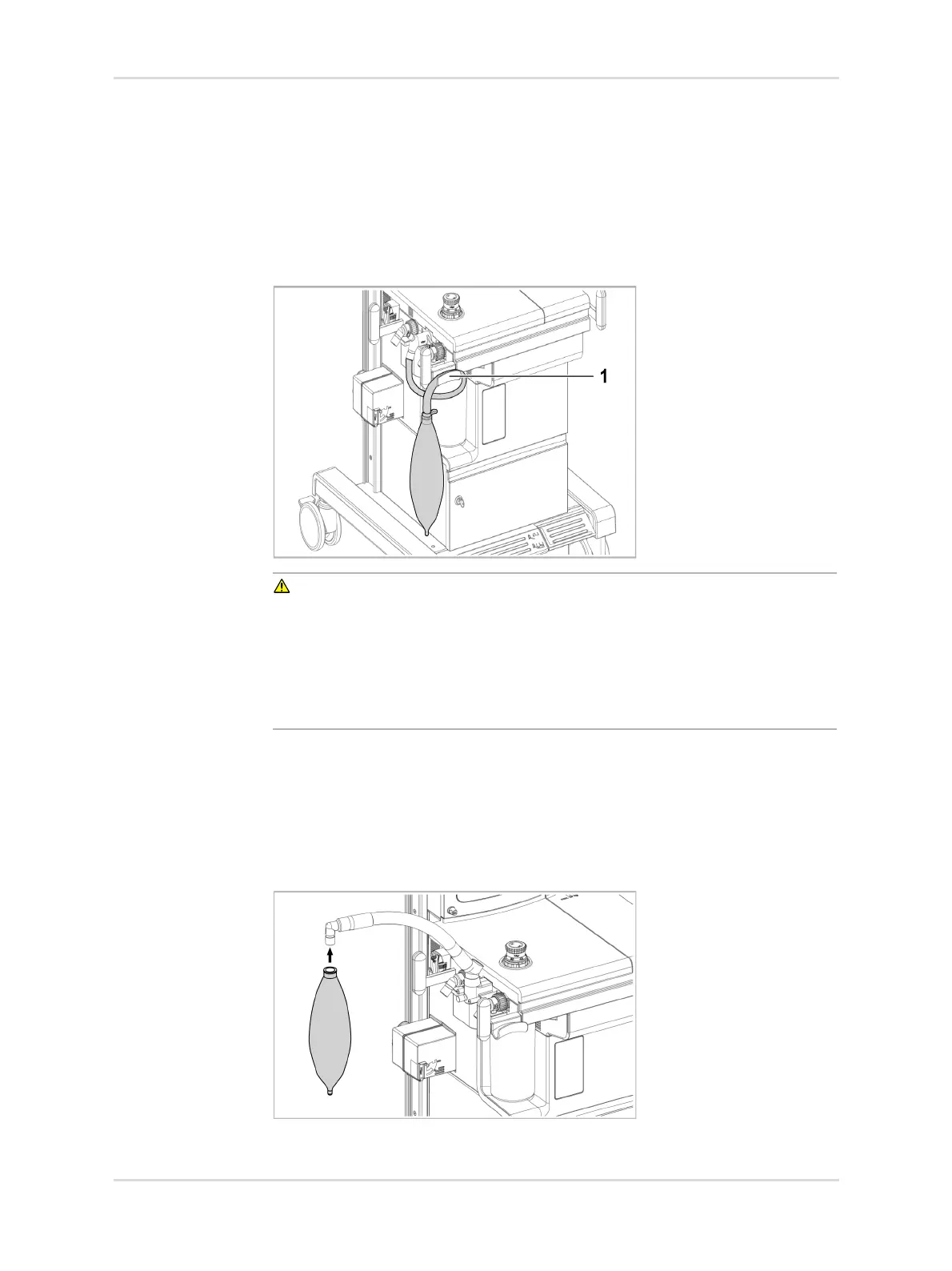

Lay the breathing bag hose in the holder (1) in a loop so that the bag hangs on
the left of the holder.
Make sure that the breathing bag is not impeded by breathing hoses or cables
when inflating.
4.8.2.2 Attaching the breathing bag to the breathing bag arm (option)
► Attach the breathing bag to the elbow.
3713737138
