74 Instructions for use | Atlan A300, A300 XL, A350, A350 XL SW 1.0n
Assembly and preparation
1. WARNING
Risk of excessively high airway pressure
Without a pressure release valve or breathing bag, airway pressure may
become too high.
► Only non-rebreathing systems with breathing bags or pressure release
valves which comply with ISO 8835-2 may be connected.
Select a suitable non-rebreathing system.
2. WARNING
Risk of faulty gas delivery
Faulty gas delivery and insufficient gas supply when a non-rebreathing system is
used may put the patient at risk. Thus O
2, CO2, and any anesthetic gases must
also be monitored for non-rebreathing systems.
► The sample line must be connected to the mask and the water trap on the
anesthesia machine.
► Provide for suitable gas monitoring conforming to ISO 80601-2-55.
► Provide suitable O2 monitoring for devices with inspiratory O2 measurement.

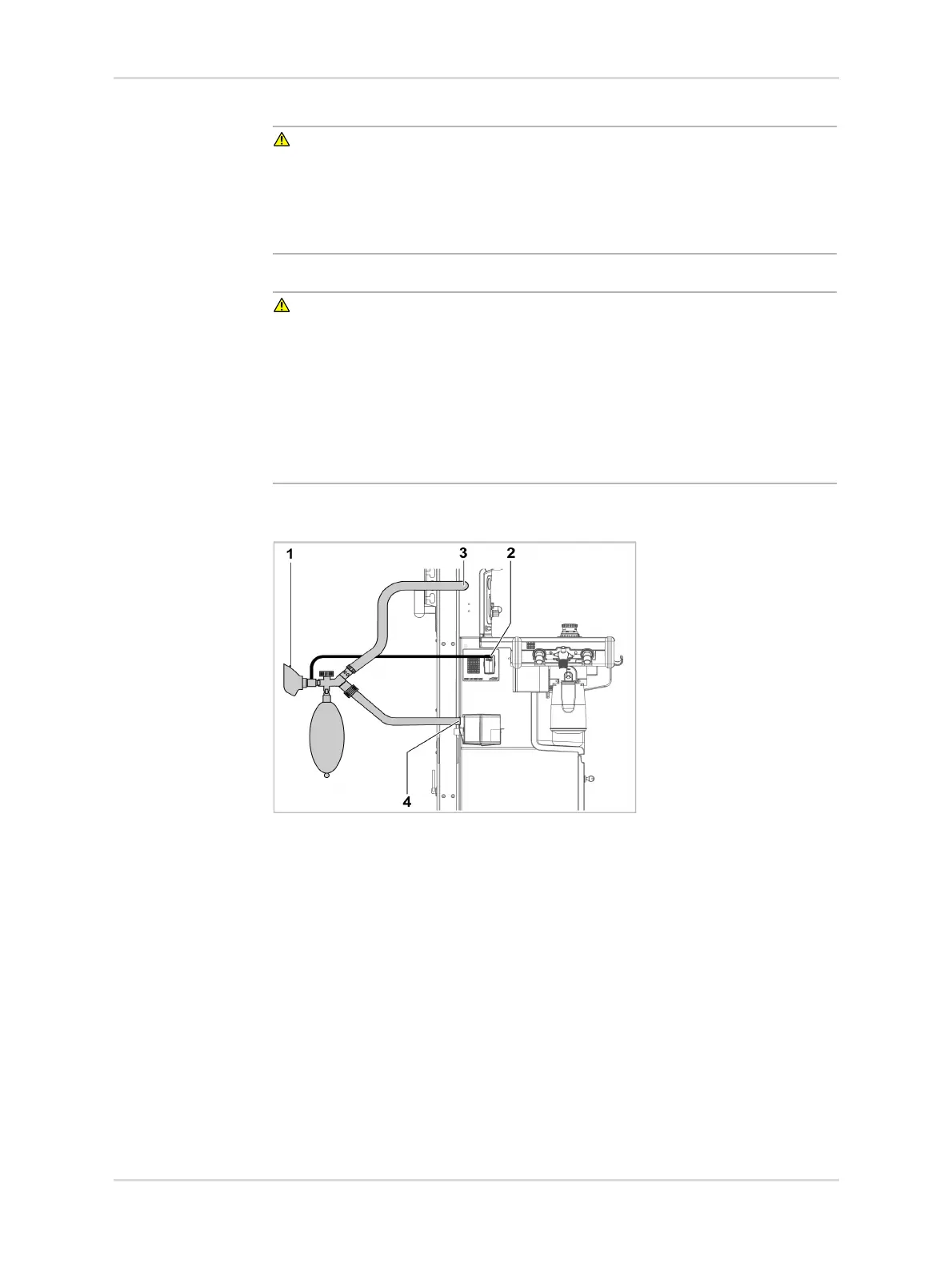

Screw the sample line securely to the mask (1) on the non-rebreathing system
and to the water trap (2).
For masks without a connector for the sample line, optionally proceed as
follows:
► Place the T-piece with a T-piece filter directly on the elbow. Screw the sample
line firmly onto the T-piece filter. The part numbers for the T-piece and the T-
piece filter are listed in the list of accessories.
► If necessary, connect the sample line to a filter on the Y-piece.
Ensure the correct course of the sample line. Do not use adapters.
3. Connect the fresh-gas hose of the non-rebreathing system to the external fresh-
gas outlet (3).
4. Remove the sealing plug from the inlet nozzle (4) on the AGS.
5. Use the transfer hose to connect the non-rebreathing system to the inlet nozzle
on the AGS (4).
37868
To Next Page
