80 Instructions for use | Atlan A300, A300 XL, A350, A350 XL SW 1.0n
Operating concept

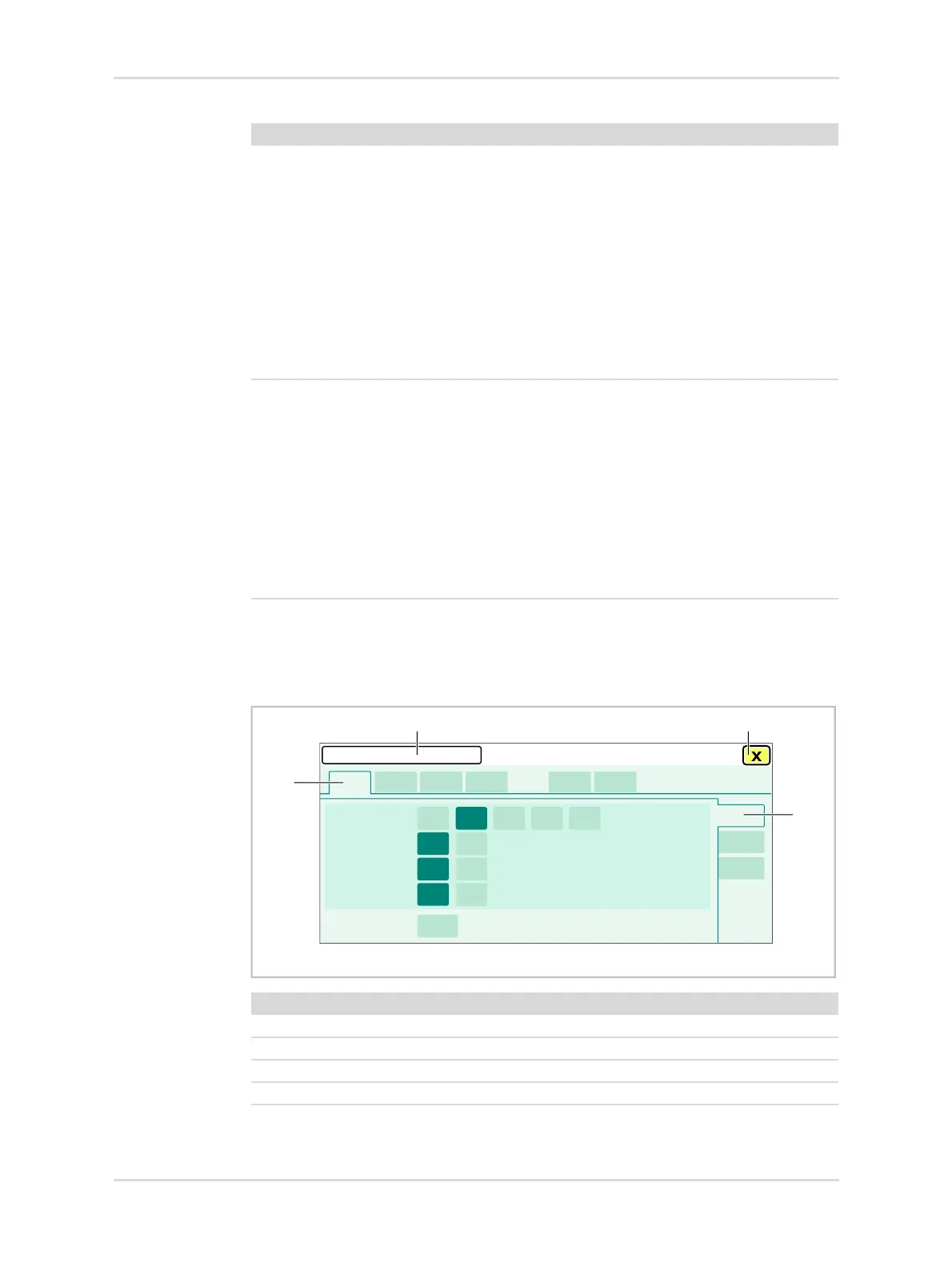

5.1.2 Dialogs
Dialogs consist of one or more pages which are displayed by touching the
corresponding horizontal or vertical tab.
3 Monitoring area The following information is displayed in the monitoring
area:
– Gas measurement
– Waveforms
– Parameter fields
– Loops (Pressure-Volume and Flow-Volume)
– Mini-trends
– Virtual flow tubes
For further information see: "Customizing the current
view", page 109.
4 Therapy bar The ventilation settings can be adjusted in the therapy
bar.
Electronically controlled gas mixer:
– Ventilation modes
– Ventilation parameters
– Fresh-gas delivery
Mechanically controlled gas mixer:
– Ventilation modes
– Ventilation parameters
No. Designation
34766
No. Designation
1 Title of the dialog
2 Button for closing the dialog
3 Vertical tab to open subordinate structures
4 Horizontal tab to open a page
