Dräger PIR 7000

18
Assembly and Installation

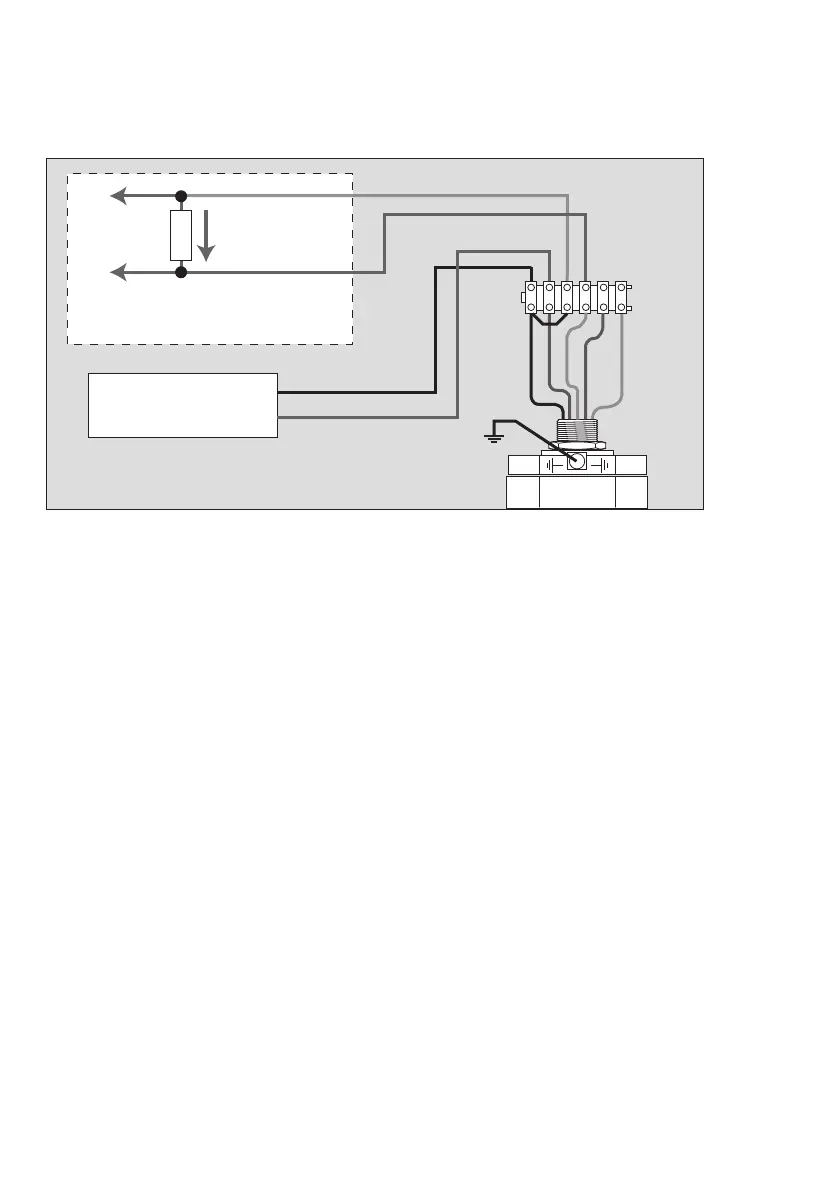

Connection diagram for operation as 4 to 20 mA current sink (sink operation) with isolated
power supply and signal lines to the central device:
04223886_01_en.eps
+
+
–
–
R
S
123456
Power supply
red black brown white green/yellow
Central device
