Dräger PIR 7000 Technical Handbook

25
Accessories
Installing Accessories
Mounting Set PIR 7000
*)
(Part no. 68 11 648)
Intended use:
— The mounting set is suited for mounting
the gas transmitter to flat and curved
surfaces.
Mounting:
● Remove the splash guard PIR 7000 /
7200 (part no. 6811911/6811912), if
fitted.
● Attach bracket for wall, ceiling or floor
mounting by screws to the prepared
boreholes.
1 Remove status indicator PIR 7000 /
7200 (part no. 6811625/6811920),
flowcell PIR 7000 / 7200 (part no.
6811490/6811910) or bump test
adapter PIR 7000 / 7200 (part no.
6811630/6811930) from the gas
transmitter. Remove the joint ring
PIR 7000 (part no. 6811908), if fitted.
2 Screw on the holder to the gas
transmitter using the four screws in such
a way that the gas transmitter is correctly
aligned.
If using the splash guard PIR 7000 /
7200 (part no. 6811911/6811912) note
the preferred position (see page 27).
3 Fit status display, flow cell or remote test
adapter to the gas transmitter.
The joint seal ring must not be fitted if
using the mounting set.
The mounting set PIR 7000 is removed in
reverse order.
*)
The mounting set PIR 7000 is also suitable for the use with
Dräger PIR 7200.

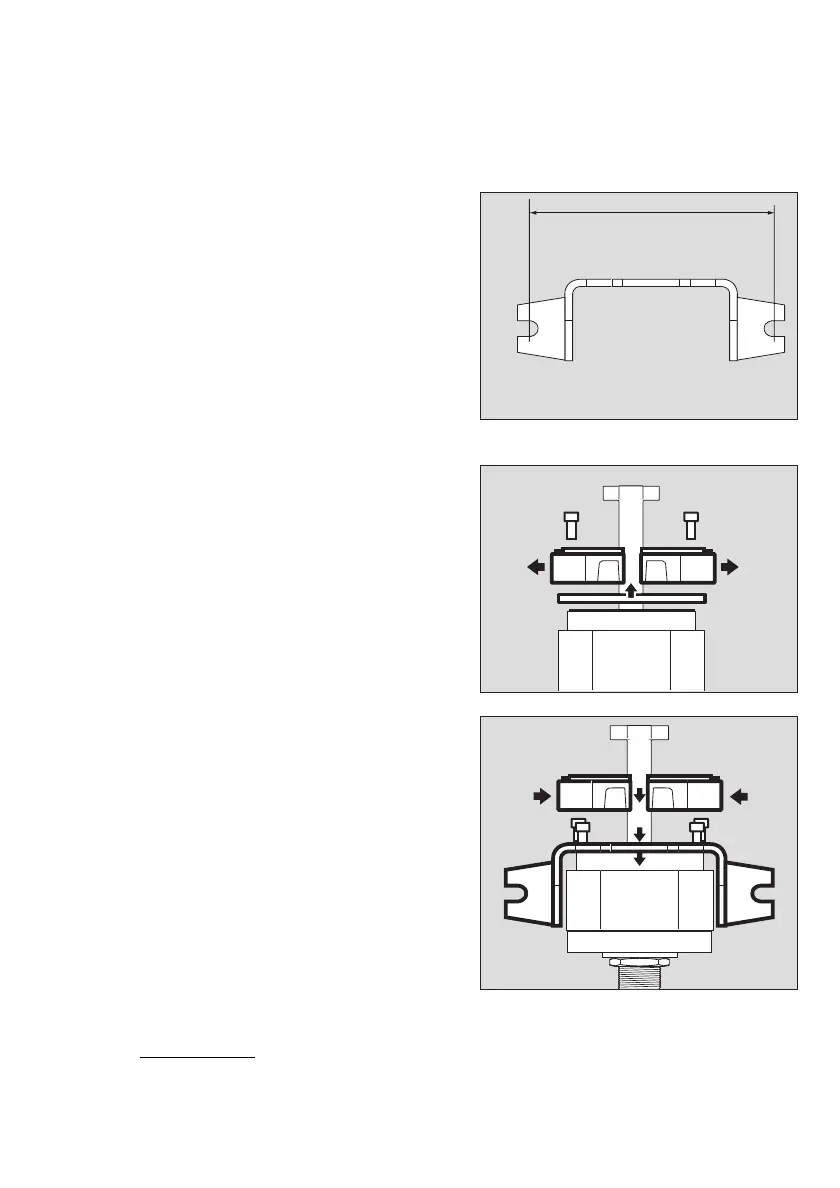

01023886_01.eps
146
01123886_01.eps01223886_01.eps
3
2

Dräger PIR 7000 Specifications

General

Detection Principle	Infrared (IR)
Pressure Range	700 to 1300 hPa
Ingress Protection	IP66/67
Gases Detected	Hydrocarbons
Measurement Range	0 - 100 %LEL (Lower Explosive Limit) or 0 - 100 vol.%
Operating Temperature	-40 to +65 °C
Output Signal	4-20 mA
Housing Material	Stainless steel
Certifications	ATEX, IECEx, UL, CSA
Response Time	t90 ≤ 4 s
