27
Accessories
● Note the preferred position of the gas transmitter with splash guard.
● During mounting, make sure that the lights of the status display are positioned one above
the other. The "Dräger" logo of the splash guard must be visible horizontally.
— When using the flow cell PIR 7000/7200 or the remote test adapter PIR 7000/7200, the
hose connections should point downwards to avoid the entry of water or dirt.
Cover flow cell or remote test adapter connections with protective caps when not in use,
or connect the inlet and outlet e.g. with a hose connector.
● Fasten the splash guard to the gas transmitter using the two screws. Tighten screws evenly
to ensure a good seal.
Make sure the sealing surfaces on the splash guard, on the status display, on the flow cell
or on the remote test adapter are clean, clean sealing surfaces if required.
● Ensure free access for ambient air to the measured gas inlet and gas outlet.

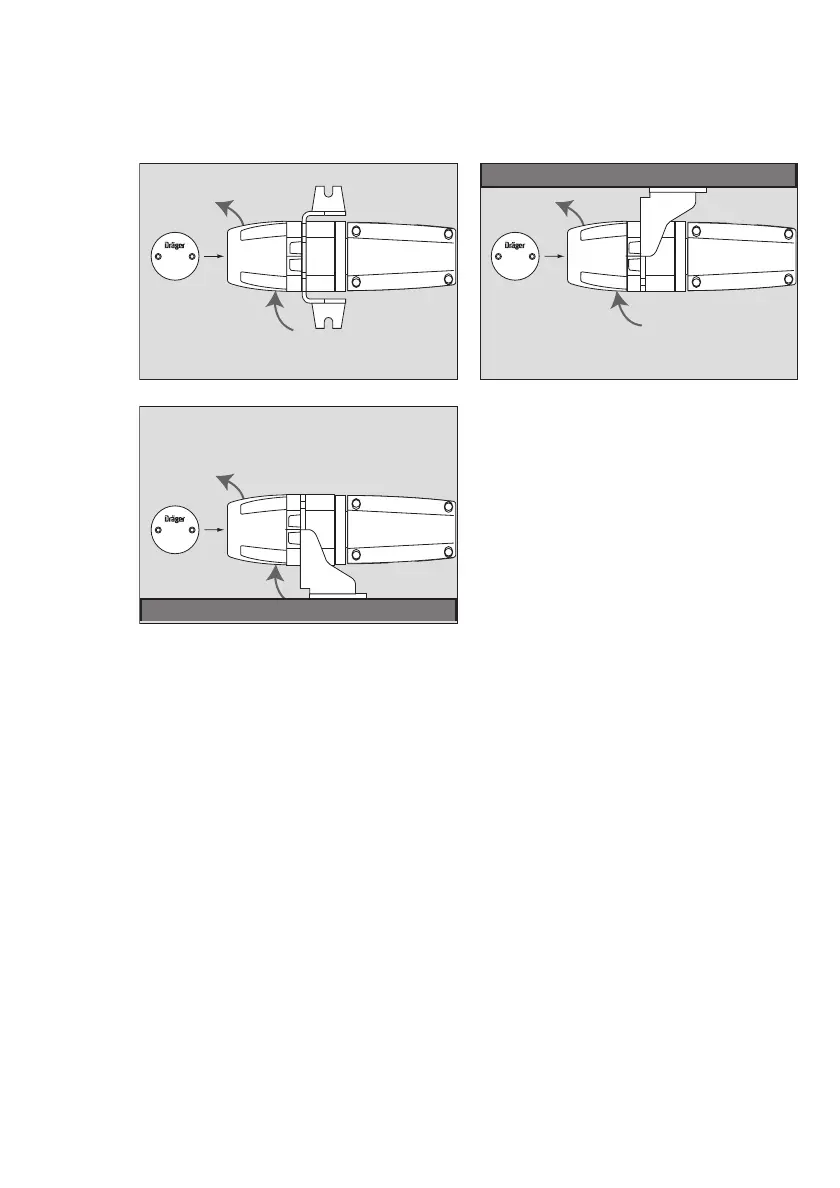

Wall mounting: Ceiling mounting:
Floor mounting:
1 Measured gas inlet 2 Measured gas outlet
2
01323886_01.eps
1
1
2
01423886_01.eps
03523886_01.eps
2
1
