Dräger PIR 7000 Technical Handbook

67
Faults, Cause and Remedy
The gas transmitter provides detailed information about possible errors which can be read out
via the Dräger CC-Vision GDS Software.

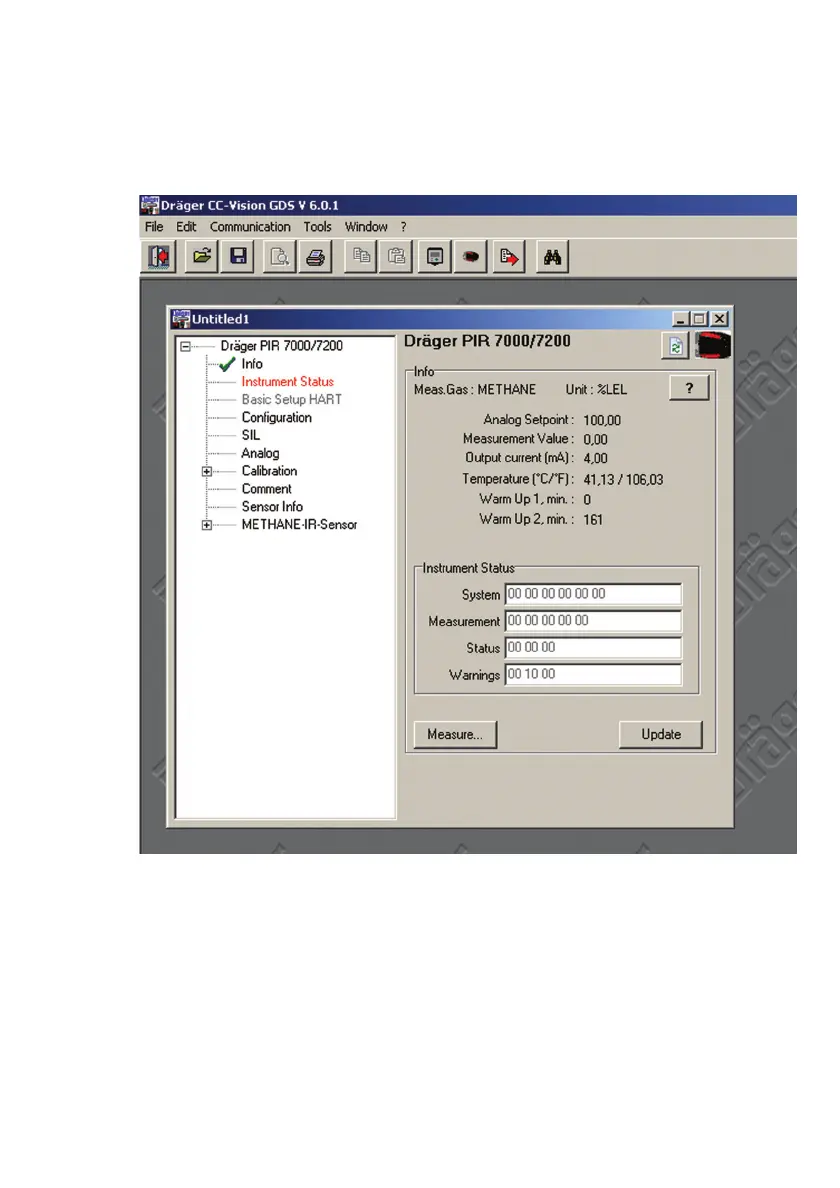

Information in the "Info" menu:
The structure of the error information (error code) is as follows:
In case no error is present, all values are set to "0", i.e. the error byte looks as follows:
(6 byte system error) (5 byte measurement
error)
(3 byte status) (3 byte warnings)
(00 00 00 00 00 00) (00 00 00 00 00) (00 00 00) (00 00 00)
System error Measurement error Status Warnings
06123886_01_en.eps

Dräger PIR 7000 Specifications

General

Detection Principle	Infrared (IR)
Pressure Range	700 to 1300 hPa
Ingress Protection	IP66/67
Gases Detected	Hydrocarbons
Measurement Range	0 - 100 %LEL (Lower Explosive Limit) or 0 - 100 vol.%
Operating Temperature	-40 to +65 °C
Output Signal	4-20 mA
Housing Material	Stainless steel
Certifications	ATEX, IECEx, UL, CSA
Response Time	t90 ≤ 4 s
