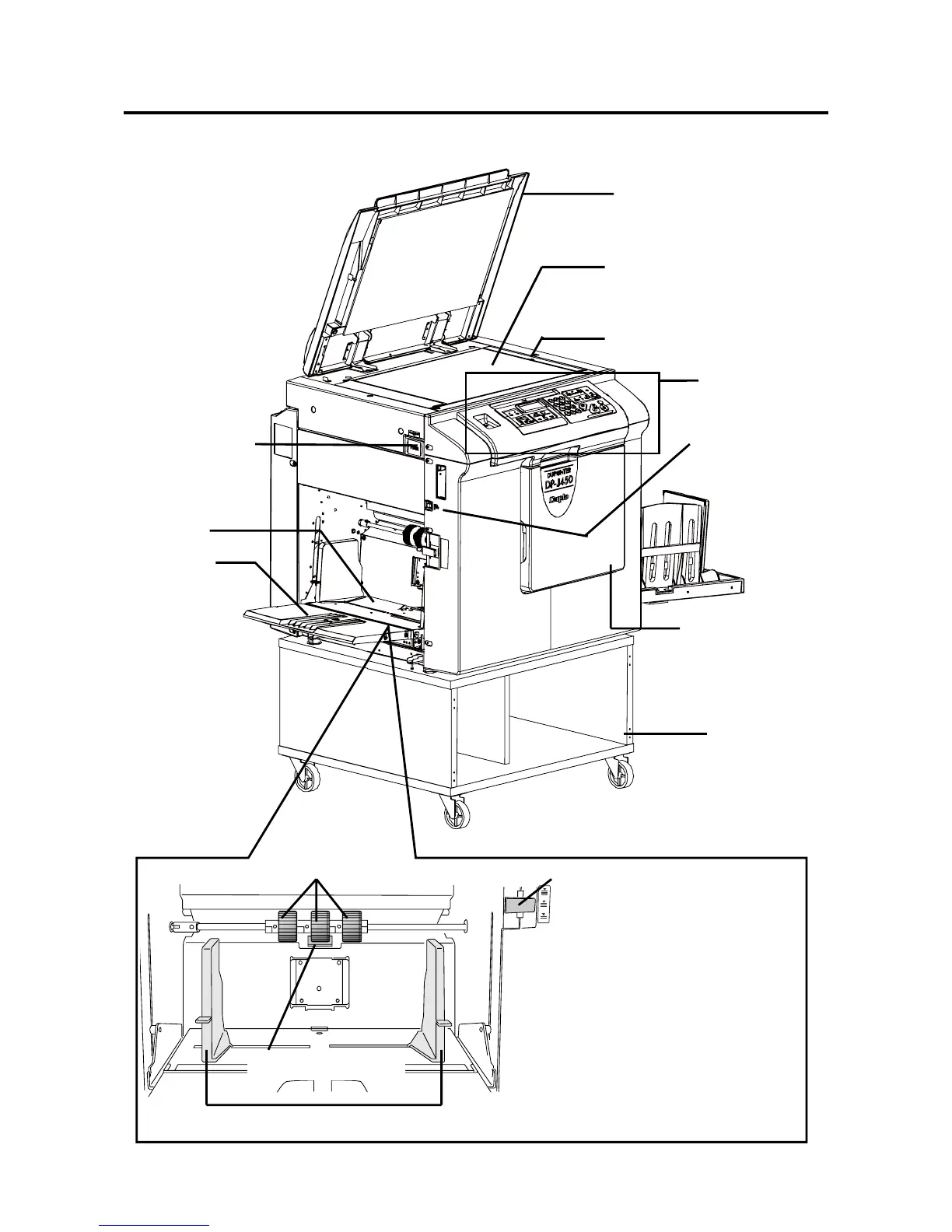

■ Part Names and Their Functions
● Printer Appearance (including options)
Scanner cover
Keeps the document in contac
t
with the document glass plate.
Glass
The document is placed on
this glass.
Scale
Control panel
Feed tray
Support
tray
Scanner open
button
Front cover
Open this cover t
o
replace the ink pack and
drum unit.
Cabinet
Feed tray descend
switch
Press to lower th
e
feed tray.
Paper feed roller
Pa
p
er se
p
arator
Side guides
Feed pressure adjuster lever
Use to adjust paper feed
pressure.
