2-3
Chapter 2 Operations

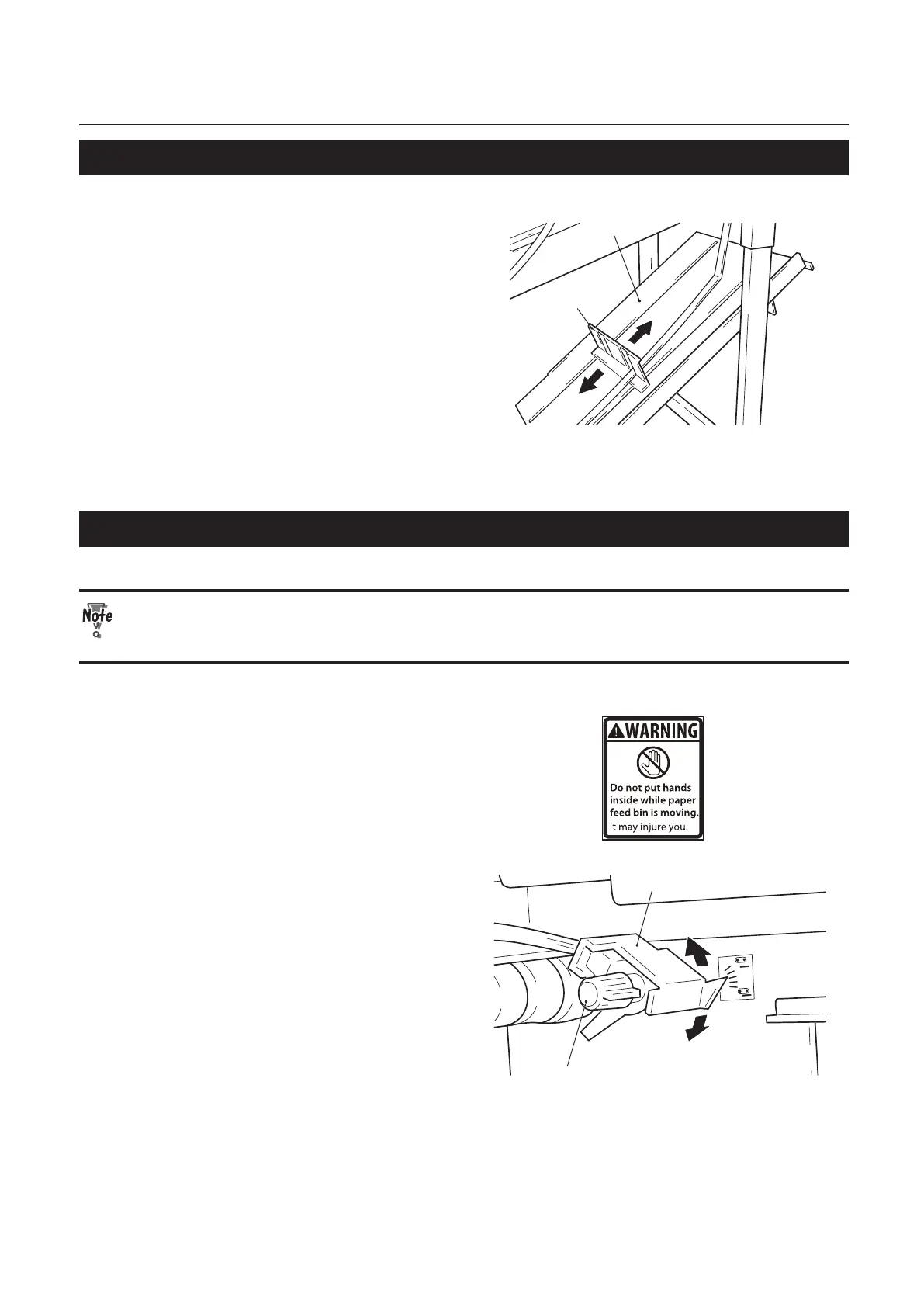

3-2. Adjusting the Position of the Reject Tray Stopper
Stopper
Reject tray
Move the position of the reject tray
stopper according to the paper size.
3-3. Adjusting the Height of the Level Sensor
Make sure not to insert your hands inside the paper feed tray while the suction belt or
conveyance shaft is driving.
Otherwise injuries may occur.
Adjust the height of the level sensor.
Level sensor
Level sensor adjusting knob
• The standard position of the level sensor is
at the second to third from the bottom of
the scale.
• When the level sensor adjusting knob is set
to the lower arrow side, the paper feeding
position rises. When set to the upper arrow
side, it lowers.
• When mis-feeding occurs frequently such
as in the feeding of thick paper, adjust to
the lower arrow side.
If double-feeding occurs frequently such as
in the feeding of thin paper, adjust to the
upper arrow side.
To Next Page
