2-11
Chapter 2 Operations

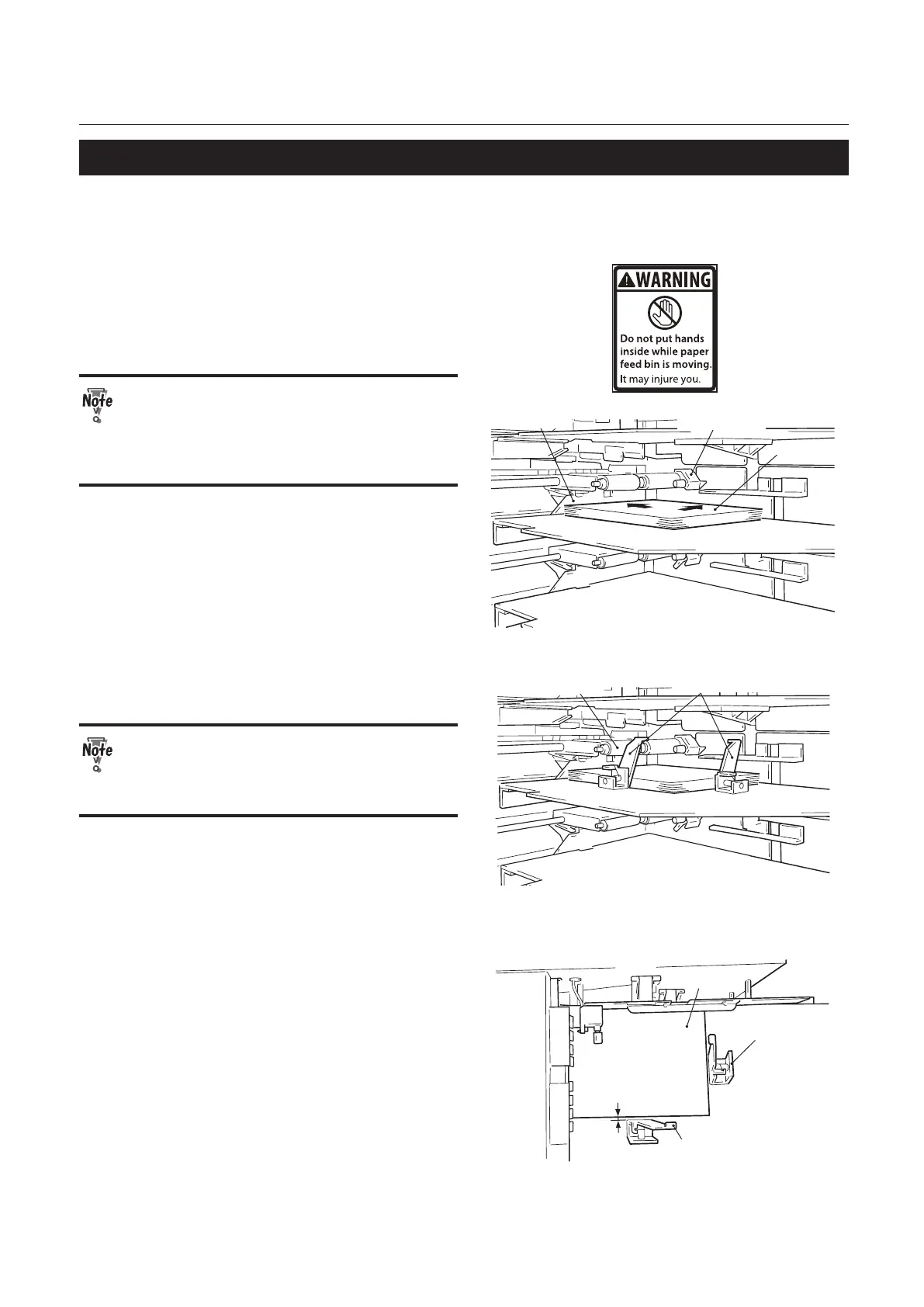

4-5 Using the Paper Guide
The paper loading direction diers according to the paper ejection direction, block mode, and processing
mode.
For further details, refer to the instruction manual of the PC CONTROLLER (optional).
Paper
Level sensor
Shutter
1
Load paper on the paper feed tray.
Align the leading edge of the paper and load
until it presses against the shutter lightly.
When loading paper on the paper feed tray,
make sure that the paper does not hit the
level sensor.
(Be sure not to load the paper exceeding 65
mm/2.56 inches high.)
Suction belt
Paper guides
2
Press the paper guides against the front
and right side of the paper lightly.
Do not place the paper guide below the
suction belt. Otherwise the paper guide
will lift up the suction belt and cause the
machine to stop.
Paper guide
1 mm
0.04 inch
Paper
Paper guide
• When the paper is less than 180 mm/7.09
inches wide and thick (more than 127 g/
m
2
), leave a space of about 1 mm/0.04 inch
between the paper guide in front and the
paper.
To Next Page
