10 | Channel setup menu 4
100
D-ISC 100 x xx2
○
For maintenance purposes, a module has been disconnec-
ted from the DISC Modbus
-> Loss of communication with the module. ->Status: [
Offline]
○
Maintenance work has resulted in another module (inserted
in the same slot) being connected to the DISC Modbus ->
the other module supports different functions which are in-
compatible with the configured module. ->Status:
Other
device online]
○
For maintenance purposed, a module has been disconnec-
ted from the DISC Modbus
No module is initially registered there. ->Status:
Not
available]
● The (actual) status of the module can be found in the channel
menu for the module.
10.1.3 [Messages] D−ISC100 (D)/Sensor (S)/Module (M)
Menu: 4.2.S1.2
Status: S1.3:Normal measurement
S1:D-R 220
\\Channel setup\Sensor (S)\S1
Status
Specific parameter
Assign source measuring values
Functions
Common parameter
Messages
E

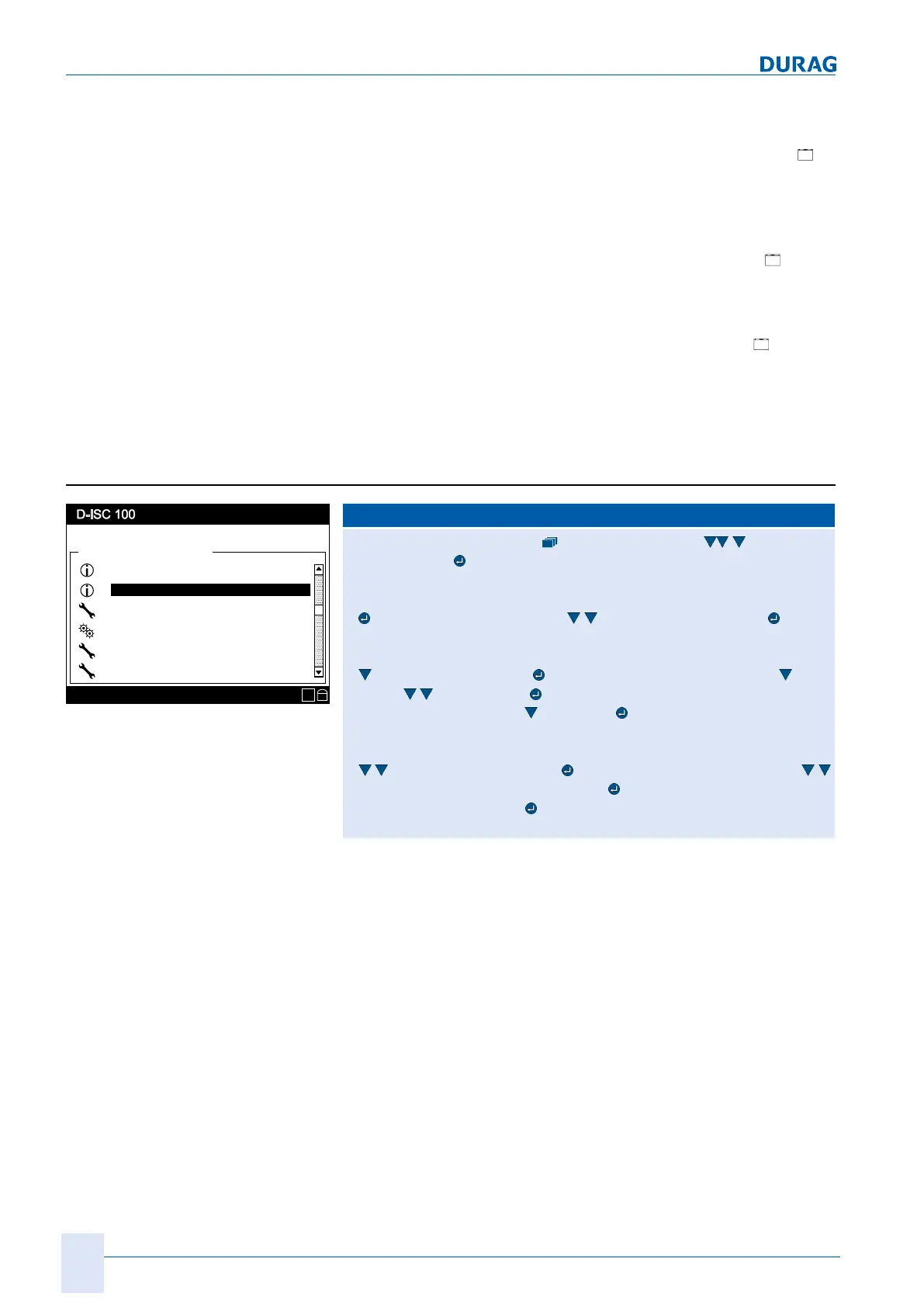

Fig.10.6: "Messages" channel menu
D‑ISC100 menu path:
Standard display (e.g. S1.1) User mode (menu1) Channel
setup (menu4)
=D−ISC100 (D) (MENU4.1):

−
Device status (menu 4.1.1) Messages (menu4.1.3)
=Messages (MENU4.1.3.0)
(
or also :)
−
Sensor (S) (menu 4.2) Add/remove sensor (menu 4.2.1) S1
D- … or
S2 D- … etc.
Status (menu4.2. S1…8) Messages
= Messages (MENU 4.2. S1.2…8.2)
(
or also :)
−
Modules (M) (menu 4.3) Software modules (menu 4.3.1)
AO0 Analogue output (menu 4.3.AO0)
Status (menu 4.3. AO0.1)
= Status (MENU 4.3. AO0.1.0) (example) …
The messages are divided into 4 categories, with the differentiat-
ing factors as set out in 12.1 System message categories [}137].
Depending on which menu has been selected, the messages
refer to theD‑ISC100, a module or a sensor. When the "Mes-
sages" menu is opened, the filter will initially be active (filter on;
see also Section 10.1 [Status and Messages] [] [}96] under "Fil-
ters").
