4.3.7 Expansion module Profibus DP
Installing and connecting the module in the D‑ISC100 housing.
The Profibus DP expansion module is factory-installed on the
right next to the main board as an external converter. The Mod-
bus RTU Slave software module is needed to connect the
Profibus DP module.
A'A
B B'
C

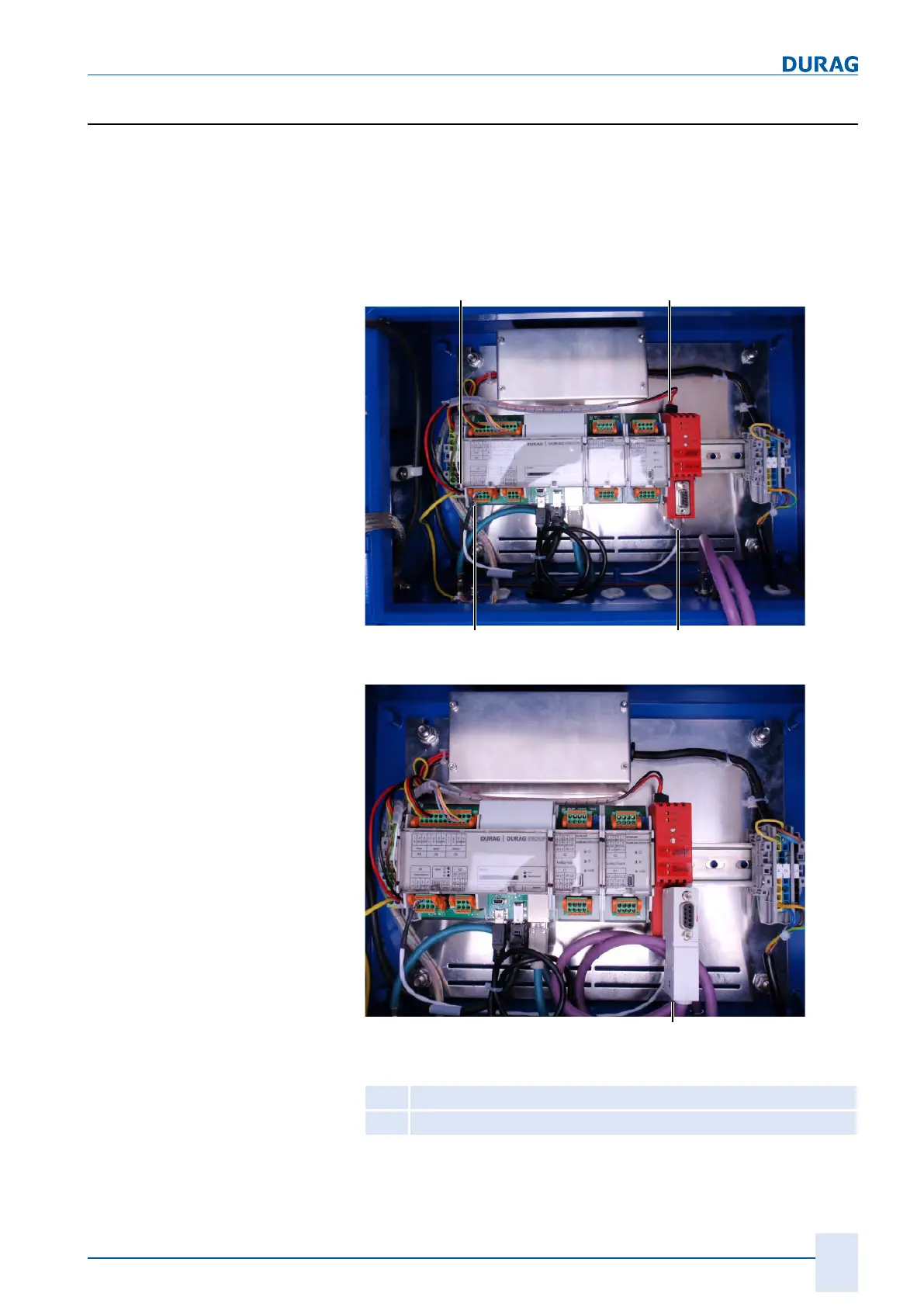

Fig.4.17: Connecting cable in the D-ISC 100 housing
A
ProfibusDP module; internal connecting cable 24V
B
ProfibusDP module; internal connecting cable for Modbus RTU
