5 Basic operation of the D-ISC 100
Prerequisite
● You have selected clear display language:
○
Language setting
(menu 3.2)−
[
System setup > Language]
○
see also Section 9.2 [Language] [}90].
● PIN protection is deactivated (symbol in the status bar) or
enabled:
○
Login
(menu 6) – [
Login / Logout]
○
see 15.4 Example: Clearing the PIN protection (logging in)
[}159].
● You have selected the Expert mode [ Expert mode] for the
display of all menus and menu items:
○
User mode
(menu 1) – [
User mode]
○
see also Section 7.2 [User mode] menu 1 [}81].
Please note that the existence of certain screen displays is de-
pendent on the connected sensors and installed modules.
Control elements
The following items are incorporated into the device door/hous-
ing cover of the D‑ISC100:
● A
display
for measured values and settings.
● A
keypad
for the operation and parameterisation of the Uni-
versal control unit and connected units.
5.1 Keypad

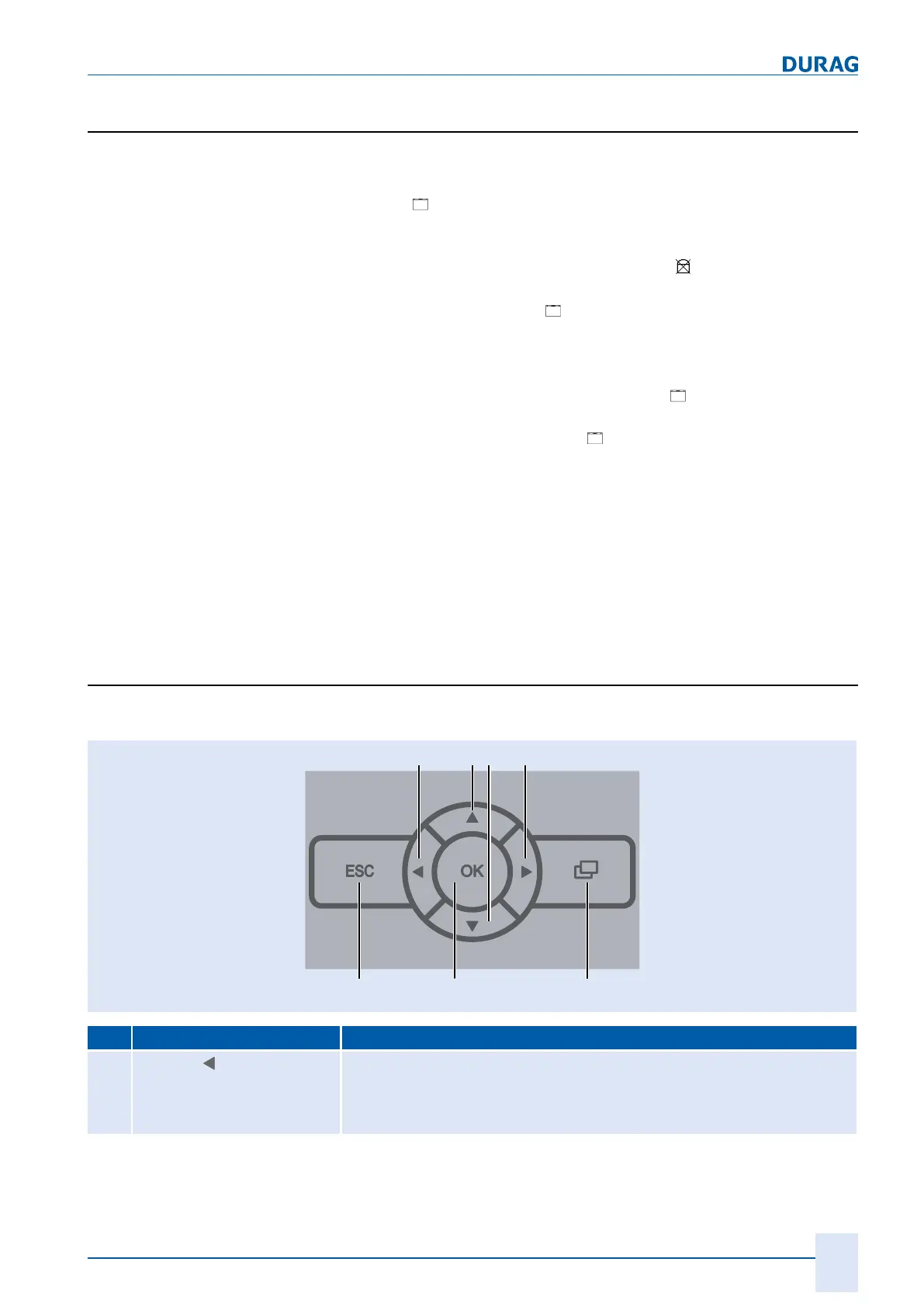

The keypad keys have the following functions:
21 22 23
24 25 26 27
No. Meaning Applies to (for example)
24 to the left ● for input: cursor position
● for a display (e.g. measured value): call up the preceding display
● in a list view: Check box OFF
● in the virtual keyboard: select character
