10 | Channel setup menu 4
D-ISC 100 x xx2
107
If you press the
key for "No", the process will be aborted and
the sensor will
not be deleted. In order to actually remove the
device, use the arrow key (
) to activate the "Yes" button, and
start the removal process with the
key.
10.3.2 S1...S8 (sensor name) e.g. D‑R320
● The channel menu/sensor menu is accessed by selecting this
menu item.
● From here, every menu structure is dynamic and depends
heavily on the assigned sensor type. However, the first menu
level of the sensor menus (4.2.Sx.n) has been structured as
uniformly as possible and variable status / messages / para-
meters / functions / ... are grouped under this level.
● The menu items listed from these levels can differ for each
sensor. It is possible for entire menus to be omitted or sub-
items to be removed or added depending on the sensor.
Sensor (S)
Status: S1.3:Normal measurement
Menu: 4.2.S1
Add / remove sensor Addr
Specific parameter
D-R 220 22
S1
S2
Sx
\\Channel setup\Sensor (S)
E

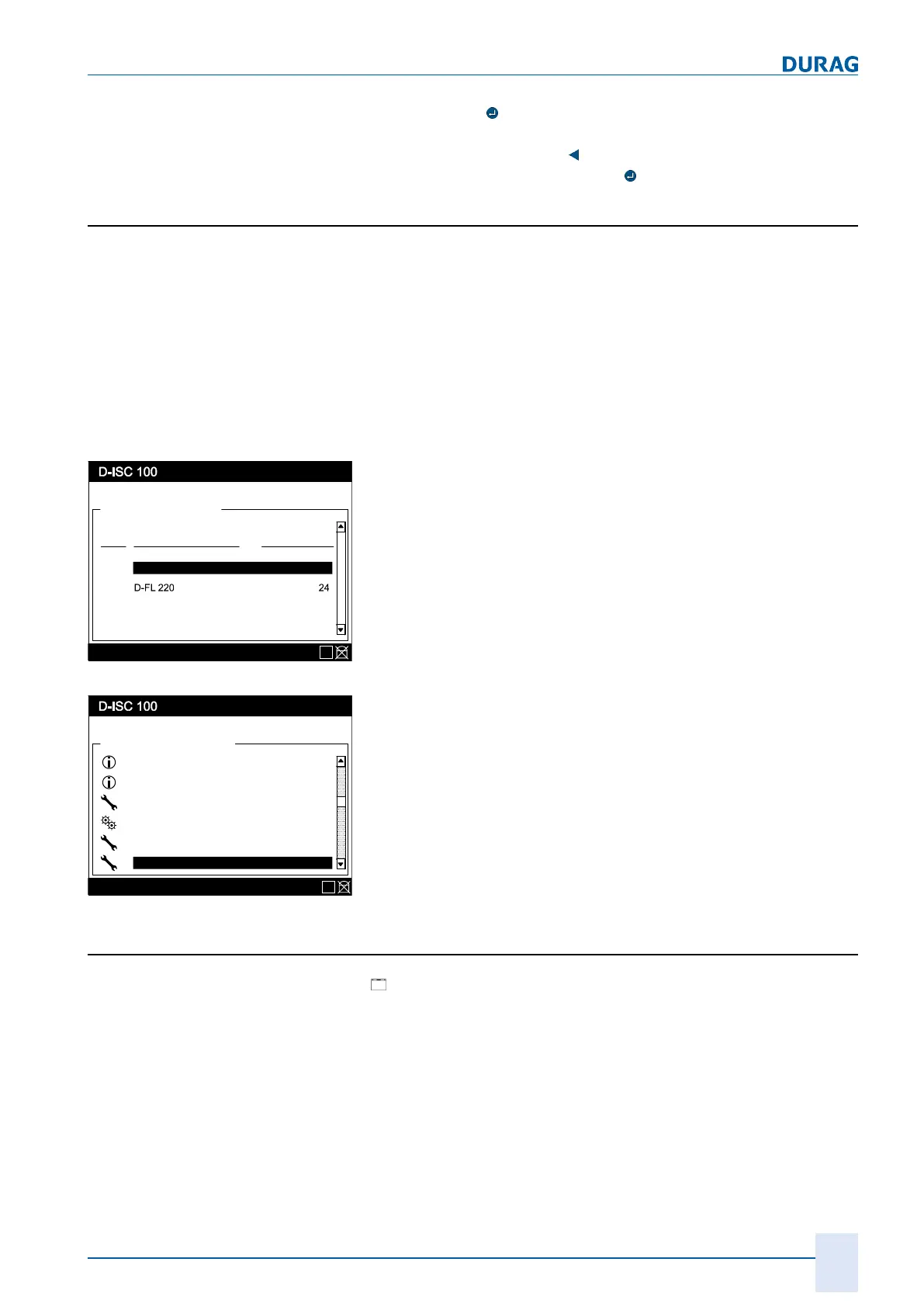

Fig.10.21: Menu: Sensor menu
Sensor number and sensor name in the illustration are simply in-
tended as examples and depend on the configuration and selec-
tion. The menu number here and below is 4.2.S1…
Status: S1.3:Normal measurement
Menu: 4.2.S1.6
S1:D-R 220
Status
Specific parameter
Assign measuring values
Functions
Common parameter
Messages
\\Channel setup\Sensor (S)\S1
E
Fig.10.22: Channel menu
Selecting this menu item takes you to the channel menu for the
selected sensor (see also 10 Channel setup menu 4 [}96]).
10.3.3 [Assign measuring values]
…to analogue output (AO):
[
Assign to analogue output (AO)]
● This menu item can be used to assign the respective sensor
channel to an analogue output. The sensor channel's meas-
ured value is then output on the selected analogue output in
accordance with the set signal range.
● Selecting the menu item opens a list that lists all of the ana-
logue outputs available in the system.
● If an analogue output is already assigned, this is indicated in
the list. If no assignment exists, "-" is displayed.
