10 | Channel setup menu 4
120
D-ISC 100 x xx2

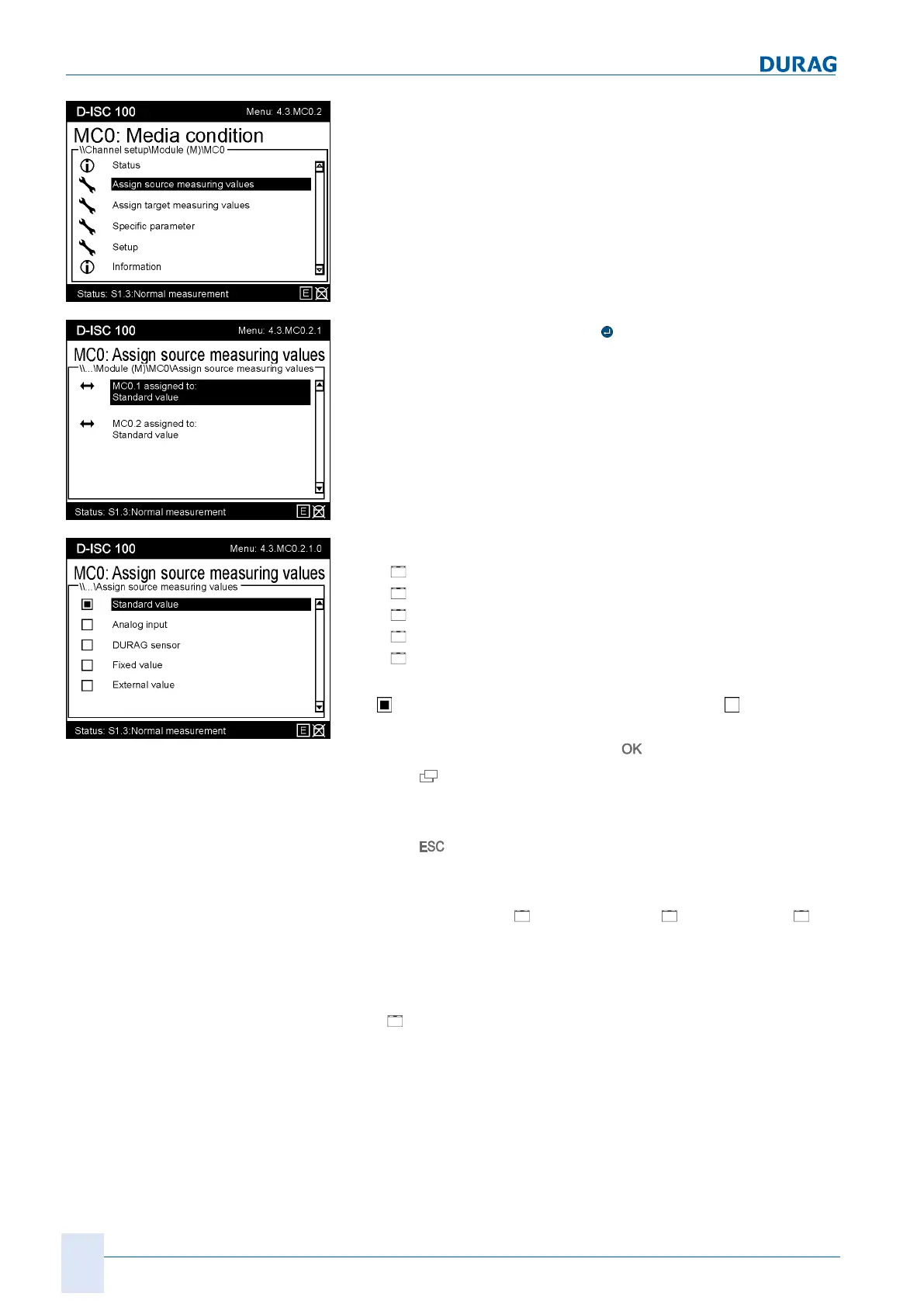

Fig.10.24: Media conditions
● This menu lists the 2 channels of the MC0 module with the
current assignment.
○
MC0.1 = Media temperature
○
MC0.2 = Media pressure
Fig.10.25: Source assignment
● Selecting one of the channels (
key) allows the source as-
signment to be established or changed.
Fig.10.26: Possible sources
● A selection list of possible sources is displayed:
○
[
Standard value]
○
[
Analogue input]
○
[
DURAG sensor]
○
[
Fixed value]
○
[
External value]
The symbol shows that the setting is active; the symbol
means "not active".
The setting can be changed with the
key.
Press the
key to exit the respective menu:
The change will be loaded into the permanent device memory on
return to the measured value/status display.
Press the
key to exit the menu:
The settings will
not
be saved.
● After selecting the [
standard value], [ fixed value] or [ ex-
ternal value], the screen returns to the higher-level menu and
the selected assignment is displayed. Additional settings may
be required in the specific parameters (e.g. setting the fixed
value).
● If [
"analogue input"] is selected, a sub-menu will appear
with a list of available analogue inputs. After selecting an ap-
propriate analogue input, the screen returns to the higher-
level menu and the selected assignment is displayed. Addi-
tional settings may be required in the specific parameters
(e.g. setting the signal range of the AI).
● If "DURAG sensor" is selected, a submenu appears with the
list of DURAG sensors connected to the system, which de-
liver an appropriate measuring signal. The adequacy of the
