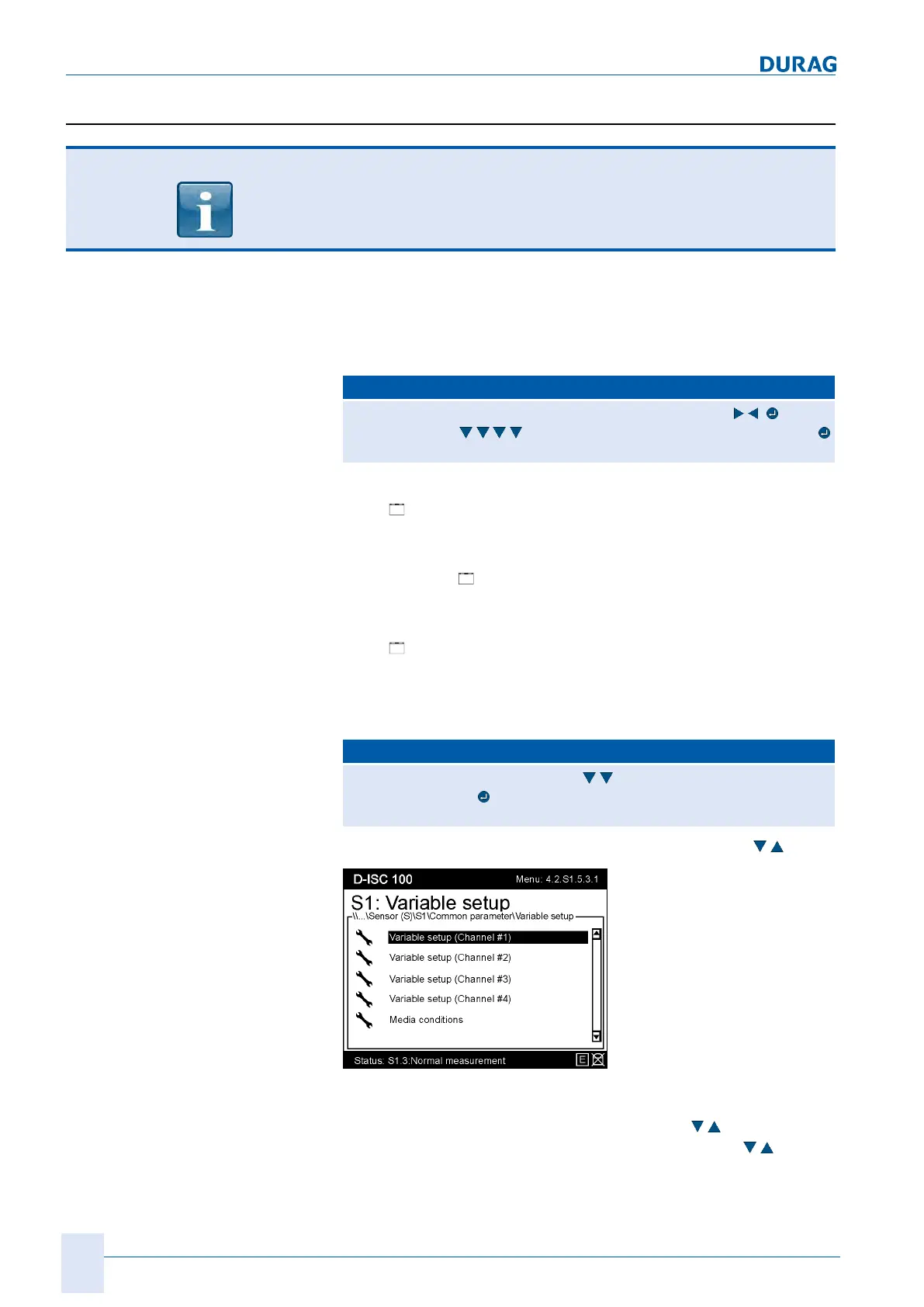

15 | Examples of settings
168
D-ISC 100 x xx2
15.8.1 Sensor: Common parameter
NOTICE
The parameters (also called "Common parameters") whose
settings are to be edited are (in certain cases) device-dependent
and the scope and content can vary between devices!
For the individual steps, proceed in accordance with the
D‑ISC100 menu path (for an explanation of this, see Section7.1
Navigation guide within this manual [}79]). Comments on the
settings are included in the appropriate text where necessary.
D‑ISC100 menu path:
Standard display (select the desired sensor if necessary ) (e.g.
menu4.2. S1.1)
Common parameter (e.g. menu4.2. S1.5)
= MENU4.2.S1.5.1
The ["
Device information
"] menu item allows the information
about the device (such as manufacturer, serial number etc.) to
be read.
Selecting the ["
Bus information
"] menu item allows the Modbus
settings (such as address, date/time, communication settings) to
be changed.
The ["
Variable setup
"] menu item allows the variables for the
individual measurement channels of the sensor to be set up.
For parameterisation of the measurement channel, select the
"Variable setup" menu item:
D‑ISC100 menu path:
Current display: MENU4.2.S1.5.1 Variable setup
(menu4.2. S1.5.3)
= MENU4.2.S1.5.3.1
Select the measurement channel to be parameterised
:
Fig.15.20: Menu 4.2.S1.5.3.1 (example)
Setting the parameters displayed in the menu
:
As required; underneath the displayed and selected (
) para-
meter.
