DURAG D-ISC 100 P 2 User Manual

7 | Main menu
80
D-ISC 100 x xx2
D‑ISC100 menu path:
Standard display (e.g. S1.1) User mode (menu1) Display setup
(menu2)
Measurement display after system start (menu2.2)
Type and option (menu2.2.3) =
Setup display type and option MENU 2.2.3
The menu name is displayed in the bottom line (in the box at the
top -
in this example: Setup Display Type and Option) and the
unique menu address of the line -
in this example: MENU 2.2.3 –
located in the header bar at the top right-hand side of the Univer-
sal control unit display).
The entry is to be interpreted as follows:
Specific parameter
Menu: 1
Status: S1.3:Normal measurement
Menu
\\
User mode
Specific parameter
Display setup
System setup
Channel setup
Login / Logout
:
:
:
:
:
:
:
About D-ISC 100
E
1.
Starting from the standard (measured value) display (top left),
press the screen key
to go to the menu in which the entry
"Display Setup" (menu2) can be found (top right).
2.
Use the downward arrow key (
) to mark the entry "Display
Setup", and select by pressing the
key.
3.
Use the downward arrow key (
) to move to the entry "Meas-
urement display after system start" (menu2.2). Confirm this
selection by pressing the
key.
4.
Pressing the downward arrow key (
 ) twice moves the cur-
rent selection to the "Types and Options" menu item
(menu2.2.3). Pressing
to confirm will take you back to the
target display ( takes you to the target display (also
menu2.2.3).
5.
In this example, the target display matches the figure below.

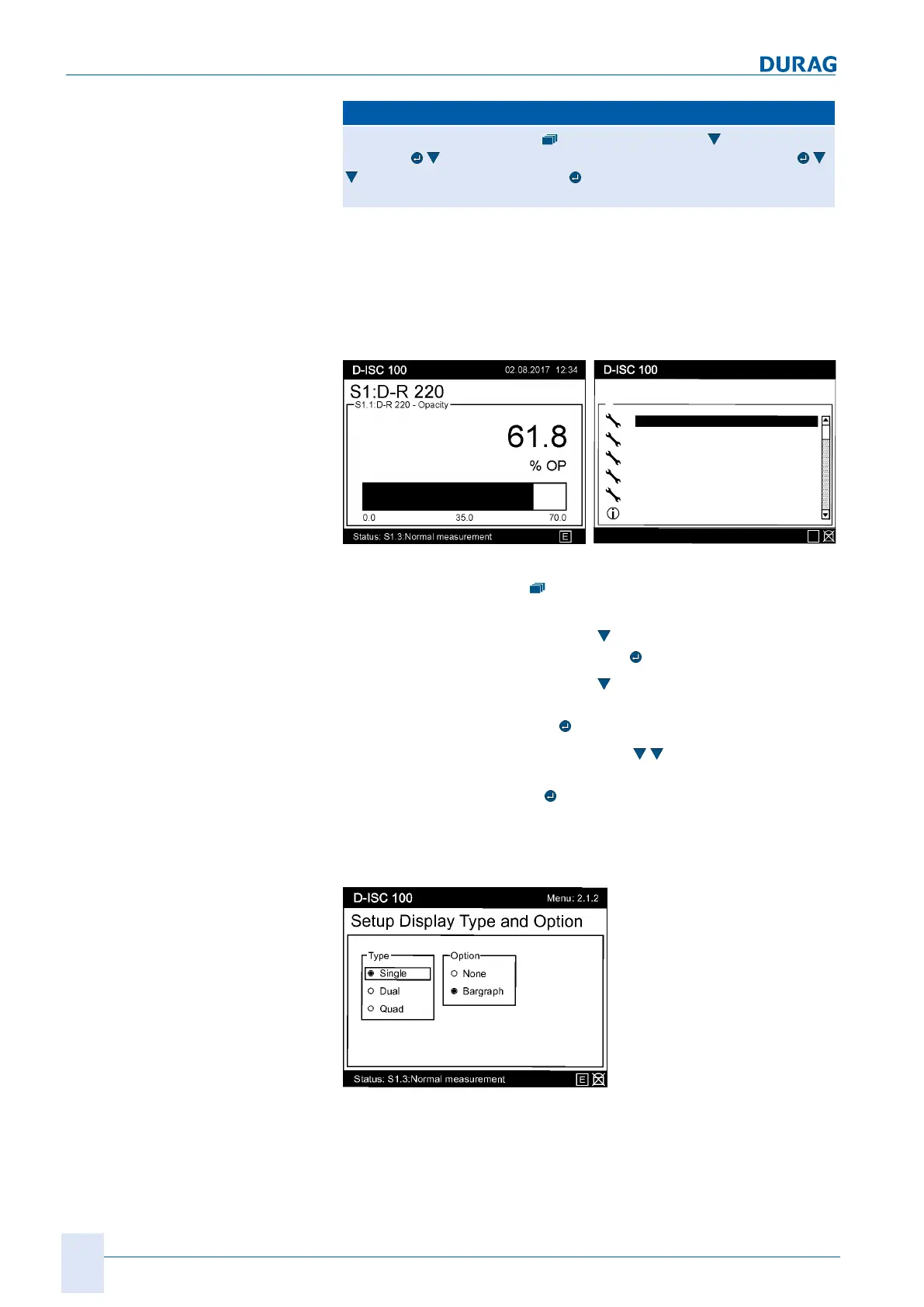

Fig.7.2: Example Display
