Additional equipment
230 Service Instructions 755 A/756 A - 00.0 - 02/2019

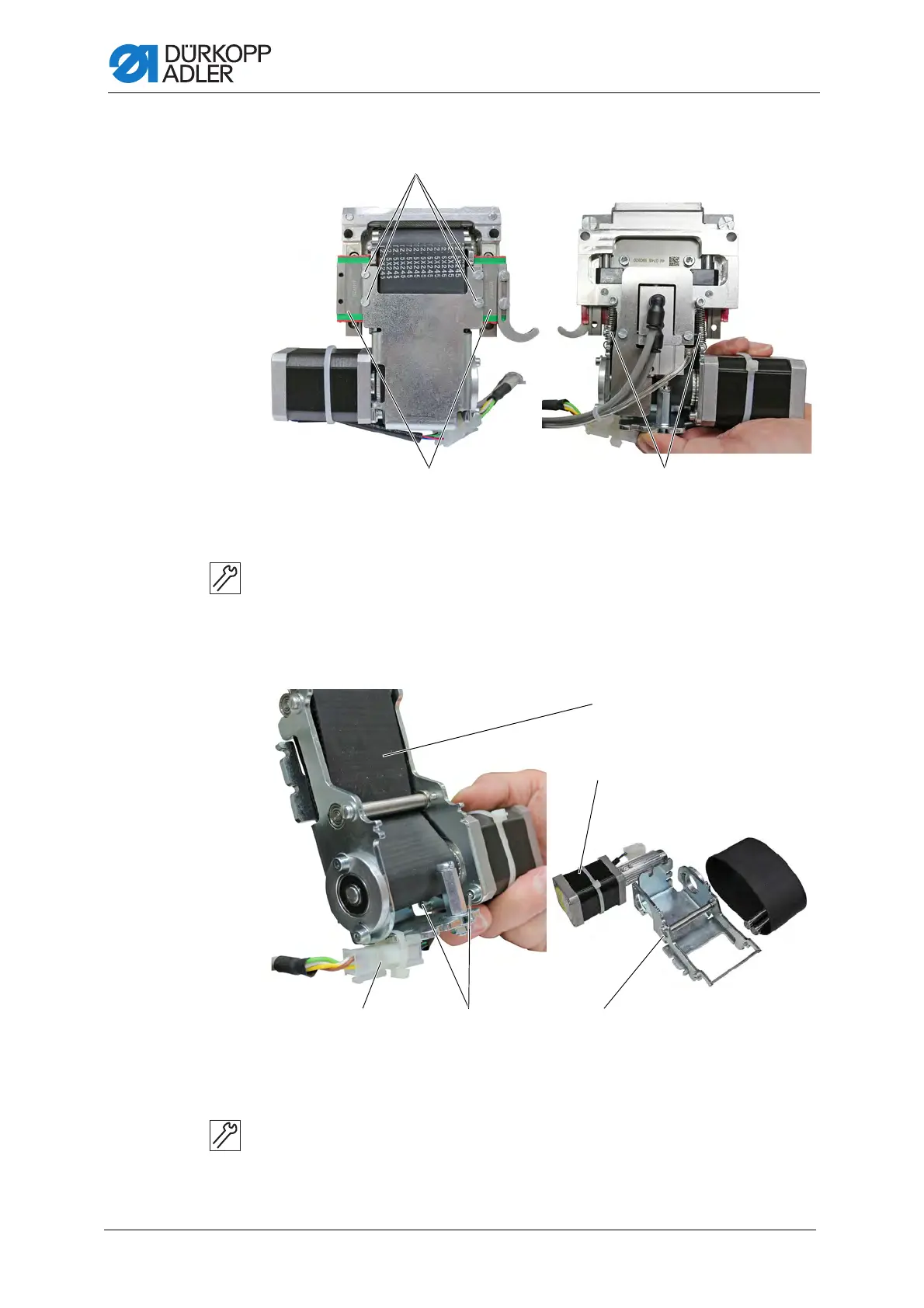

Fig. 226: Changing the conveyor belt (2)
5. Loosen the screws (3).
6. Loosen the springs (5) on the back of the tape feeder.
7. Dismantle the tape feeder.
Make sure the linear guides (4) do not slip off the holder.
Fig. 227: Changing the conveyor belt (3)
8. Loosen the screws (7) on the motor bracket (8).
9. Disconnect the plug (6).
(3) - Screws
(4) - Linear guides
(5) - Springs
(6) - Plug
(7) - Screws
(8) - Motor bracket
(9) - Motor
(10) - Conveyor belt
