Stacker

246 Service Instructions 755 A/756 A - 00.0 - 02/2019

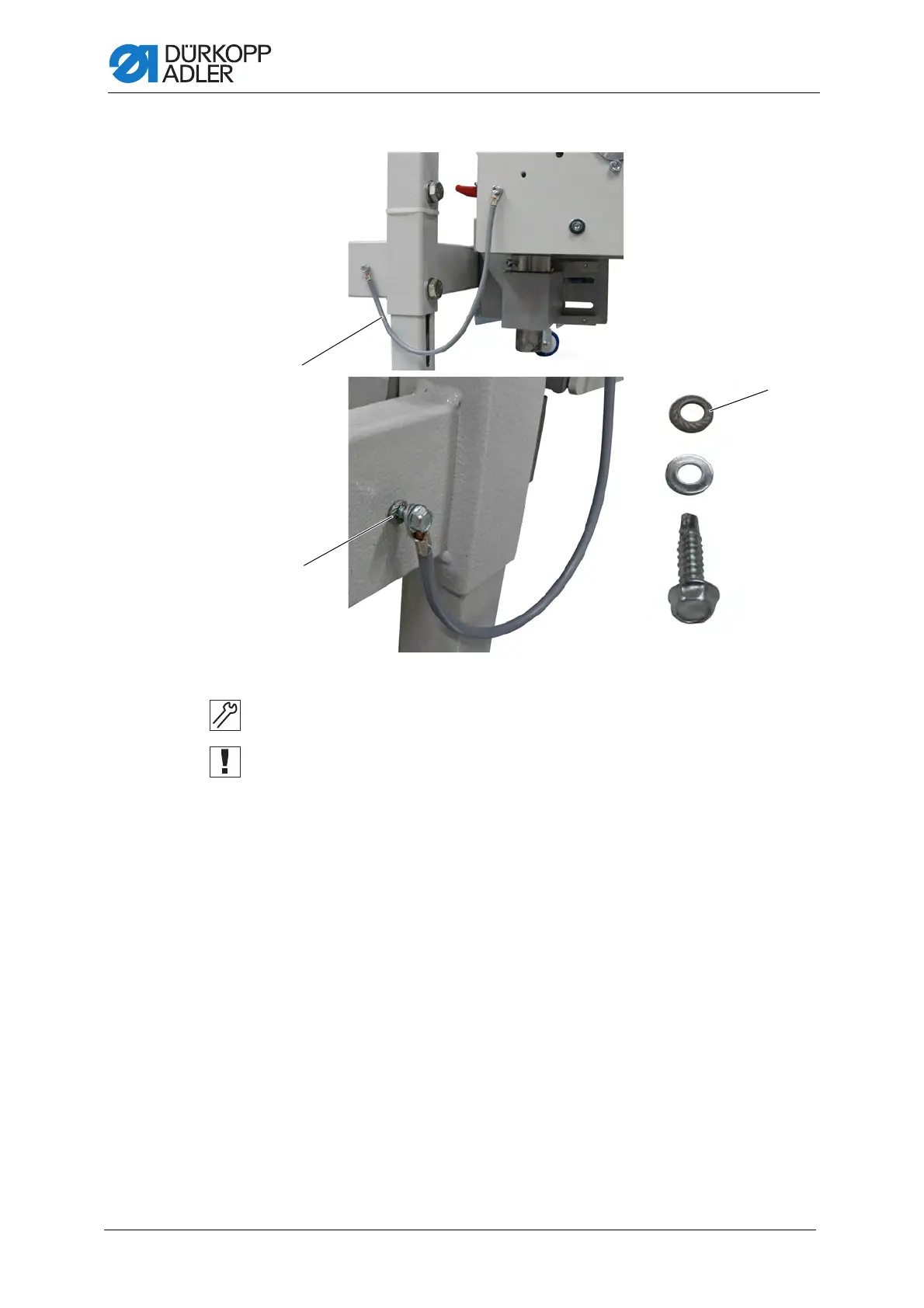

Fig. 240: Assembling the throw-over stacker (4)

10. Tighten the grounding wire (12) to the stand.

Important

The detent-edged washer (13) must be seated directly on the stand.

11. Swing in the throw-over stacker.

(12) - Grounding wire (13) - Detent-edged washer

⑬

⑫

⑬
