DURKOPP ADLER 756 A

Programming
Service Instructions 755 A/756 A - 00.0 - 02/2019 335
Select piping type

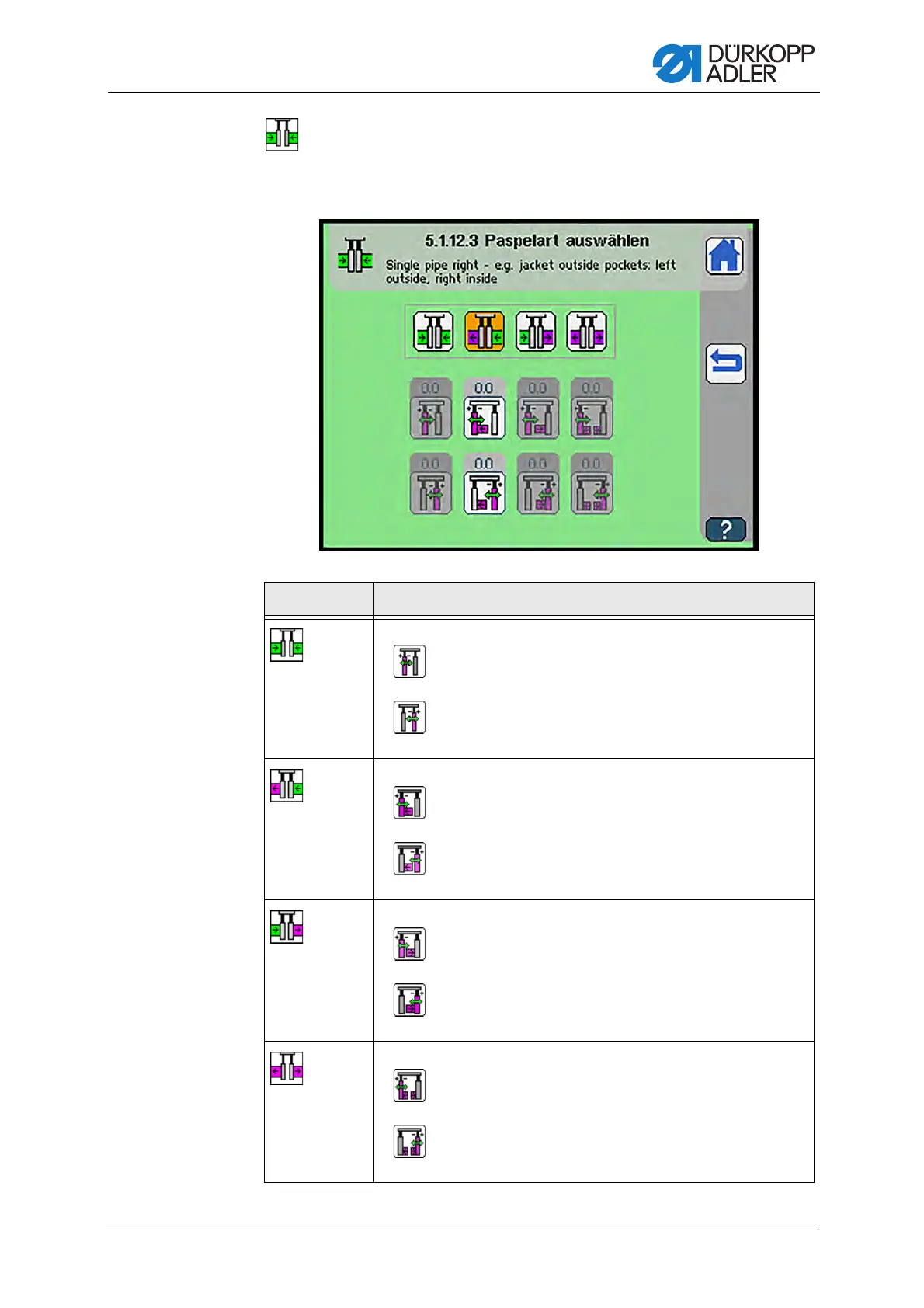

The display switches to Select piping type
Fig. 315: Select piping type
Symbols Meaning
Left in, right in (double pipe)
• Correction clamp left inside, double pipe
-9.9 mm - 9.9 mm
• Correction clamp right inside, double pipe
-9.9 mm - 9.9 mm
Left out, right in (single pipe left)
• Correction clamp left outside, single pipe left
-9.9 mm - 9.9 mm
• Correction clamp right inside, single pipe left
-9.9 mm - 9.9 mm
Left in, right out (single pipe right)
• Correction clamp left inside, single pipe right
-9.9 mm - 9.9 mm
• Correction clamp right outside, single pipe right
-9.9 mm - 9.9 mm
Left out, right out (custom applications)
• Correction clamp left outside
-9.9 mm - 9.9 mm
• Correction clamp right outside
-9.9 mm - 9.9 mm
