Programming

336 Service Instructions 755 A/756 A - 00.0 - 02/2019

To select the piping type:

1. Press the desired button.

2. Enter the desired value using the numeric keypad.

3. Confirm with OK.

Spread transport clamp

The display switches to Spread transport clamp.

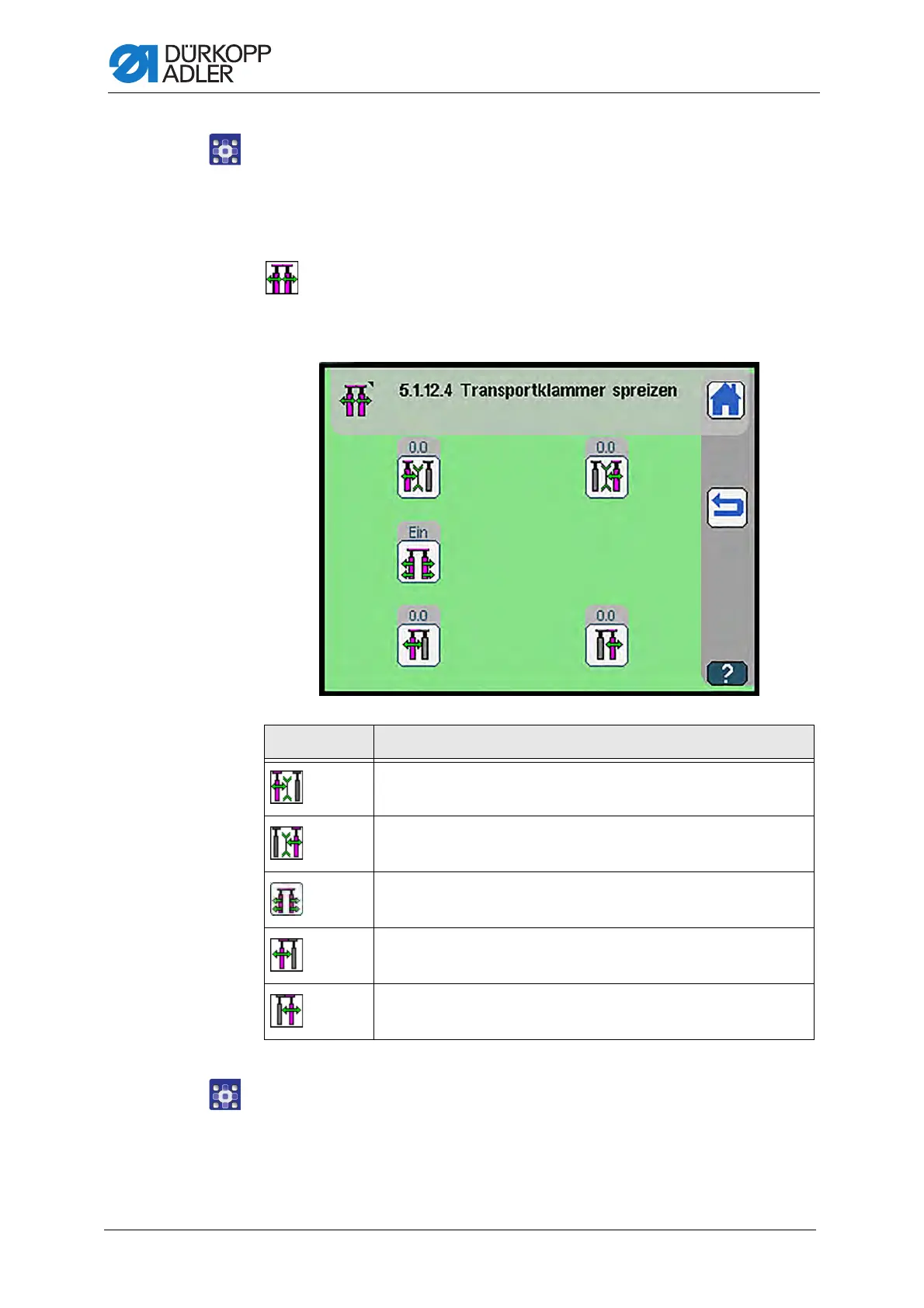

Fig. 316: Spread transport clamp

To spread the transport clamp:

1. Press the desired button.

2. Enter the desired value using the numeric keypad.

3. Confirm with OK.

Symbols Meaning

Correction value left before corner cut

• -1.0 mm - 1.0 mm

Correction value right before corner cut

-1.0 mm - 1.0 mm

Spread transport clamp On/Off

Spread clamp left before transport start

• -1.0 mm - 1.0 mm

Spread clamp right before transport start

• -1.0 mm - 1.0 mm
