Programming

Service Instructions 755 A/756 A - 00.0 - 02/2019 401

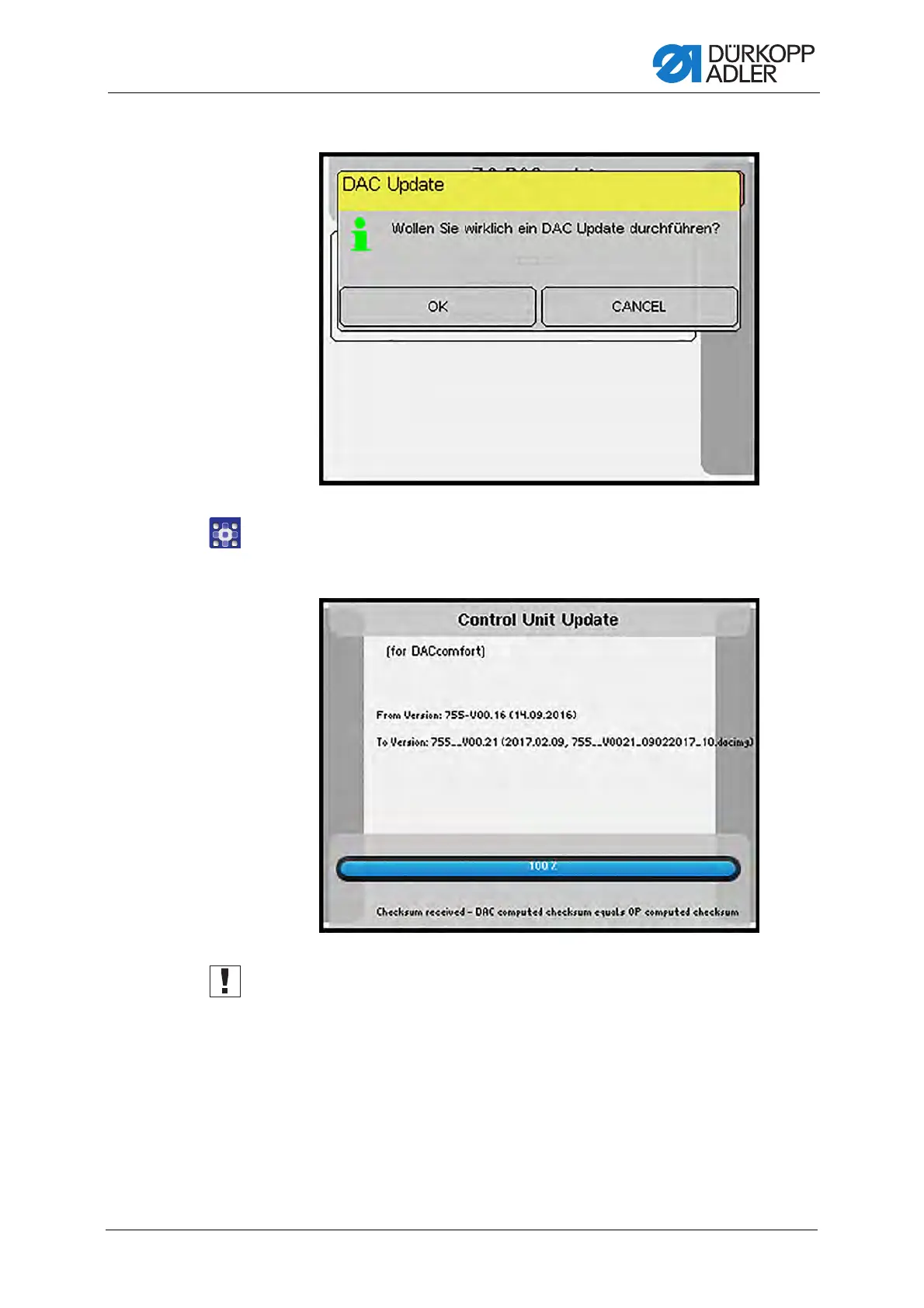

Fig. 367: DAC update (2)

2. Confirm with OK.

 The update is carried out.

Fig. 368: DAC update (3)

Important

Do not switch off the machine while the update is in progress!

 The display shows notice 8408: Waiting for Reset by machine.
