Service Instructions 755 A/756 A - 00.0 - 02/2019 409

RAM test

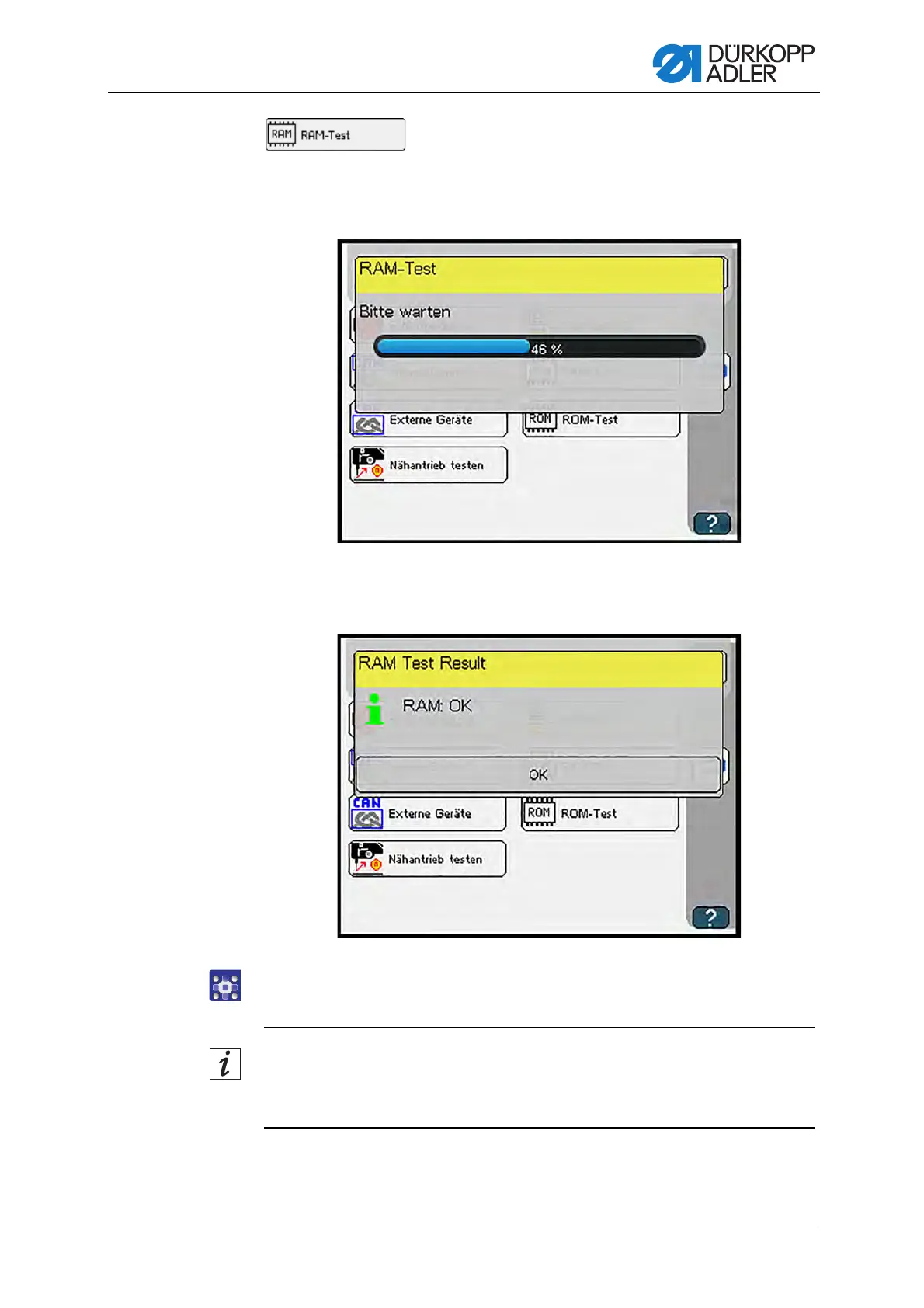

 The RAM test of the control is carried out. The progress of the test is

indicated by a progress bar

Fig. 374: RAM test (1).

 The test result is displayed.

Fig. 375: RAM test (2)

1. If the result is shown as OK, press OK to confirm.

 The display returns to Multi test.

Information

If the RAM test shows an error, back up your data and contact Customer

Service ( p. 451).
