Programming

Service Instructions 755 A/756 A - 00.0 - 02/2019 417

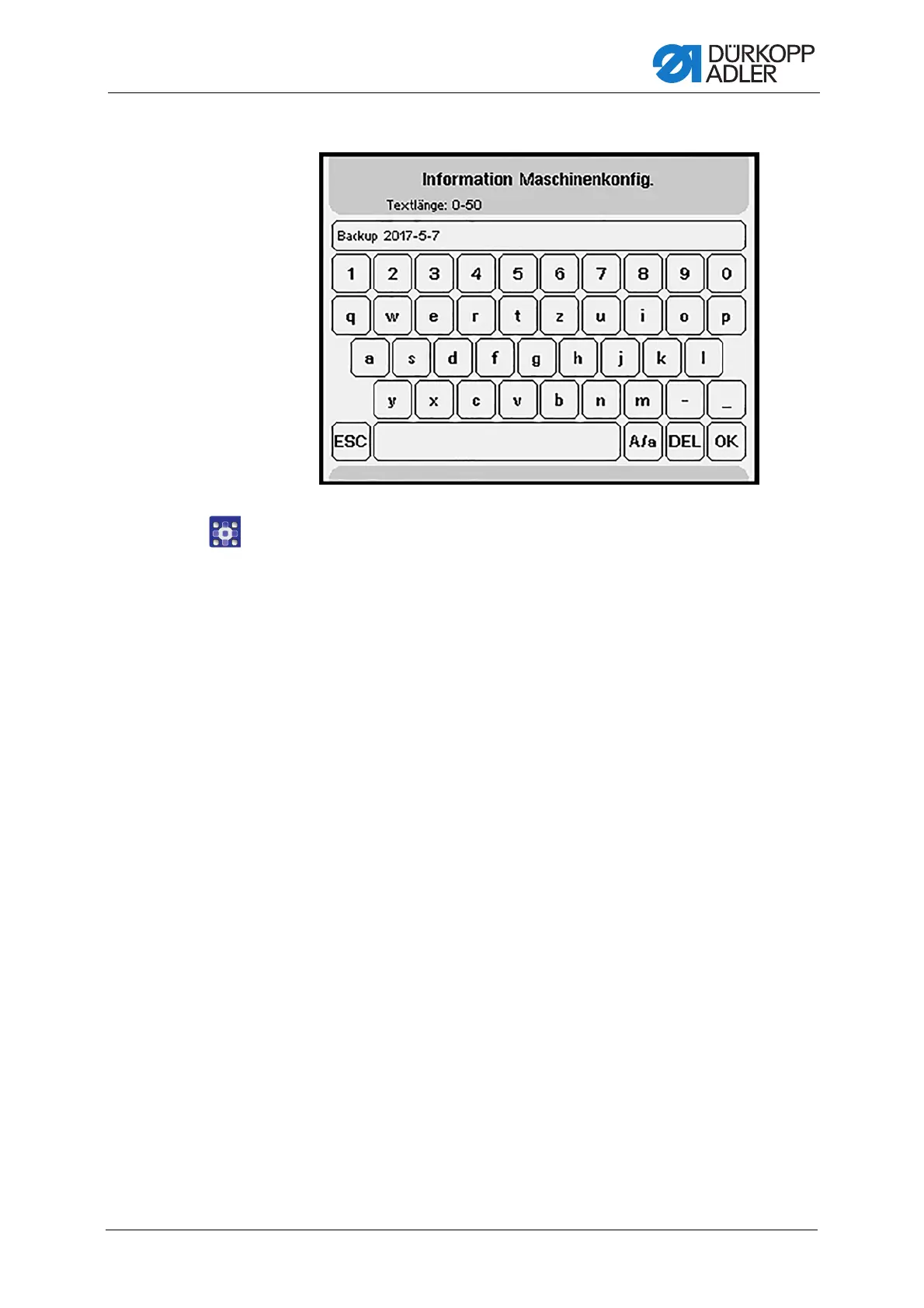

Fig. 382: Data transfer to USB (2)

3. You can use the keypad to enter an information text about the backup

file.

The information text is displayed again the next time the backup file is

loaded.

If you do not wish to enter an information text, press the ESC button.

4. Confirm with OK.

 The software checks the USB key.

The selected option is written to the USB key.

Depending on the amount of data selected, the process may

take anywhere from a few seconds to approx. 2 minutes.
